| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_026T01_9000004624_31648cztM0_level2.evt | modeM0/AS1T04_026T01_9000004624_31648cztM0_level2_quad_clean.evt |
| Size (bytes) | 798,785,280 | 89,297,280 |
| Size | 761.8 MB | 85.2 MB |
| Events in quadrant A | 6,439,908 | 521,703 |
| Events in quadrant B | 6,313,196 | 548,754 |
| Events in quadrant C | 4,213,031 | 544,571 |
| Events in quadrant D | 6,676,949 | 524,121 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24486 | 2 |
| B | 0 | 25079 | 2 |
| C | 0 | 17641 | 2 |
| D | 0 | 25570 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8119 | 1162 | 14.312107% |
| B | 8119 | 530 | 6.527898% |
| C | 8119 | 404 | 4.975982% |
| D | 8119 | 370 | 4.557211% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8429 | 8121 | 681 | 681 | 8.08% | 8.39% |  |
| B | 8429 | 8121 | 8 | 8 | 0.09% | 0.10% |  |
| C | 8429 | 8121 | 5 | 5 | 0.06% | 0.06% |  |
| D | 8429 | 8121 | 75 | 75 | 0.89% | 0.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1759306 | 8637.15 | 995 | 974 | 203.6 |
| A | 15 | 174 | 839472 | 4118.81 | 995 | 974 | 203.6 |
| A | 13 | 254 | 14530 | 66.59 | 995 | 974 | 203.6 |
| B | 6 | 159 | 2178809 | 10800.79 | 1010 | 984 | 201.6 |
| B | 10 | 245 | 111328 | 547.24 | 1010 | 984 | 201.6 |
| B | 0 | 190 | 33503 | 161.27 | 1010 | 984 | 201.6 |
| C | 14 | 238 | 158260 | 659.58 | 991 | 997 | 238.4 |
| C | 0 | 10 | 127917 | 532.31 | 991 | 997 | 238.4 |
| C | 2 | 114 | 19467 | 77.46 | 991 | 997 | 238.4 |
| D | 8 | 195 | 2450070 | 10226.29 | 995 | 967 | 239.5 |
| D | 11 | 176 | 336698 | 1401.85 | 995 | 967 | 239.5 |
| D | 2 | 250 | 91875 | 379.59 | 995 | 967 | 239.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

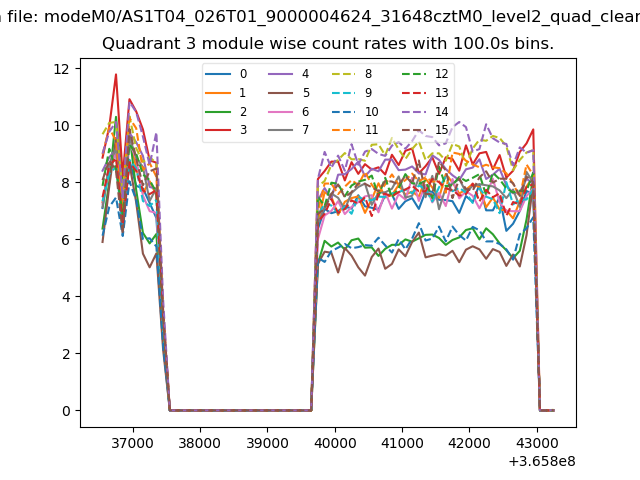

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

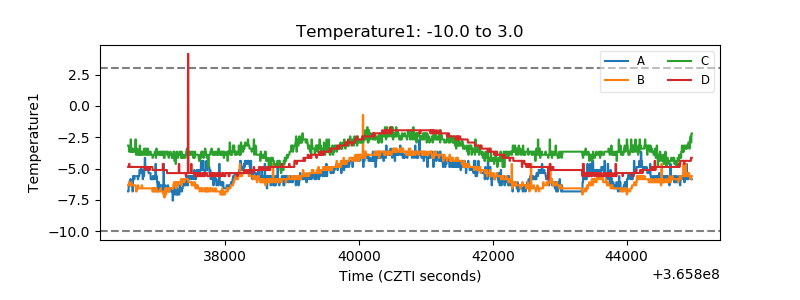

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

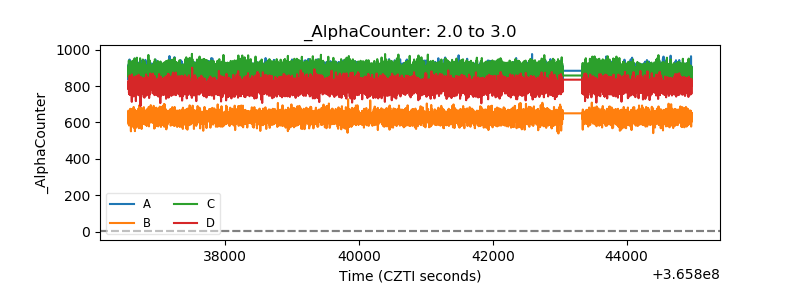

| Alpha Counter |  |
| _CPM_Rate |  |

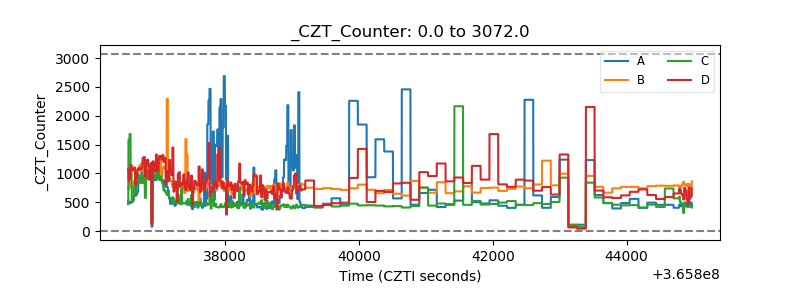

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

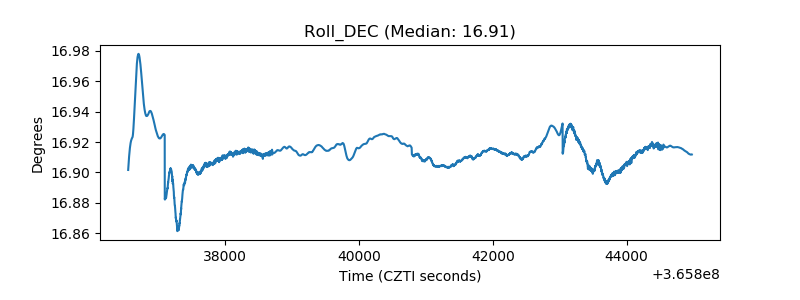

| _Roll_DEC |  |

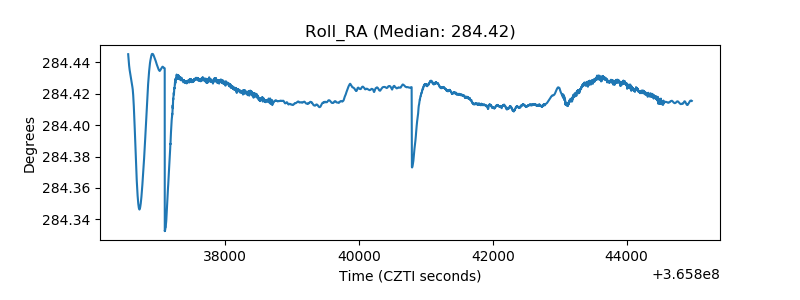

| _Roll_RA |  |

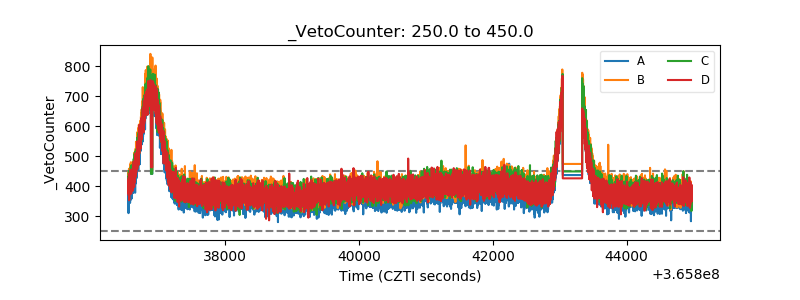

| Veto Counter |  |
