| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T13_9000004628_31684cztM0_level2.evt | modeM0/AS1A10_094T13_9000004628_31684cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,298,779,200 | 257,918,400 |
| Size | 1.2 GB | 246.0 MB |
| Events in quadrant A | 8,291,219 | 1,687,101 |
| Events in quadrant B | 12,065,082 | 1,702,677 |
| Events in quadrant C | 8,731,857 | 1,697,582 |
| Events in quadrant D | 9,202,691 | 1,657,695 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 314 | 0 |
| B | 0 | 314 | 0 |
| C | 0 | 314 | 0 |
| D | 0 | 314 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34733 | 2 |
| B | 0 | 48265 | 2 |
| C | 0 | 35332 | 2 |
| D | 0 | 37204 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15461 | 443 | 2.865274% |
| B | 15461 | 456 | 2.949356% |
| C | 15461 | 419 | 2.710045% |
| D | 15461 | 371 | 2.399586% |

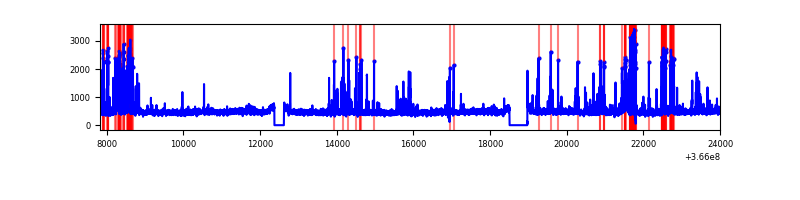

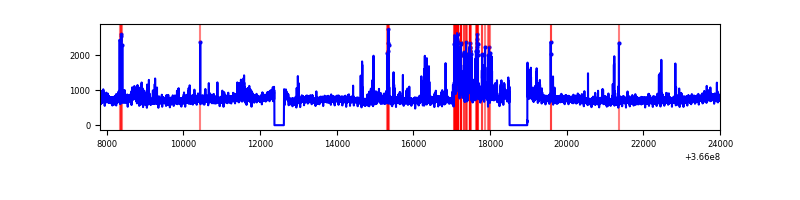

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16176 | 15463 | 192 | 192 | 1.19% | 1.24% |  |
| B | 16176 | 15463 | 98 | 98 | 0.61% | 0.63% |  |
| C | 16176 | 15463 | 59 | 59 | 0.36% | 0.38% |  |
| D | 16176 | 15463 | 254 | 254 | 1.57% | 1.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1323655 | 3689.21 | 1784 | 1743 | 358.3 |
| A | 4 | 48 | 47177 | 126.8 | 1784 | 1743 | 358.3 |
| A | 13 | 254 | 28462 | 74.57 | 1784 | 1743 | 358.3 |
| B | 6 | 159 | 4113096 | 12225.87 | 1775 | 1727 | 336.3 |
| B | 4 | 80 | 713231 | 2115.78 | 1775 | 1727 | 336.3 |
| B | 0 | 229 | 54893 | 158.1 | 1775 | 1727 | 336.3 |
| C | 3 | 233 | 1014247 | 2496.86 | 1739 | 1750 | 405.5 |
| C | 0 | 10 | 429436 | 1054.69 | 1739 | 1750 | 405.5 |
| C | 14 | 238 | 283410 | 694.58 | 1739 | 1750 | 405.5 |
| D | 8 | 195 | 1525603 | 3715.2 | 1742 | 1694 | 410.2 |
| D | 13 | 249 | 768868 | 1870.33 | 1742 | 1694 | 410.2 |
| D | 2 | 250 | 188699 | 455.91 | 1742 | 1694 | 410.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

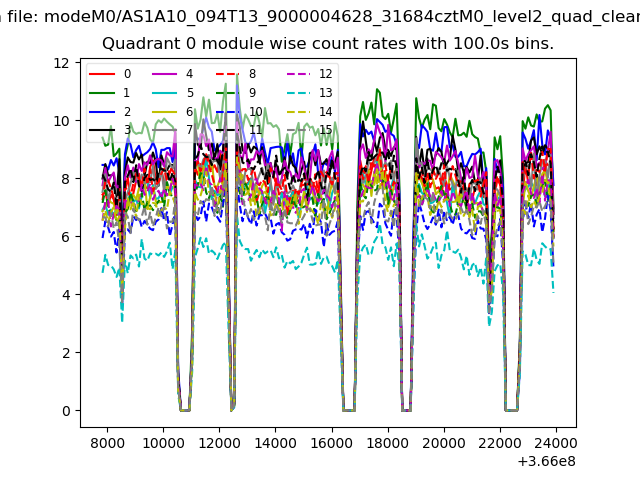

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

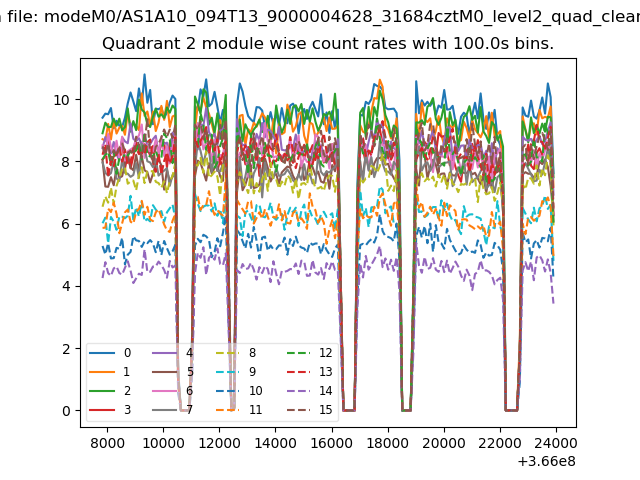

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

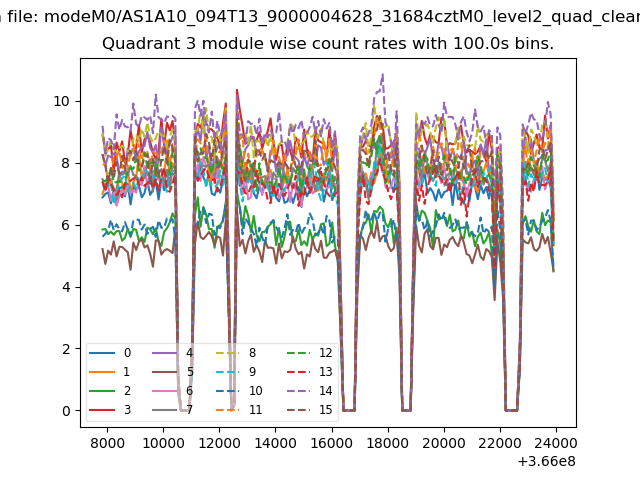

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

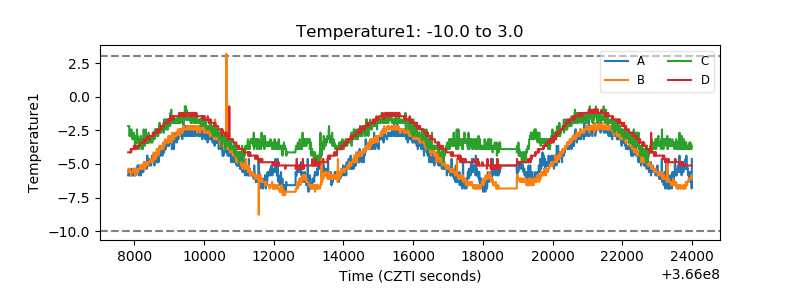

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

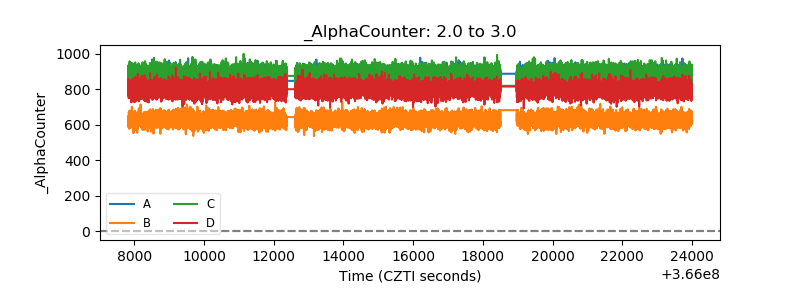

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

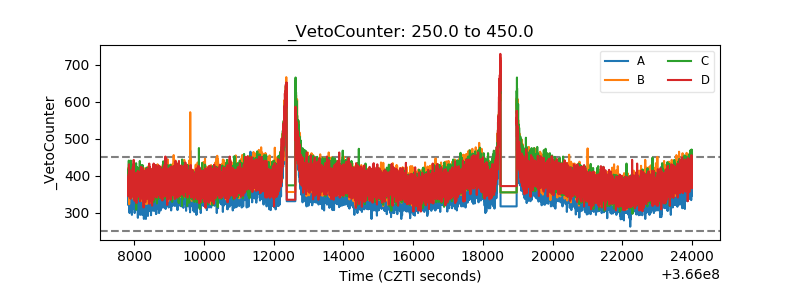

| Veto Counter |  |
