| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T09_9000004630_31685cztM0_level2.evt | modeM0/AS1A10_103T09_9000004630_31685cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,499,135,040 | 249,324,480 |
| Size | 1.4 GB | 237.8 MB |
| Events in quadrant A | 7,927,293 | 1,699,675 |
| Events in quadrant B | 13,923,995 | 1,655,147 |
| Events in quadrant C | 13,633,675 | 1,552,767 |
| Events in quadrant D | 8,880,894 | 1,581,095 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33577 | 3 |
| B | 0 | 51850 | 3 |
| C | 0 | 51183 | 3 |
| D | 0 | 36532 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 314 | 0 |
| B | 0 | 314 | 0 |
| C | 0 | 314 | 0 |
| D | 0 | 314 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15405 | 204 | 1.324245% |
| B | 15406 | 740 | 4.803323% |
| C | 15405 | 1091 | 7.082116% |
| D | 15405 | 236 | 1.531970% |

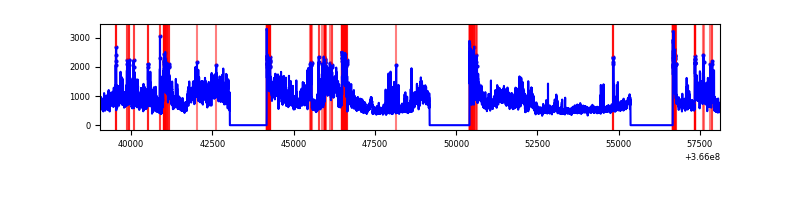

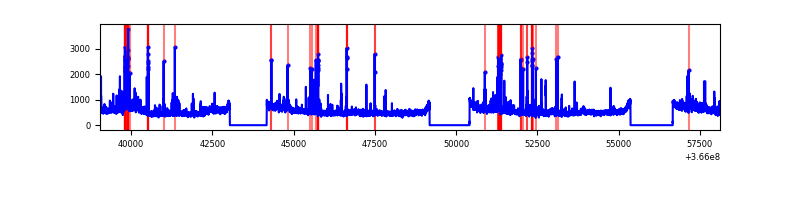

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19069 | 15407 | 0 | 0 | 0.00% | 0.00% |  |
| B | 19071 | 15409 | 339 | 339 | 1.78% | 2.20% |  |
| C | 19070 | 15408 | 320 | 320 | 1.68% | 2.08% |  |
| D | 19070 | 15408 | 81 | 81 | 0.42% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 93959 | 229.25 | 2022 | 1990 | 401.2 |
| A | 13 | 254 | 30221 | 70.37 | 2022 | 1990 | 401.2 |
| A | 3 | 137 | 19178 | 42.84 | 2022 | 1990 | 401.2 |
| B | 6 | 159 | 4260255 | 11668.08 | 1966 | 1924 | 365.0 |
| B | 10 | 245 | 831129 | 2272.07 | 1966 | 1924 | 365.0 |
| B | 4 | 80 | 435883 | 1189.07 | 1966 | 1924 | 365.0 |
| C | 3 | 233 | 5297166 | 12349.65 | 1855 | 1865 | 428.8 |
| C | 0 | 10 | 632148 | 1469.94 | 1855 | 1865 | 428.8 |
| C | 14 | 238 | 303339 | 703.09 | 1855 | 1865 | 428.8 |
| D | 8 | 195 | 1045078 | 2308.94 | 1928 | 1880 | 451.8 |
| D | 13 | 249 | 298012 | 655.44 | 1928 | 1880 | 451.8 |
| D | 2 | 234 | 75310 | 162.52 | 1928 | 1880 | 451.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

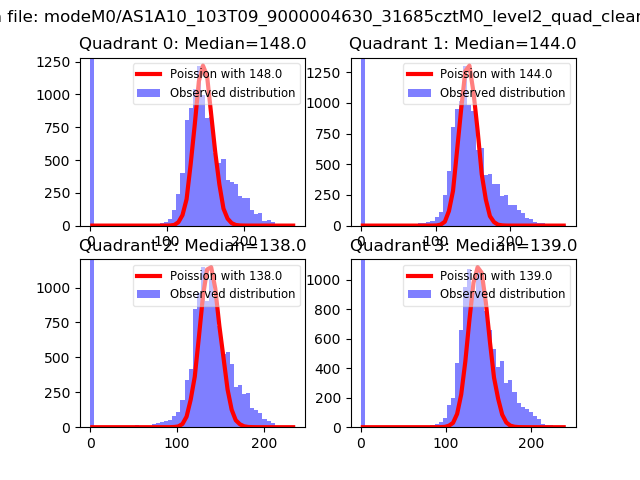

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

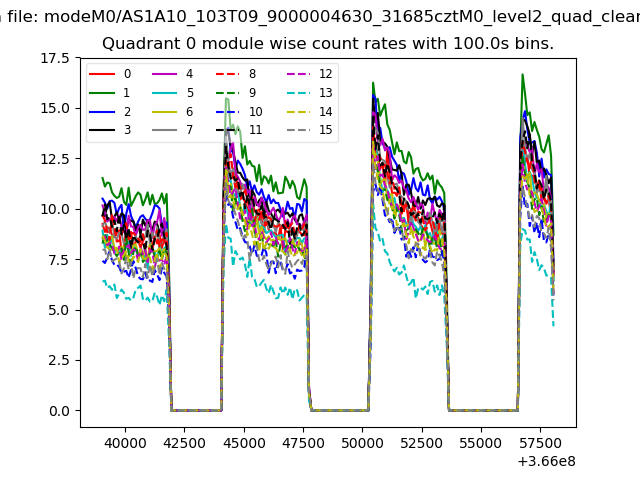

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

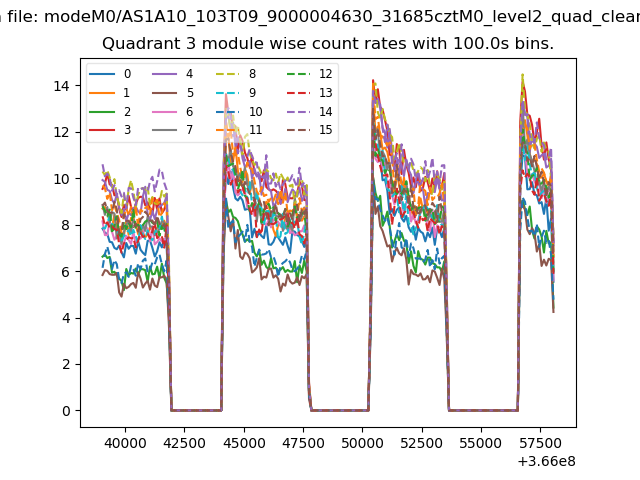

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

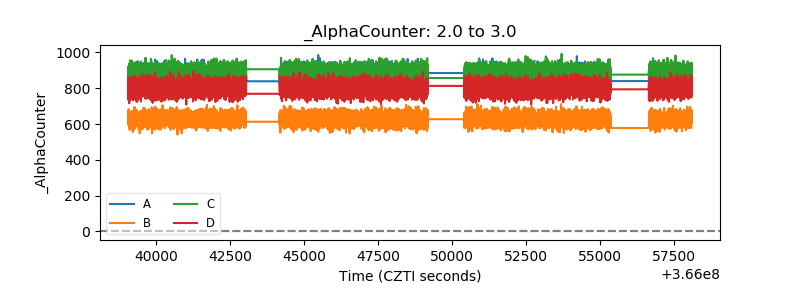

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

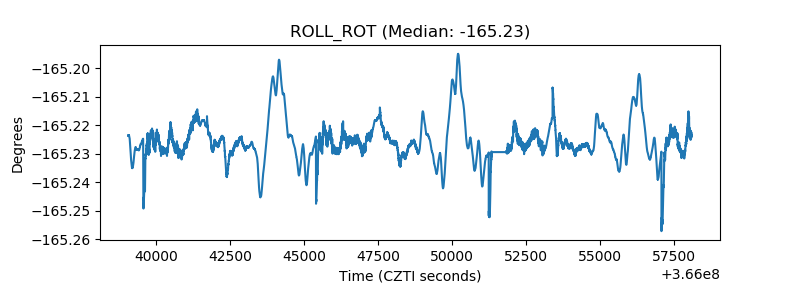

| _ROLL_ROT |  |

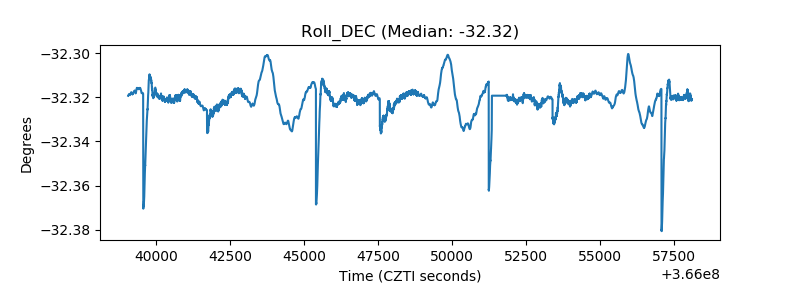

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
