| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T09_9000004630_31689cztM0_level2.evt | modeM0/AS1A10_103T09_9000004630_31689cztM0_level2_quad_clean.evt |
| Size (bytes) | 624,003,840 | 100,630,080 |
| Size | 595.1 MB | 96.0 MB |
| Events in quadrant A | 3,462,254 | 659,251 |
| Events in quadrant B | 6,221,047 | 647,479 |
| Events in quadrant C | 4,335,983 | 626,276 |
| Events in quadrant D | 4,393,496 | 614,943 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14982 | 2 |
| B | 0 | 23701 | 2 |
| C | 0 | 17503 | 2 |
| D | 0 | 17896 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7176 | 39 | 0.543478% |
| B | 7177 | 282 | 3.929218% |
| C | 7177 | 319 | 4.444754% |
| D | 7177 | 202 | 2.814546% |

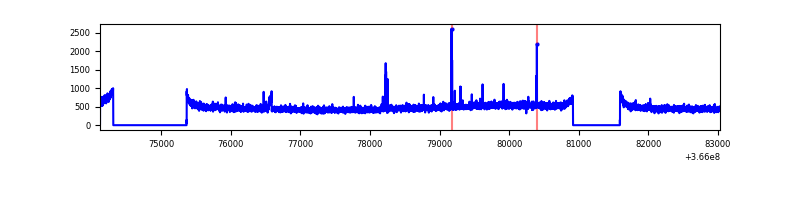

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8906 | 7178 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8907 | 7179 | 98 | 98 | 1.10% | 1.37% |  |
| C | 8907 | 7179 | 135 | 135 | 1.52% | 1.88% |  |
| D | 8907 | 7179 | 142 | 142 | 1.59% | 1.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 27721 | 150.11 | 883 | 864 | 178.9 |
| A | 15 | 174 | 19295 | 103.02 | 883 | 864 | 178.9 |
| A | 13 | 254 | 14017 | 73.52 | 883 | 864 | 178.9 |
| B | 6 | 159 | 2020496 | 12103.19 | 867 | 843 | 166.9 |
| B | 10 | 245 | 375838 | 2247.23 | 867 | 843 | 166.9 |
| B | 0 | 229 | 148611 | 885.53 | 867 | 843 | 166.9 |
| C | 0 | 10 | 477932 | 2448.95 | 830 | 834 | 194.8 |
| C | 3 | 233 | 403433 | 2066.54 | 830 | 834 | 194.8 |
| C | 14 | 238 | 133571 | 681.34 | 830 | 834 | 194.8 |
| D | 8 | 195 | 487524 | 2458.27 | 839 | 817 | 198.0 |
| D | 13 | 249 | 412585 | 2079.77 | 839 | 817 | 198.0 |
| D | 12 | 233 | 139698 | 701.46 | 839 | 817 | 198.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

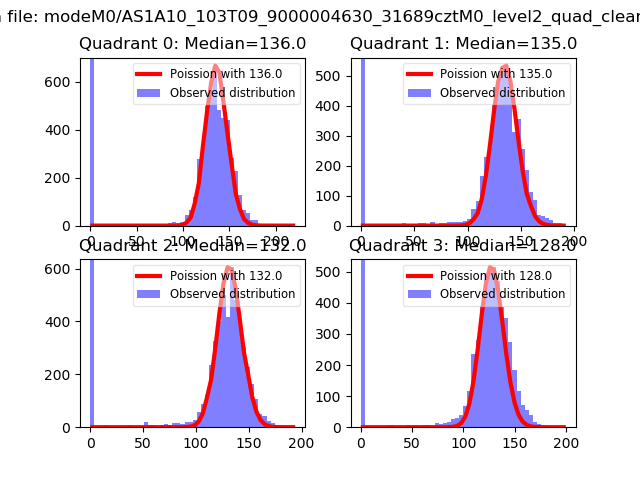

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

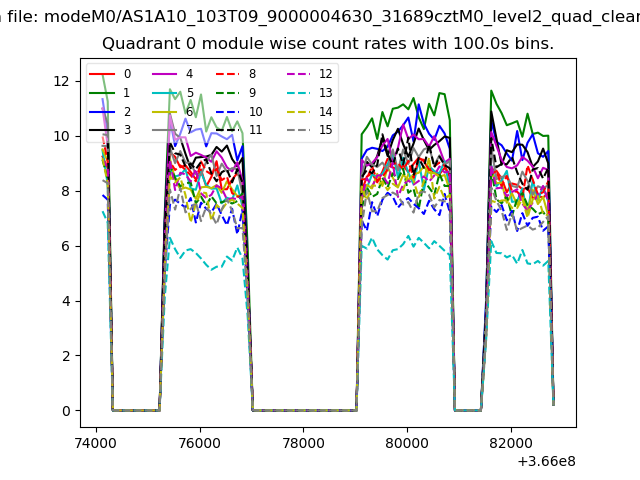

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

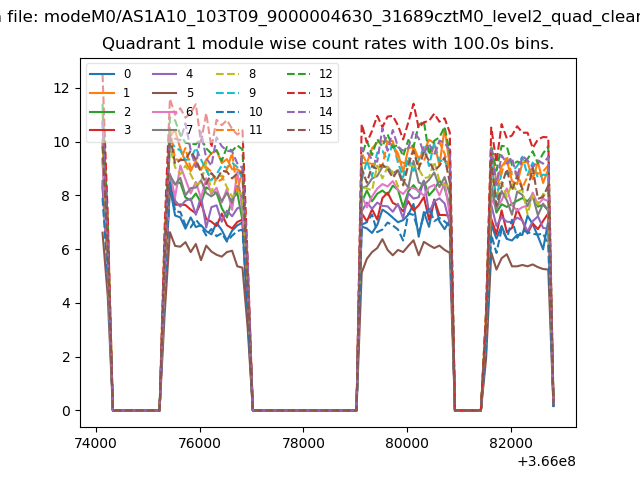

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

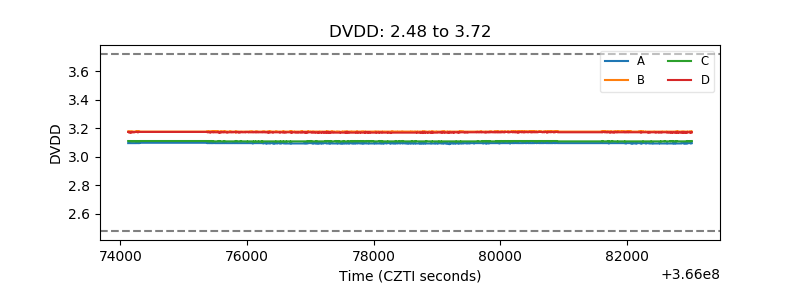

| D_VDD |  |

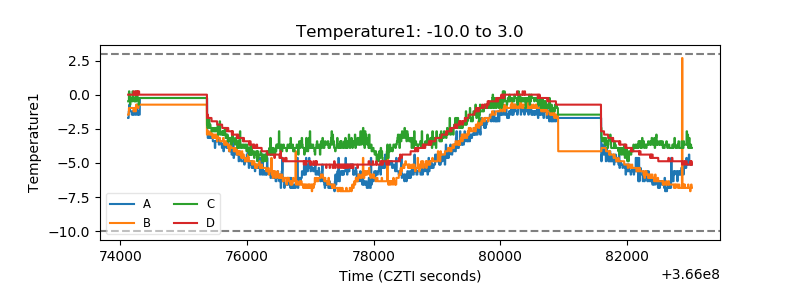

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

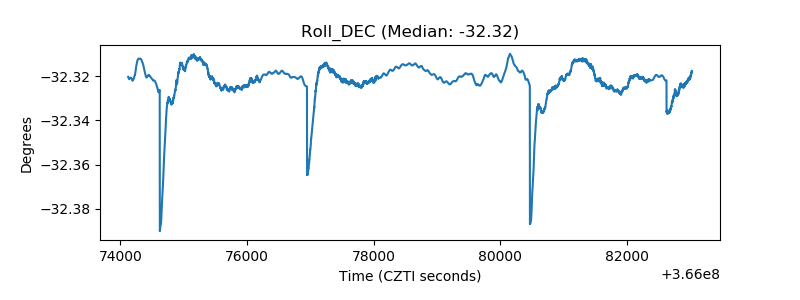

| _Roll_DEC |  |
| _Roll_RA |  |

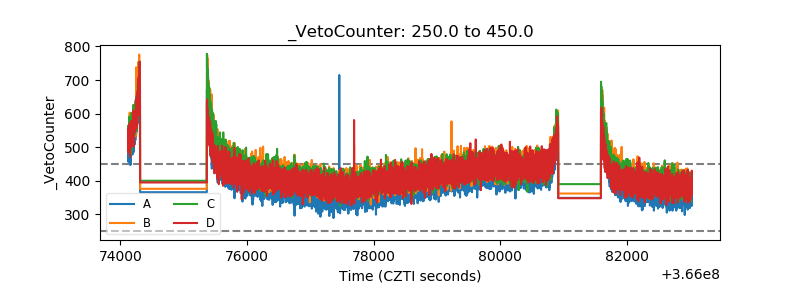

| Veto Counter |  |
