| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_034T01_9000004632_31724cztM0_level2.evt | modeM0/AS1T04_034T01_9000004632_31724cztM0_level2_quad_clean.evt |
| Size (bytes) | 743,509,440 | 71,896,320 |
| Size | 709.1 MB | 68.6 MB |
| Events in quadrant A | 5,229,872 | 433,898 |
| Events in quadrant B | 9,354,132 | 423,369 |
| Events in quadrant C | 3,713,653 | 435,615 |
| Events in quadrant D | 3,782,172 | 431,614 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19634 | 1 |
| B | 0 | 32245 | 1 |
| C | 0 | 14943 | 1 |
| D | 0 | 15529 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6475 | 661 | 10.208494% |
| B | 6475 | 1982 | 30.610039% |
| C | 6475 | 189 | 2.918919% |
| D | 6476 | 82 | 1.266214% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7405 | 6476 | 418 | 418 | 5.64% | 6.45% |  |
| B | 7405 | 6476 | 1249 | 1249 | 16.87% | 19.29% |  |
| C | 7405 | 6476 | 51 | 51 | 0.69% | 0.79% |  |
| D | 7406 | 6477 | 21 | 21 | 0.28% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 2218819 | 14096.57 | 780 | 764 | 157.3 |
| A | 13 | 254 | 11490 | 68.17 | 780 | 764 | 157.3 |
| A | 3 | 137 | 8090 | 46.56 | 780 | 764 | 157.3 |
| B | 4 | 80 | 4858034 | 35169.65 | 724 | 706 | 138.1 |
| B | 6 | 159 | 1575952 | 11405.62 | 724 | 706 | 138.1 |
| B | 3 | 209 | 30103 | 212.85 | 724 | 706 | 138.1 |
| C | 0 | 10 | 523128 | 2888.96 | 764 | 768 | 180.8 |
| C | 14 | 238 | 124780 | 685.86 | 764 | 768 | 180.8 |
| C | 3 | 233 | 38356 | 207.88 | 764 | 768 | 180.8 |
| D | 8 | 195 | 652258 | 3478.48 | 781 | 759 | 187.3 |
| D | 13 | 249 | 56914 | 299.82 | 781 | 759 | 187.3 |
| D | 12 | 227 | 34700 | 181.22 | 781 | 759 | 187.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

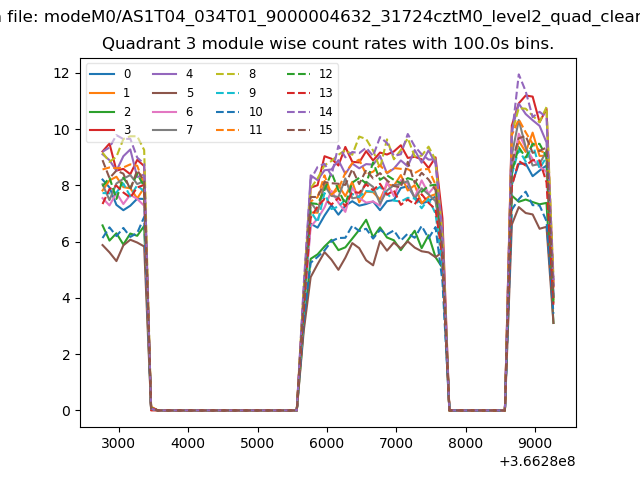

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

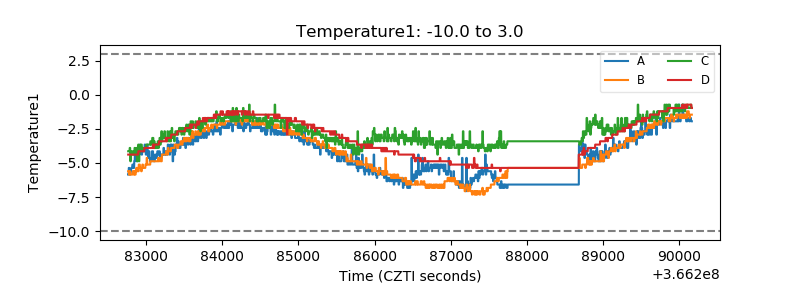

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

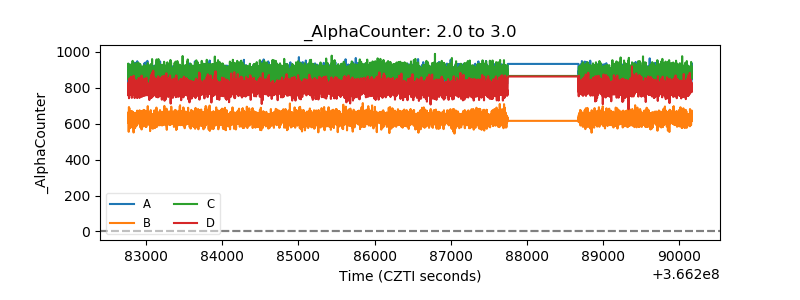

| Alpha Counter |  |

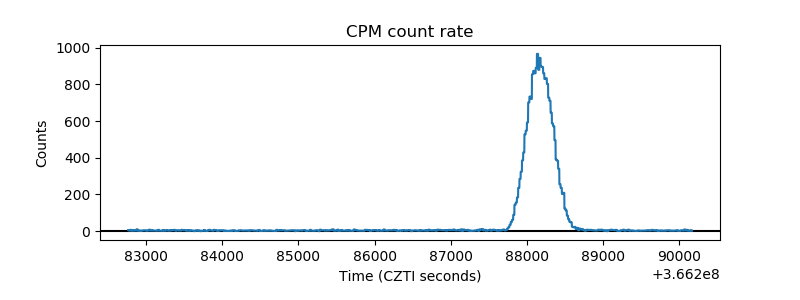

| _CPM_Rate |  |

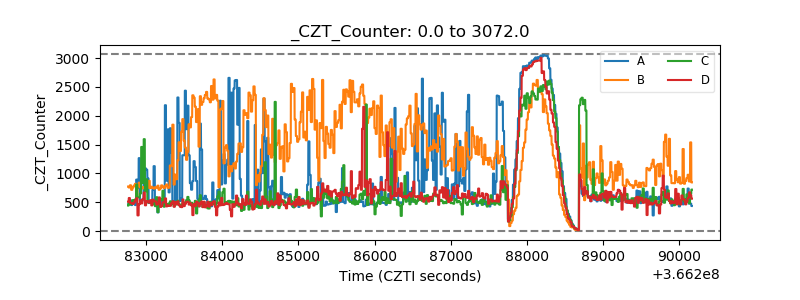

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

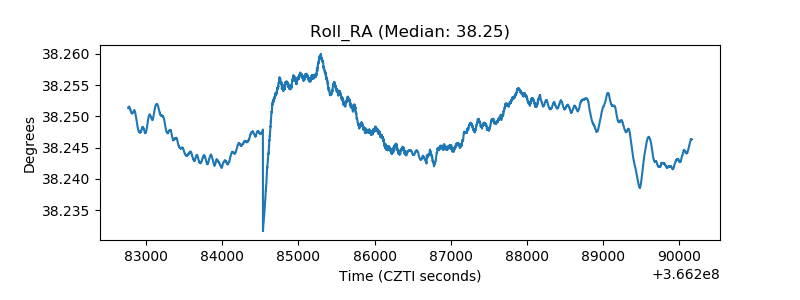

| _Roll_RA |  |
| Veto Counter |  |
