| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_034T01_9000004632_31731cztM0_level2.evt | modeM0/AS1T04_034T01_9000004632_31731cztM0_level2_quad_clean.evt |
| Size (bytes) | 767,027,520 | 98,962,560 |
| Size | 731.5 MB | 94.4 MB |
| Events in quadrant A | 5,111,489 | 654,098 |
| Events in quadrant B | 6,475,884 | 668,937 |
| Events in quadrant C | 6,560,057 | 583,254 |
| Events in quadrant D | 4,649,001 | 641,970 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19671 | 2 |
| B | 0 | 23622 | 2 |
| C | 0 | 24012 | 2 |
| D | 0 | 18037 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6423 | 470 | 7.317453% |
| B | 6423 | 576 | 8.967772% |
| C | 6423 | 1262 | 19.648139% |
| D | 6423 | 217 | 3.378484% |

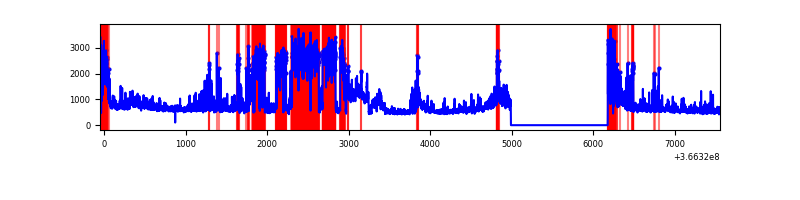

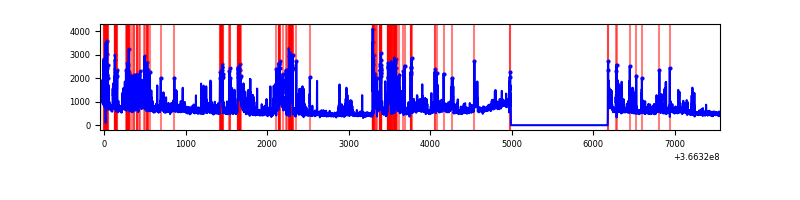

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7613 | 6423 | 219 | 219 | 2.88% | 3.41% |  |
| B | 7613 | 6424 | 145 | 145 | 1.90% | 2.26% |  |
| C | 7613 | 6424 | 889 | 889 | 11.68% | 13.84% |  |
| D | 7613 | 6423 | 88 | 88 | 1.16% | 1.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1806773 | 10595.9 | 857 | 842 | 170.4 |
| A | 13 | 254 | 12328 | 67.39 | 857 | 842 | 170.4 |
| A | 3 | 137 | 8215 | 43.26 | 857 | 842 | 170.4 |
| B | 6 | 159 | 1763999 | 10944.77 | 854 | 835 | 161.1 |
| B | 4 | 80 | 1251759 | 7765.06 | 854 | 835 | 161.1 |
| B | 5 | 172 | 41350 | 251.5 | 854 | 835 | 161.1 |
| C | 10 | 22 | 2375867 | 13061.43 | 781 | 788 | 181.8 |
| C | 0 | 10 | 844378 | 4639.21 | 781 | 788 | 181.8 |
| C | 14 | 238 | 124555 | 680.64 | 781 | 788 | 181.8 |
| D | 8 | 195 | 1061695 | 5246.33 | 860 | 841 | 202.2 |
| D | 12 | 233 | 140337 | 689.86 | 860 | 841 | 202.2 |
| D | 5 | 243 | 127321 | 625.49 | 860 | 841 | 202.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

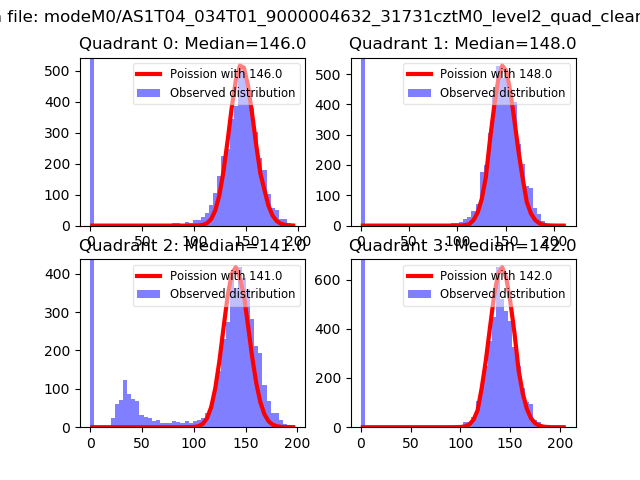

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

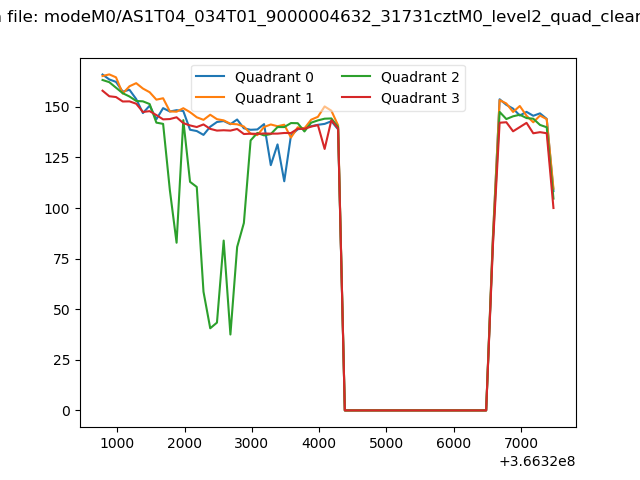

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

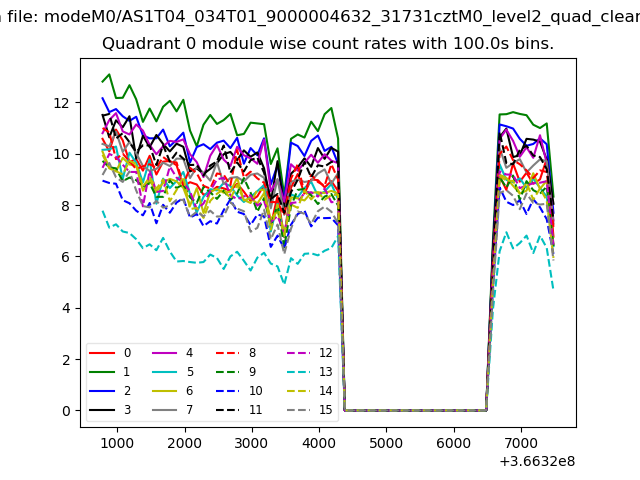

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

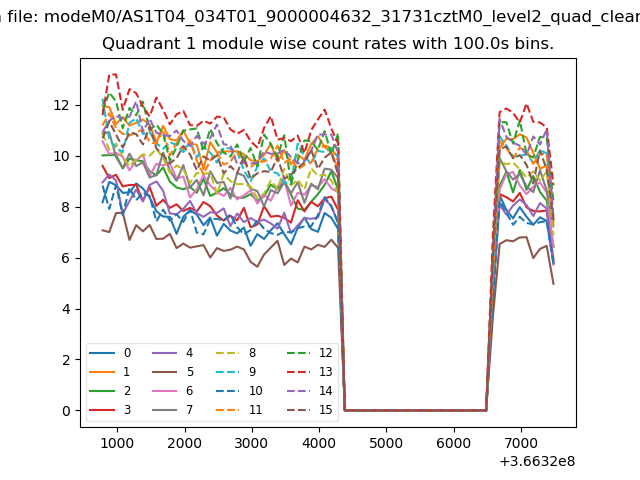

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

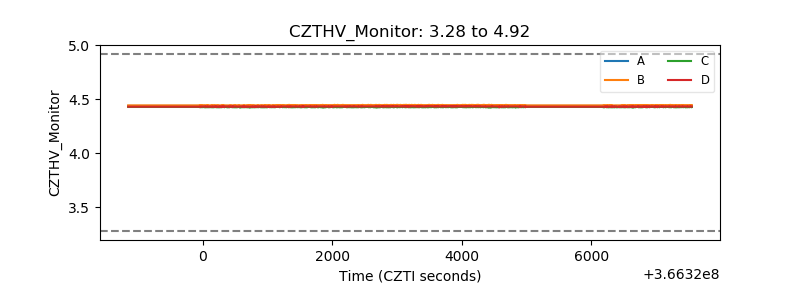

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

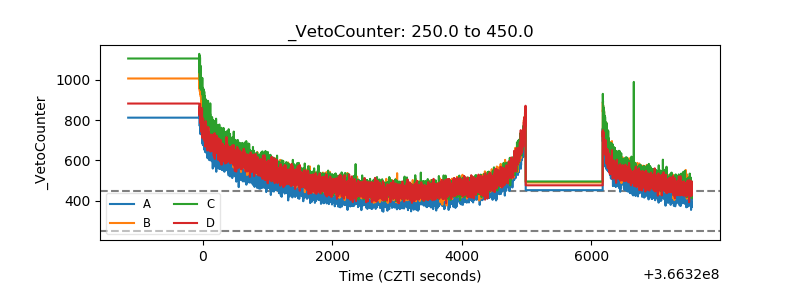

| Veto Counter |  |
