| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_034T01_9000004632_31743cztM0_level2.evt | modeM0/AS1T04_034T01_9000004632_31743cztM0_level2_quad_clean.evt |
| Size (bytes) | 707,840,640 | 72,829,440 |
| Size | 675.0 MB | 69.5 MB |
| Events in quadrant A | 4,887,915 | 435,264 |
| Events in quadrant B | 6,702,755 | 452,643 |
| Events in quadrant C | 4,636,910 | 444,753 |
| Events in quadrant D | 4,792,467 | 440,625 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18757 | 2 |
| B | 0 | 24212 | 2 |
| C | 0 | 17931 | 2 |
| D | 0 | 18195 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6184 | 543 | 8.780724% |
| B | 6184 | 689 | 11.141656% |
| C | 6184 | 475 | 7.681113% |
| D | 6184 | 227 | 3.670763% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7499 | 6184 | 210 | 210 | 2.80% | 3.40% |  |
| B | 7499 | 6185 | 201 | 201 | 2.68% | 3.25% |  |
| C | 7499 | 6185 | 173 | 173 | 2.31% | 2.80% |  |
| D | 7499 | 6185 | 87 | 87 | 1.16% | 1.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1380506 | 7780.11 | 907 | 893 | 177.3 |
| A | 13 | 254 | 11384 | 59.16 | 907 | 893 | 177.3 |
| A | 15 | 174 | 10339 | 53.27 | 907 | 893 | 177.3 |
| B | 6 | 159 | 1670969 | 10065.01 | 898 | 880 | 165.9 |
| B | 4 | 80 | 701541 | 4222.63 | 898 | 880 | 165.9 |
| B | 5 | 255 | 641565 | 3861.17 | 898 | 880 | 165.9 |
| C | 0 | 10 | 922312 | 4615.71 | 877 | 888 | 199.6 |
| C | 14 | 238 | 144756 | 720.68 | 877 | 888 | 199.6 |
| C | 14 | 225 | 68203 | 337.2 | 877 | 888 | 199.6 |
| D | 8 | 195 | 885874 | 4154.51 | 911 | 892 | 213.0 |
| D | 12 | 233 | 166260 | 776.31 | 911 | 892 | 213.0 |
| D | 13 | 249 | 164185 | 766.57 | 911 | 892 | 213.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

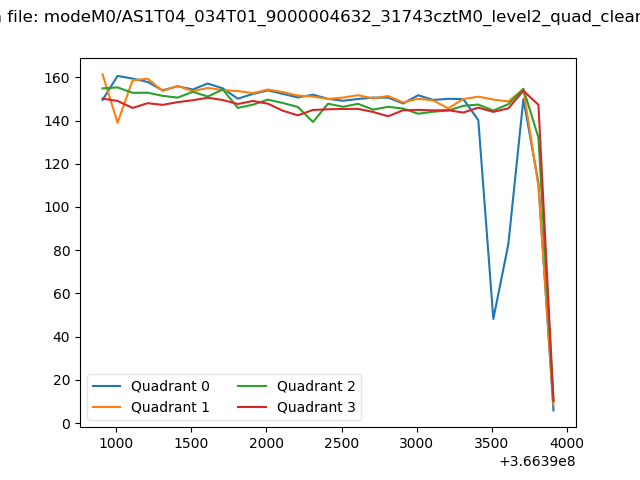

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

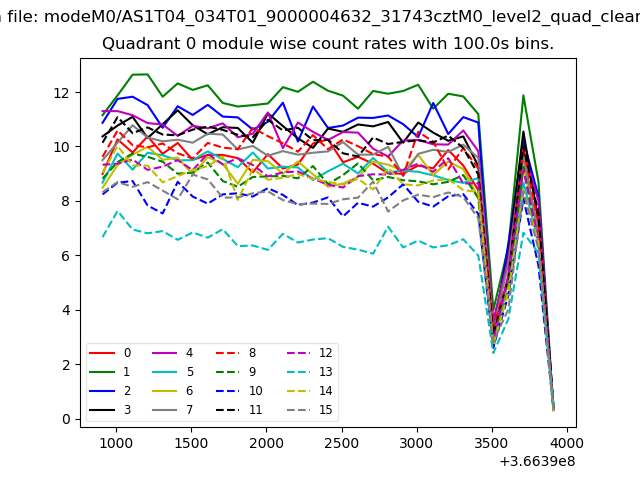

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

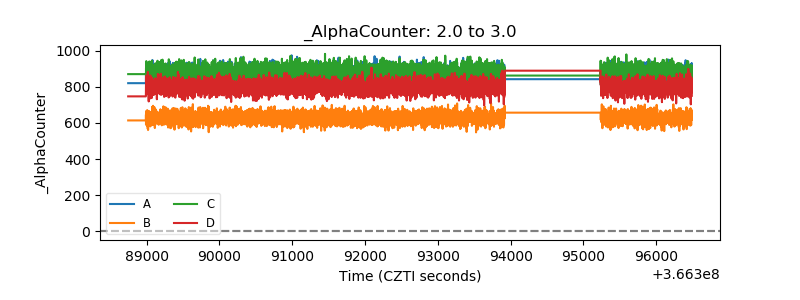

| Alpha Counter |  |

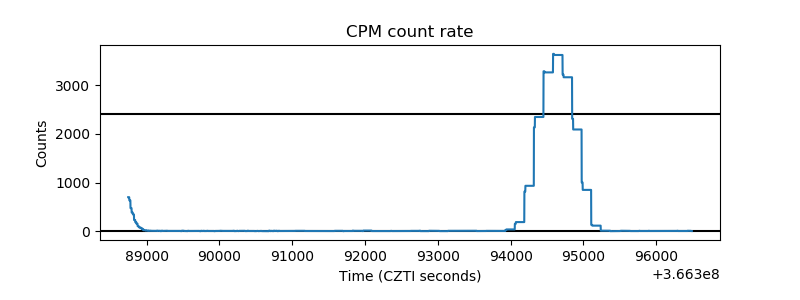

| _CPM_Rate |  |

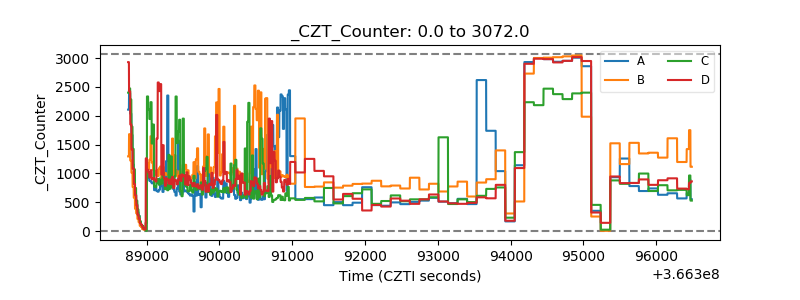

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

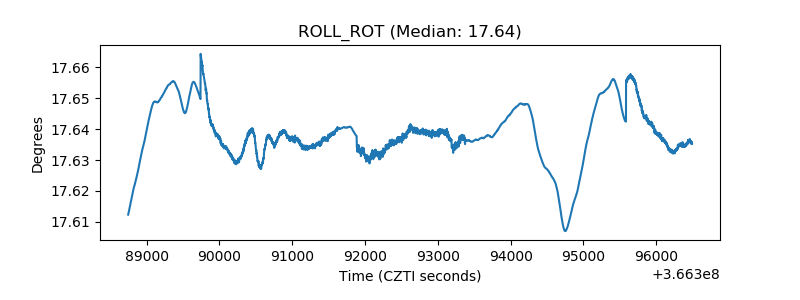

| _ROLL_ROT |  |
| _Roll_DEC |  |

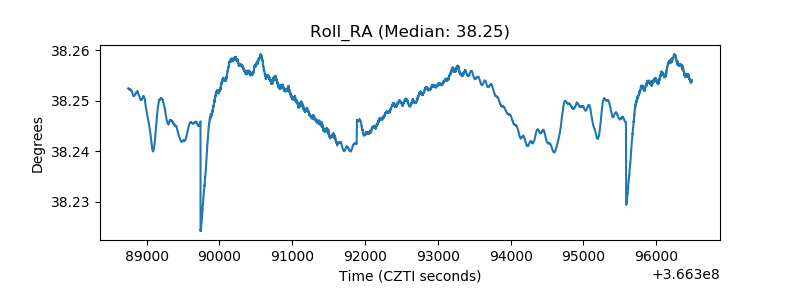

| _Roll_RA |  |

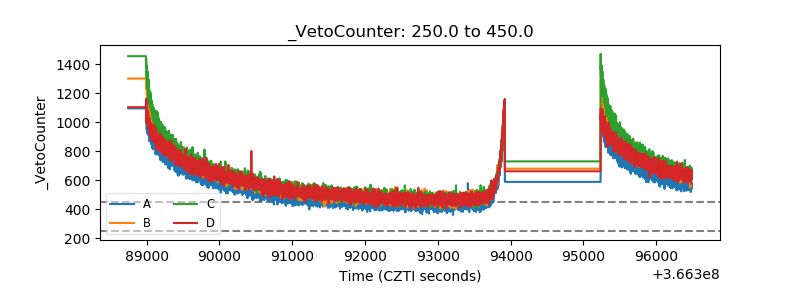

| Veto Counter |  |
