| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_034T01_9000004632_31744cztM0_level2.evt | modeM0/AS1T04_034T01_9000004632_31744cztM0_level2_quad_clean.evt |
| Size (bytes) | 757,595,520 | 84,528,000 |
| Size | 722.5 MB | 80.6 MB |
| Events in quadrant A | 6,360,393 | 502,740 |
| Events in quadrant B | 6,999,106 | 548,173 |
| Events in quadrant C | 4,681,093 | 542,672 |
| Events in quadrant D | 4,488,491 | 535,301 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23398 | 2 |
| B | 0 | 25162 | 2 |
| C | 0 | 18238 | 2 |
| D | 0 | 17358 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6164 | 860 | 13.951979% |
| B | 6164 | 498 | 8.079169% |
| C | 6164 | 456 | 7.397794% |
| D | 6164 | 95 | 1.541207% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7539 | 6165 | 468 | 468 | 6.21% | 7.59% |  |
| B | 7539 | 6165 | 76 | 76 | 1.01% | 1.23% |  |
| C | 7539 | 6165 | 133 | 133 | 1.76% | 2.16% |  |
| D | 7539 | 6165 | 6 | 6 | 0.08% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 2984056 | 17341.15 | 875 | 862 | 172.0 |
| A | 13 | 254 | 10995 | 58.9 | 875 | 862 | 172.0 |
| A | 3 | 137 | 7862 | 40.69 | 875 | 862 | 172.0 |
| B | 6 | 159 | 1728828 | 10347.68 | 901 | 882 | 167.0 |
| B | 4 | 80 | 1486872 | 8898.74 | 901 | 882 | 167.0 |
| B | 5 | 255 | 136570 | 812.56 | 901 | 882 | 167.0 |
| C | 0 | 10 | 1042147 | 5218.42 | 875 | 887 | 199.5 |
| C | 14 | 238 | 144245 | 718.46 | 875 | 887 | 199.5 |
| C | 3 | 233 | 29827 | 145.03 | 875 | 887 | 199.5 |
| D | 8 | 195 | 879518 | 4131.53 | 908 | 891 | 212.7 |
| D | 12 | 233 | 80056 | 372.25 | 908 | 891 | 212.7 |
| D | 1 | 52 | 63003 | 292.07 | 908 | 891 | 212.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

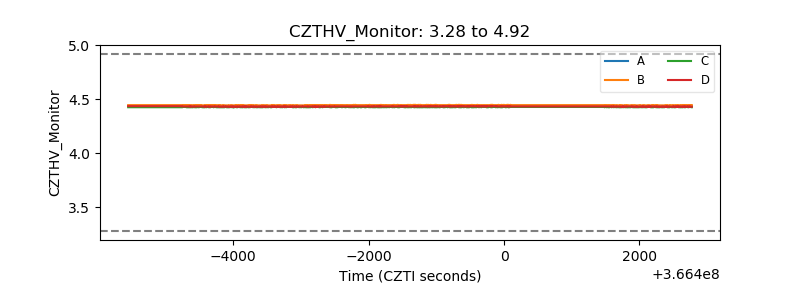

| CZT HV Monitor |  |
| D_VDD |  |

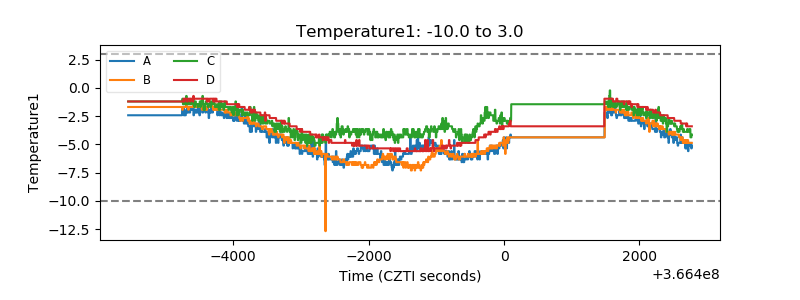

| Temperature 1 |  |
| Veto HV Monitor |  |

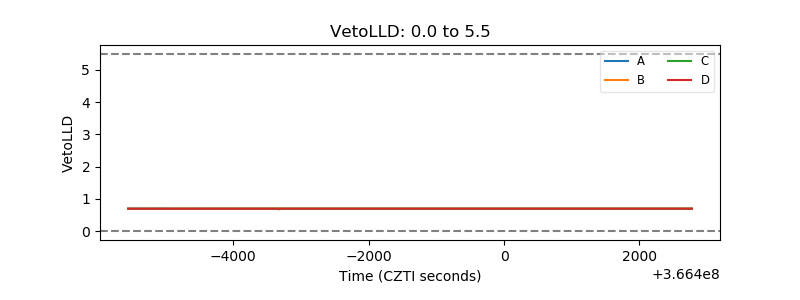

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

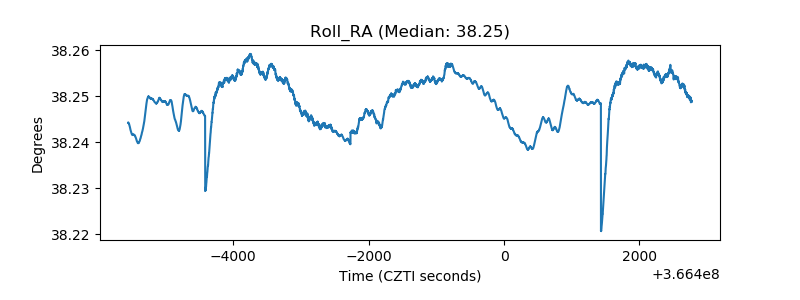

| _Roll_RA |  |

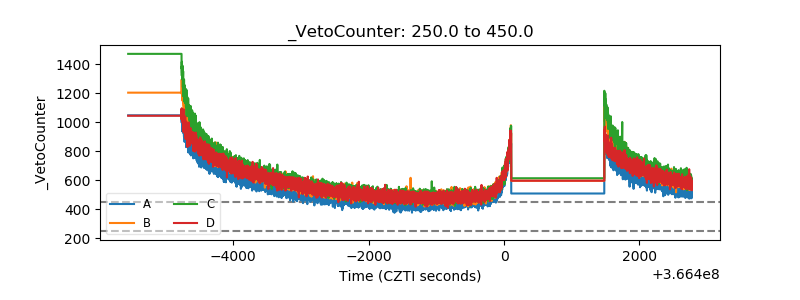

| Veto Counter |  |
