| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_034T01_9000004632_31745cztM0_level2.evt | modeM0/AS1T04_034T01_9000004632_31745cztM0_level2_quad_clean.evt |
| Size (bytes) | 685,918,080 | 95,659,200 |
| Size | 654.1 MB | 91.2 MB |
| Events in quadrant A | 6,082,640 | 584,278 |
| Events in quadrant B | 5,789,174 | 640,790 |
| Events in quadrant C | 4,302,838 | 633,299 |
| Events in quadrant D | 4,193,107 | 618,667 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22283 | 1 |
| B | 0 | 21107 | 2 |
| C | 0 | 16894 | 1 |
| D | 0 | 16551 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6011 | 1057 | 17.584429% |
| B | 6010 | 343 | 5.707155% |
| C | 6011 | 336 | 5.589752% |
| D | 6011 | 120 | 1.996340% |

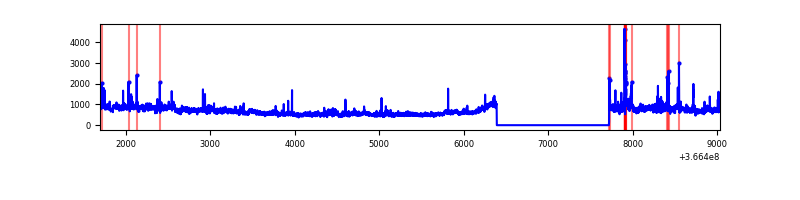

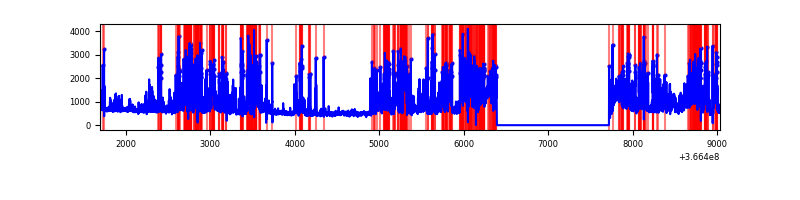

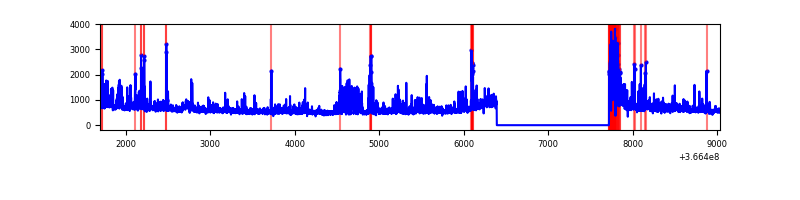

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7341 | 6012 | 514 | 514 | 7.00% | 8.55% |  |
| B | 7340 | 6011 | 37 | 37 | 0.50% | 0.62% |  |
| C | 7341 | 6012 | 86 | 86 | 1.17% | 1.43% |  |
| D | 7341 | 6012 | 24 | 24 | 0.33% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 3087368 | 20052.04 | 776 | 762 | 153.9 |
| A | 13 | 254 | 10327 | 62.14 | 776 | 762 | 153.9 |
| A | 3 | 137 | 7202 | 41.84 | 776 | 762 | 153.9 |
| B | 6 | 159 | 1671500 | 10760.18 | 829 | 811 | 155.3 |
| B | 4 | 80 | 678635 | 4365.57 | 829 | 811 | 155.3 |
| B | 15 | 219 | 70404 | 448.22 | 829 | 811 | 155.3 |
| C | 0 | 10 | 915953 | 4875.56 | 813 | 822 | 187.7 |
| C | 14 | 238 | 133979 | 709.42 | 813 | 822 | 187.7 |
| C | 4 | 175 | 30058 | 155.76 | 813 | 822 | 187.7 |
| D | 8 | 195 | 821999 | 4194.11 | 828 | 810 | 195.8 |
| D | 13 | 249 | 110357 | 559.49 | 828 | 810 | 195.8 |
| D | 1 | 52 | 58585 | 295.08 | 828 | 810 | 195.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

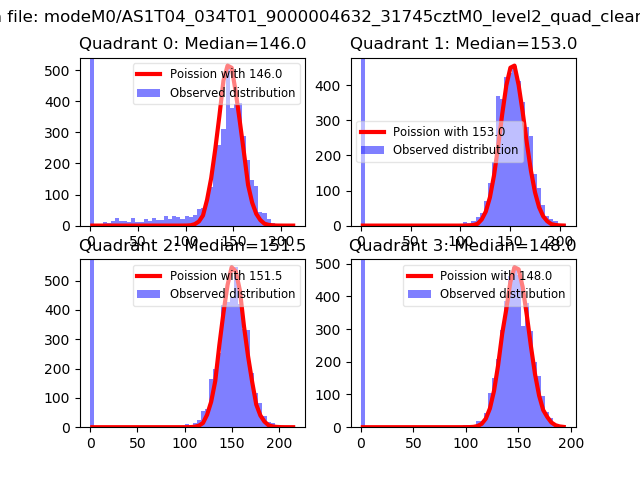

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

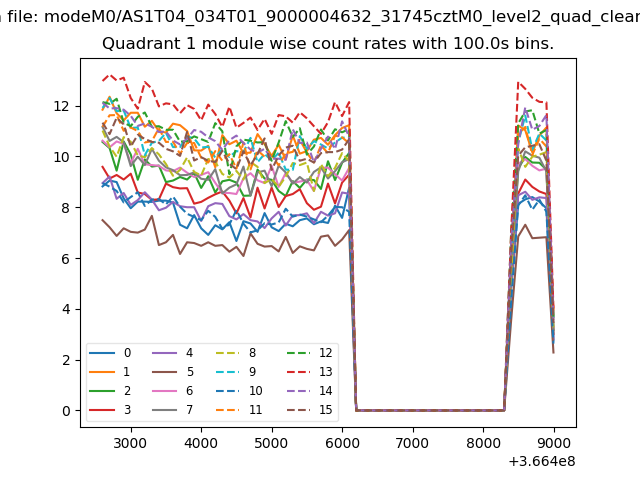

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

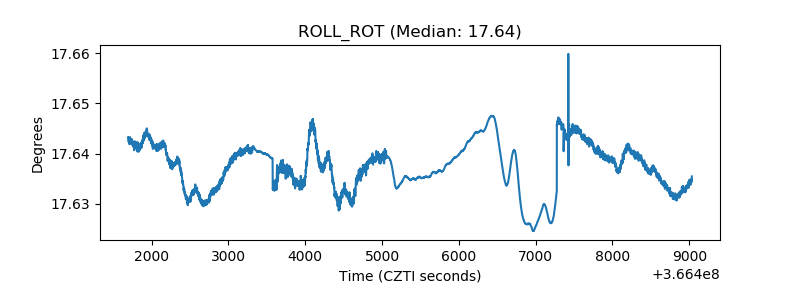

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
