| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_034T01_9000004632_31750cztM0_level2.evt | modeM0/AS1T04_034T01_9000004632_31750cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,770,880 | 68,981,760 |
| Size | 444.2 MB | 65.8 MB |
| Events in quadrant A | 4,292,625 | 411,167 |
| Events in quadrant B | 3,705,884 | 462,126 |
| Events in quadrant C | 3,080,949 | 451,680 |
| Events in quadrant D | 2,725,254 | 451,273 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 6 | 2 |
| C | 0 | 5 | 1 |
| D | 0 | 5 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 26 |
| B | 0 | 123 | 25 |
| C | 0 | 119 | 23 |
| D | 0 | 127 | 35 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23999 | 8359 |
| B | 0 | 19049 | 4849 |
| C | 0 | 16541 | 4412 |
| D | 0 | 14697 | 3695 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4313 | 1017 | 23.579875% |
| B | 4422 | 233 | 5.269109% |
| C | 4464 | 293 | 6.563620% |
| D | 4481 | 35 | 0.781076% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

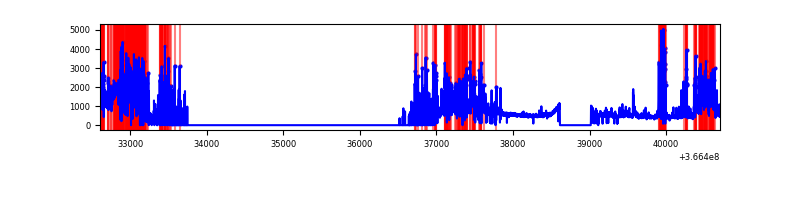

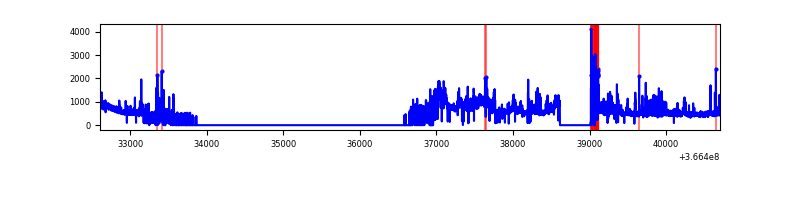

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8099 | 4536 | 411 | 411 | 5.07% | 9.06% |  |
| B | 8099 | 4663 | 46 | 46 | 0.57% | 0.99% |  |
| C | 8099 | 4692 | 31 | 31 | 0.38% | 0.66% |  |
| D | 8099 | 4704 | 3 | 3 | 0.04% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 2409846 | 23962.85 | 488 | 476 | 100.5 |
| A | 13 | 254 | 7085 | 65.73 | 488 | 476 | 100.5 |
| A | 3 | 137 | 5121 | 46.19 | 488 | 476 | 100.5 |
| B | 6 | 159 | 1198974 | 10966.82 | 557 | 541 | 109.3 |
| B | 4 | 80 | 209696 | 1913.97 | 557 | 541 | 109.3 |
| B | 5 | 255 | 48716 | 440.85 | 557 | 541 | 109.3 |
| C | 3 | 233 | 436153 | 3328.16 | 544 | 547 | 130.9 |
| C | 0 | 10 | 405593 | 3094.67 | 544 | 547 | 130.9 |
| C | 14 | 238 | 90902 | 690.34 | 544 | 547 | 130.9 |
| D | 8 | 195 | 461490 | 3420.01 | 554 | 537 | 134.8 |
| D | 2 | 250 | 92187 | 679.99 | 554 | 537 | 134.8 |
| D | 12 | 233 | 65520 | 482.14 | 554 | 537 | 134.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

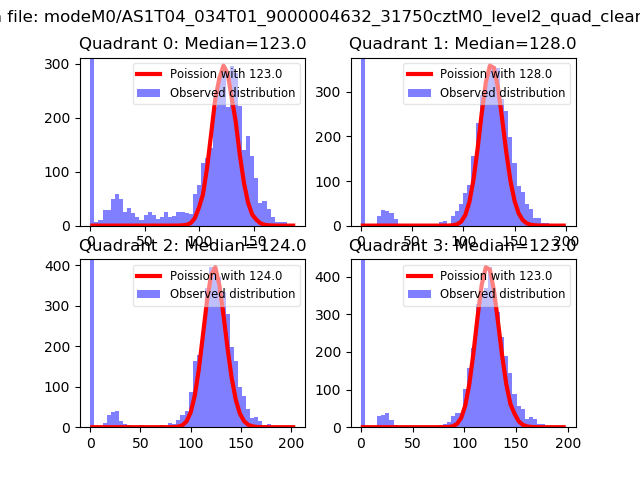

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

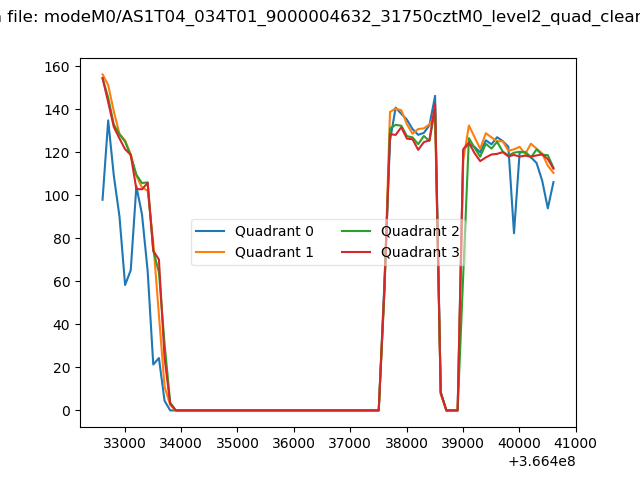

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

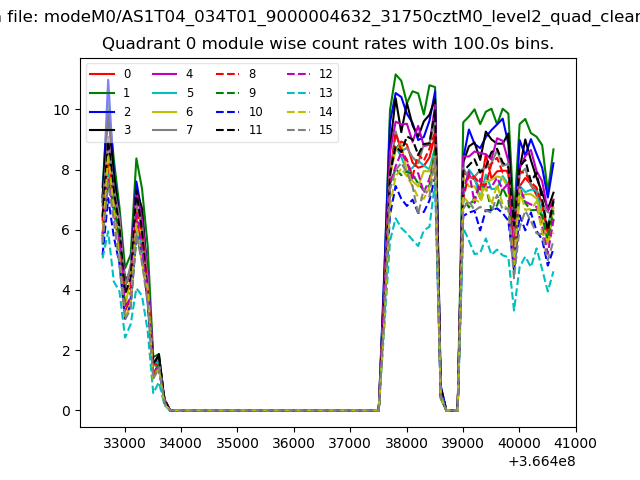

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

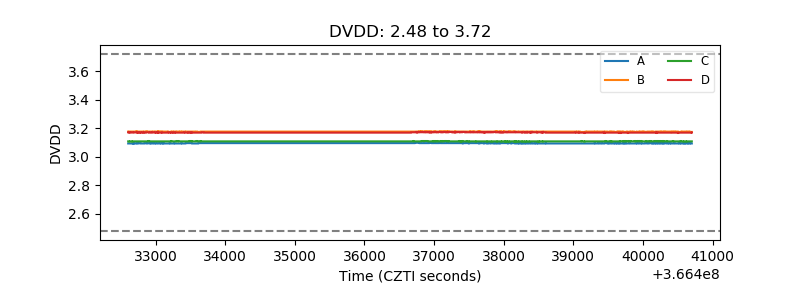

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

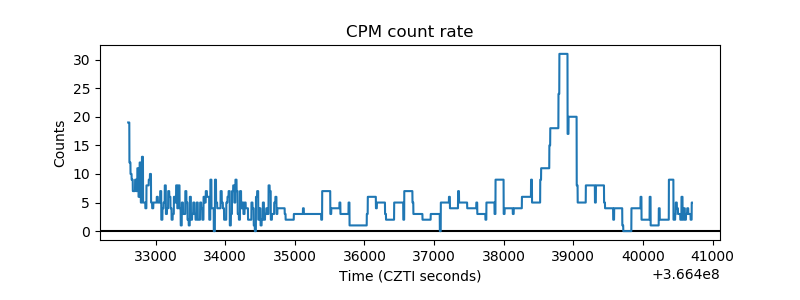

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

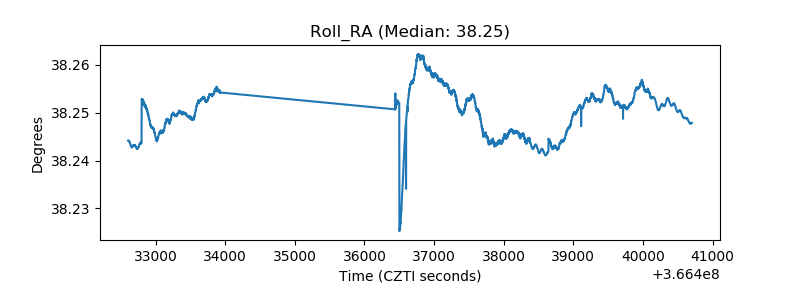

| _Roll_RA |  |
| Veto Counter |  |
