| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_041T01_9000004642_31789cztM0_level2.evt | modeM0/AS1T04_041T01_9000004642_31789cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,241,600 | 110,090,880 |
| Size | 571.5 MB | 105.0 MB |
| Events in quadrant A | 4,616,626 | 734,226 |
| Events in quadrant B | 5,195,170 | 749,861 |
| Events in quadrant C | 3,735,603 | 707,927 |
| Events in quadrant D | 4,175,702 | 703,364 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17860 | 2 |
| B | 0 | 19899 | 2 |
| C | 0 | 15047 | 2 |
| D | 0 | 16810 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6293 | 331 | 5.259812% |
| B | 6293 | 198 | 3.146353% |
| C | 6293 | 311 | 4.941999% |
| D | 6293 | 74 | 1.175910% |

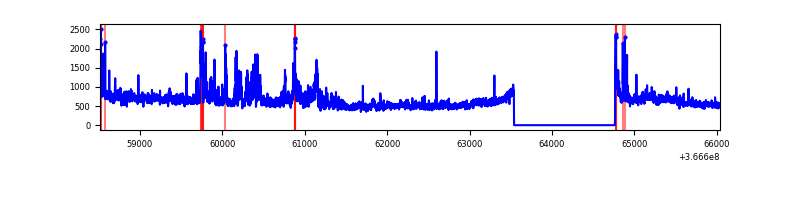

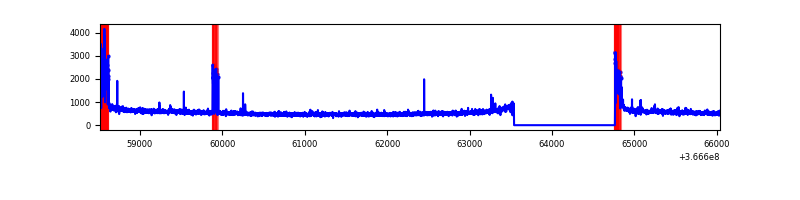

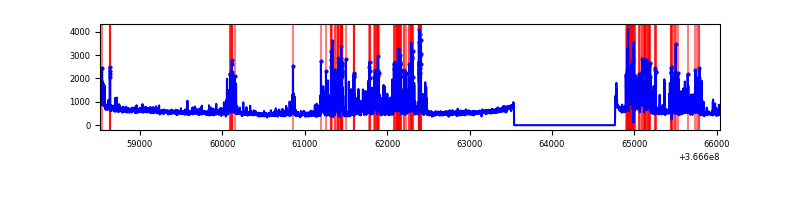

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7518 | 6294 | 208 | 208 | 2.77% | 3.30% |  |
| B | 7518 | 6294 | 50 | 50 | 0.67% | 0.79% |  |
| C | 7518 | 6294 | 98 | 98 | 1.30% | 1.56% |  |
| D | 7518 | 6294 | 21 | 21 | 0.28% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1391676 | 8510.9 | 832 | 819 | 163.4 |
| A | 13 | 6 | 16249 | 94.42 | 832 | 819 | 163.4 |
| A | 13 | 254 | 11493 | 65.32 | 832 | 819 | 163.4 |
| B | 6 | 159 | 1647213 | 10513.36 | 830 | 811 | 156.6 |
| B | 10 | 245 | 260962 | 1661.24 | 830 | 811 | 156.6 |
| B | 12 | 111 | 18725 | 114.39 | 830 | 811 | 156.6 |
| C | 0 | 10 | 343052 | 1841.28 | 803 | 809 | 185.9 |
| C | 14 | 238 | 131918 | 705.37 | 803 | 809 | 185.9 |
| C | 10 | 22 | 54357 | 288.09 | 803 | 809 | 185.9 |
| D | 8 | 195 | 591834 | 3021.91 | 826 | 807 | 195.6 |
| D | 12 | 227 | 364828 | 1861.23 | 826 | 807 | 195.6 |
| D | 12 | 218 | 60267 | 304.02 | 826 | 807 | 195.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

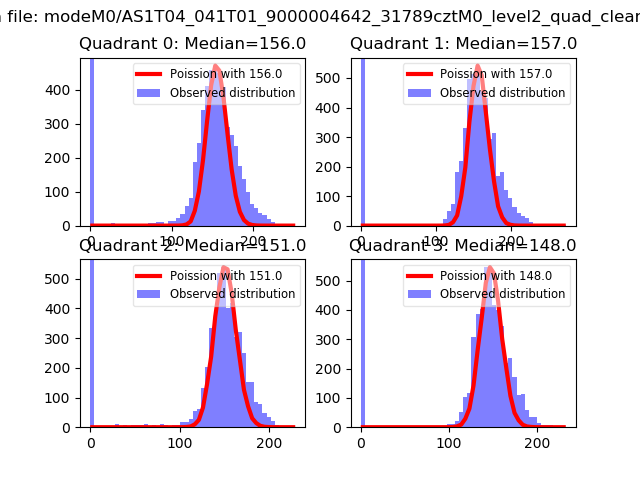

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

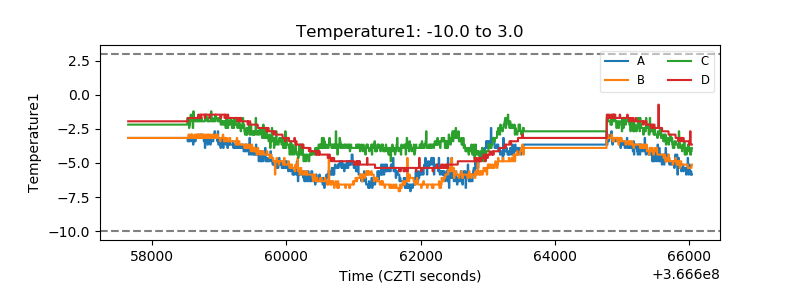

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

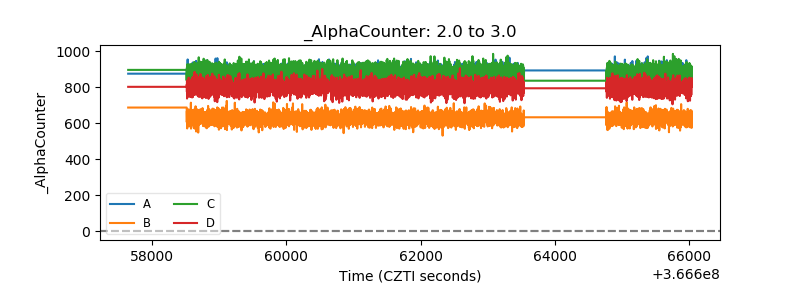

| Alpha Counter |  |

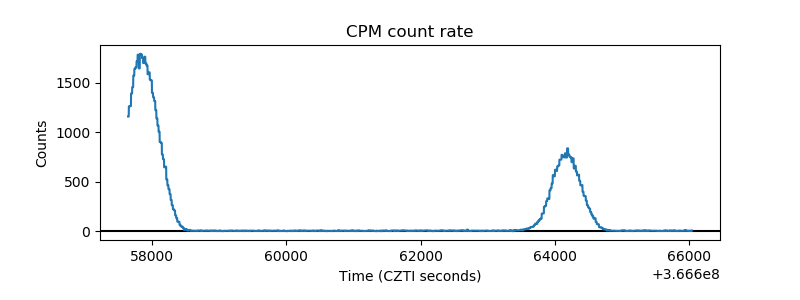

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

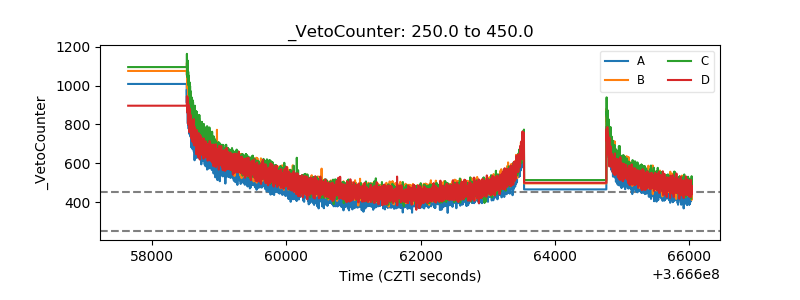

| Veto Counter |  |
