| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_041T01_9000004642_31791cztM0_level2.evt | modeM0/AS1T04_041T01_9000004642_31791cztM0_level2_quad_clean.evt |
| Size (bytes) | 687,559,680 | 108,999,360 |
| Size | 655.7 MB | 103.9 MB |
| Events in quadrant A | 6,288,277 | 691,390 |
| Events in quadrant B | 5,839,605 | 723,447 |
| Events in quadrant C | 4,165,373 | 687,429 |
| Events in quadrant D | 4,033,957 | 688,136 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23731 | 2 |
| B | 0 | 22782 | 4 |
| C | 0 | 17037 | 2 |
| D | 0 | 16871 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7333 | 792 | 10.800491% |
| B | 7332 | 172 | 2.345881% |
| C | 7332 | 344 | 4.691762% |
| D | 7332 | 76 | 1.036552% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7763 | 7334 | 500 | 500 | 6.44% | 6.82% |  |
| B | 7762 | 7333 | 39 | 39 | 0.50% | 0.53% |  |
| C | 7762 | 7333 | 64 | 64 | 0.82% | 0.87% |  |
| D | 7762 | 7333 | 20 | 20 | 0.26% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 2861617 | 16118.26 | 885 | 869 | 177.5 |
| A | 13 | 254 | 13327 | 70.19 | 885 | 869 | 177.5 |
| A | 13 | 6 | 10808 | 56.0 | 885 | 869 | 177.5 |
| B | 6 | 159 | 1999096 | 11466.96 | 904 | 883 | 174.3 |
| B | 10 | 245 | 218634 | 1249.59 | 904 | 883 | 174.3 |
| B | 5 | 255 | 31334 | 174.75 | 904 | 883 | 174.3 |
| C | 0 | 10 | 374915 | 1820.83 | 870 | 877 | 205.4 |
| C | 14 | 238 | 164706 | 797.52 | 870 | 877 | 205.4 |
| C | 3 | 233 | 112606 | 543.9 | 870 | 877 | 205.4 |
| D | 8 | 195 | 436444 | 2043.97 | 890 | 867 | 213.1 |
| D | 2 | 250 | 101043 | 470.08 | 890 | 867 | 213.1 |
| D | 12 | 227 | 63288 | 292.91 | 890 | 867 | 213.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

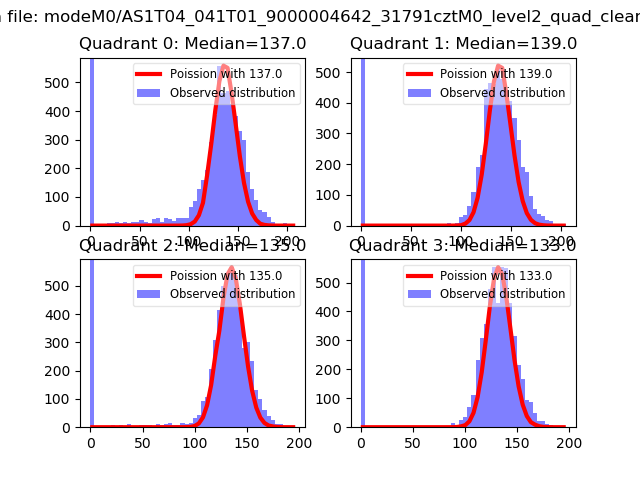

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

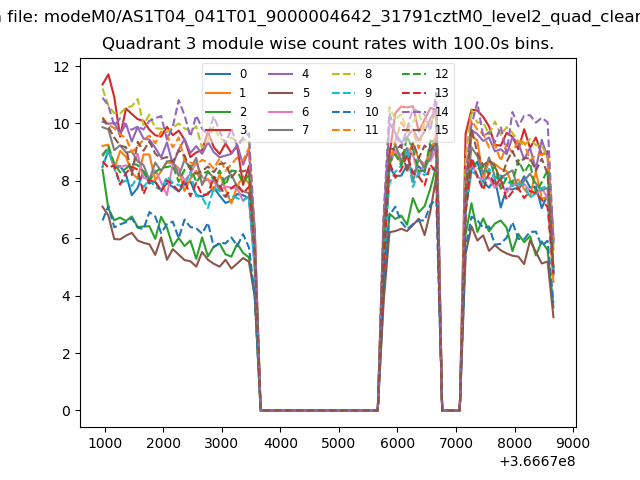

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

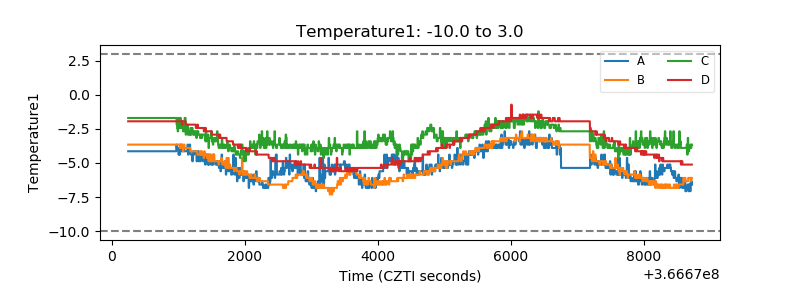

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

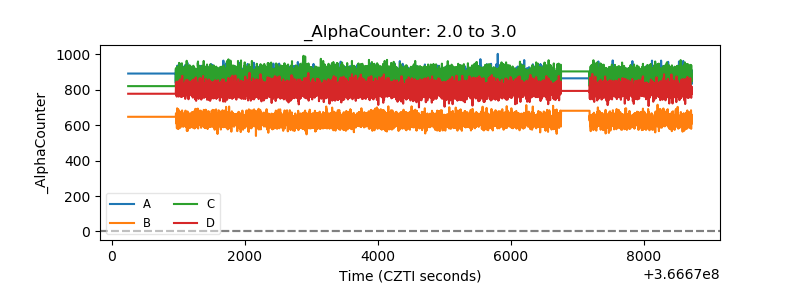

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

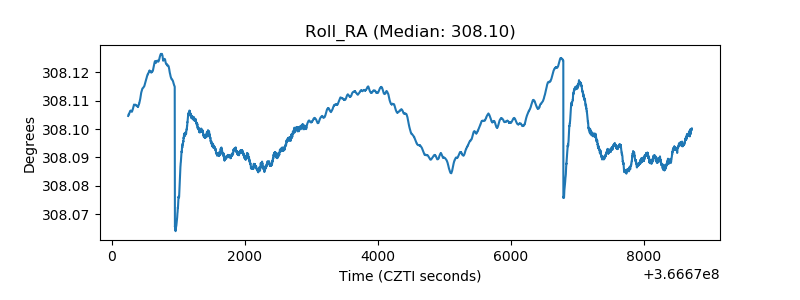

| _Roll_RA |  |

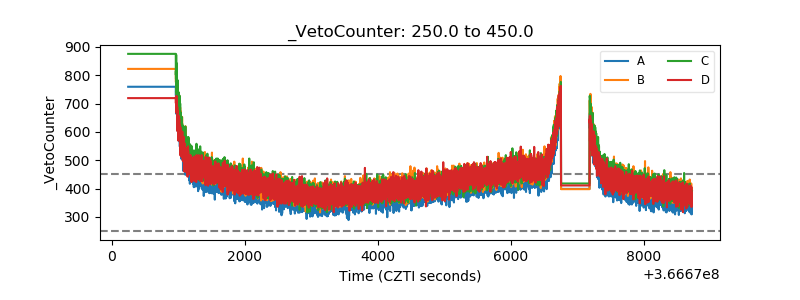

| Veto Counter |  |
