| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_041T01_9000004642_31793cztM0_level2.evt | modeM0/AS1T04_041T01_9000004642_31793cztM0_level2_quad_clean.evt |
| Size (bytes) | 868,173,120 | 109,586,880 |
| Size | 828.0 MB | 104.5 MB |
| Events in quadrant A | 9,973,441 | 597,918 |
| Events in quadrant B | 6,599,798 | 752,301 |
| Events in quadrant C | 4,161,819 | 720,270 |
| Events in quadrant D | 5,031,892 | 705,361 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35012 | 2 |
| B | 0 | 25462 | 2 |
| C | 0 | 17323 | 2 |
| D | 0 | 19979 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7795 | 2769 | 35.522771% |
| B | 7794 | 391 | 5.016679% |
| C | 7795 | 319 | 4.092367% |
| D | 7795 | 182 | 2.334830% |

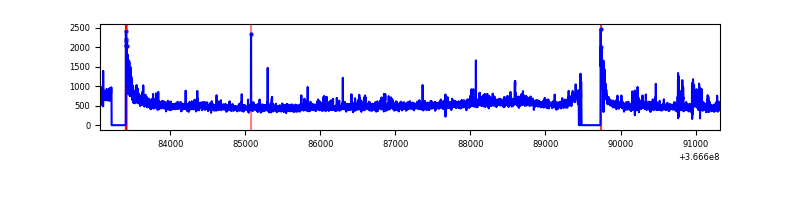

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8260 | 7798 | 1650 | 1650 | 19.98% | 21.16% |  |
| B | 8259 | 7797 | 105 | 105 | 1.27% | 1.35% |  |
| C | 8260 | 7798 | 9 | 9 | 0.11% | 0.12% |  |
| D | 8260 | 7798 | 87 | 87 | 1.05% | 1.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 6880918 | 42784.36 | 801 | 785 | 160.8 |
| A | 13 | 254 | 11859 | 68.86 | 801 | 785 | 160.8 |
| A | 3 | 137 | 8333 | 46.93 | 801 | 785 | 160.8 |
| B | 6 | 159 | 2093908 | 11436.71 | 945 | 920 | 183.0 |
| B | 5 | 255 | 628444 | 3428.98 | 945 | 920 | 183.0 |
| B | 10 | 245 | 104029 | 563.42 | 945 | 920 | 183.0 |
| C | 0 | 10 | 261518 | 1200.87 | 920 | 926 | 217.0 |
| C | 14 | 238 | 176947 | 811.15 | 920 | 926 | 217.0 |
| C | 3 | 233 | 54155 | 245.29 | 920 | 926 | 217.0 |
| D | 8 | 195 | 1019681 | 4596.74 | 925 | 900 | 221.6 |
| D | 12 | 227 | 256279 | 1152.27 | 925 | 900 | 221.6 |
| D | 2 | 250 | 97834 | 437.37 | 925 | 900 | 221.6 |

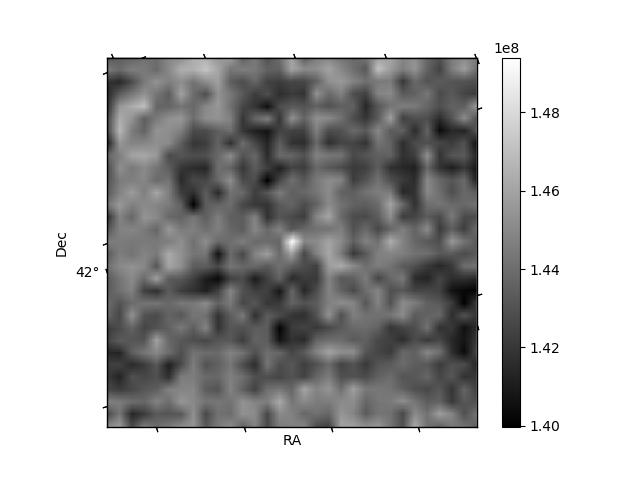

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

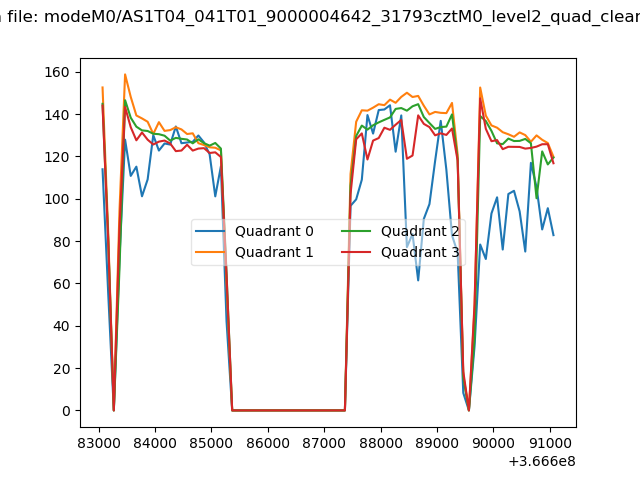

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

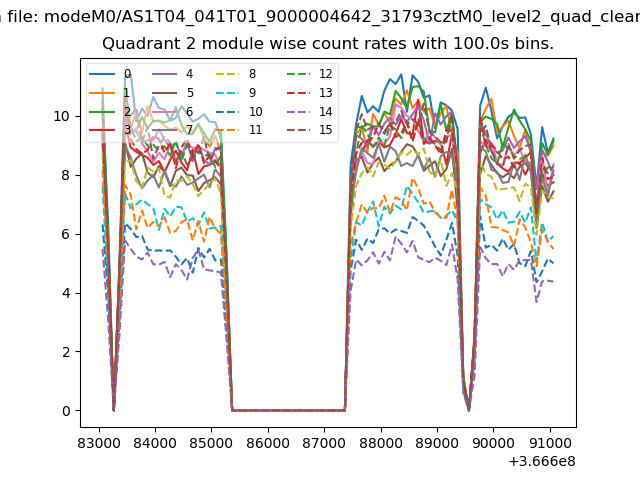

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

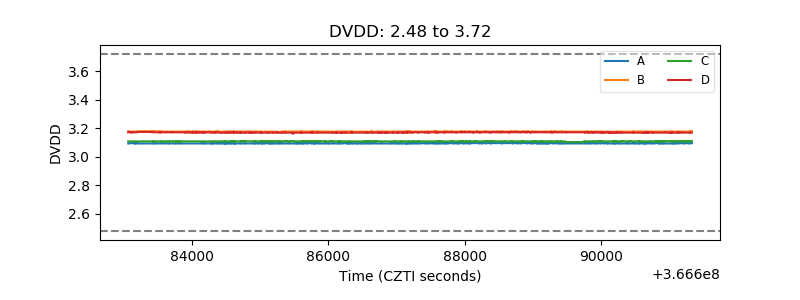

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

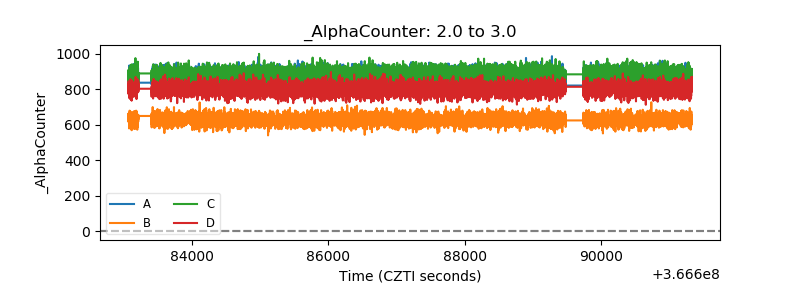

| Alpha Counter |  |

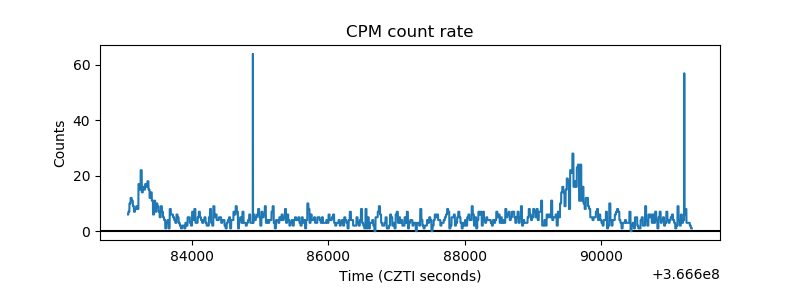

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

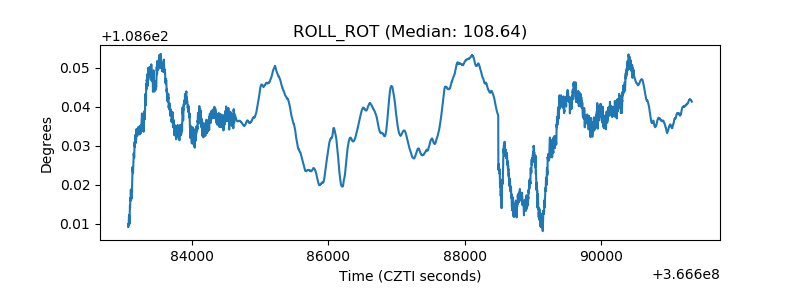

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
