| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_037T01_9000004644_31807cztM0_level2.evt | modeM0/AS1T04_037T01_9000004644_31807cztM0_level2_quad_clean.evt |
| Size (bytes) | 625,204,800 | 68,791,680 |
| Size | 596.2 MB | 65.6 MB |
| Events in quadrant A | 4,592,733 | 426,732 |
| Events in quadrant B | 6,169,508 | 416,250 |
| Events in quadrant C | 3,215,627 | 429,763 |
| Events in quadrant D | 4,564,425 | 404,054 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17327 | 1 |
| B | 0 | 22326 | 1 |
| C | 0 | 13164 | 1 |
| D | 0 | 17416 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5794 | 566 | 9.768726% |
| B | 5794 | 756 | 13.047981% |
| C | 5794 | 204 | 3.520884% |
| D | 5794 | 427 | 7.369693% |

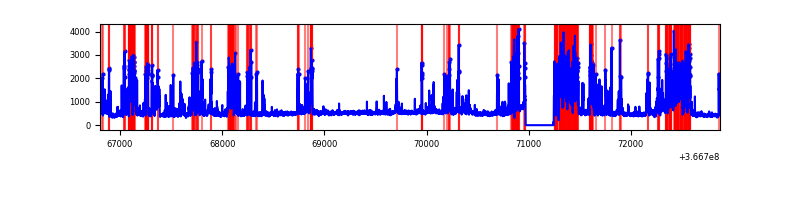

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

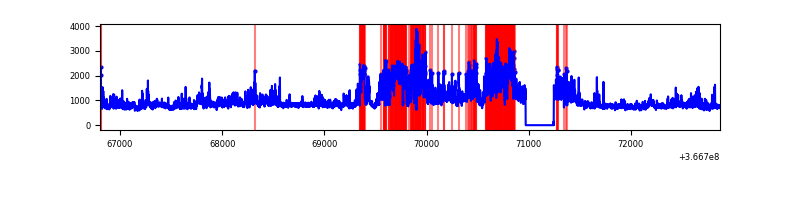

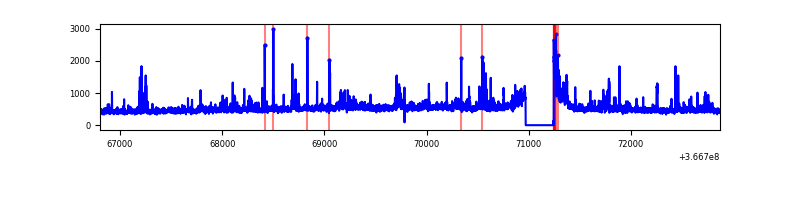

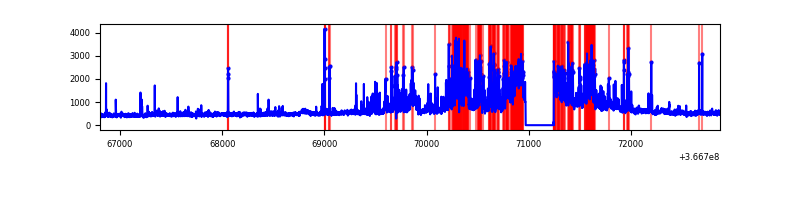

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6069 | 5795 | 405 | 405 | 6.67% | 6.99% |  |
| B | 6069 | 5795 | 401 | 401 | 6.61% | 6.92% |  |
| C | 6069 | 5794 | 16 | 16 | 0.26% | 0.28% |  |
| D | 6069 | 5795 | 325 | 325 | 5.36% | 5.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1923269 | 13758.61 | 689 | 676 | 139.7 |
| A | 13 | 254 | 11904 | 80.35 | 689 | 676 | 139.7 |
| A | 13 | 6 | 8233 | 54.08 | 689 | 676 | 139.7 |
| B | 6 | 159 | 1553333 | 11643.36 | 682 | 666 | 133.4 |
| B | 4 | 80 | 1103999 | 8273.83 | 682 | 666 | 133.4 |
| B | 10 | 245 | 763123 | 5717.62 | 682 | 666 | 133.4 |
| C | 0 | 10 | 301297 | 1866.7 | 679 | 683 | 161.0 |
| C | 14 | 238 | 140990 | 871.25 | 679 | 683 | 161.0 |
| C | 3 | 233 | 59403 | 364.63 | 679 | 683 | 161.0 |
| D | 12 | 218 | 1096038 | 6691.36 | 675 | 658 | 163.7 |
| D | 8 | 195 | 474651 | 2895.49 | 675 | 658 | 163.7 |
| D | 12 | 227 | 166371 | 1012.29 | 675 | 658 | 163.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

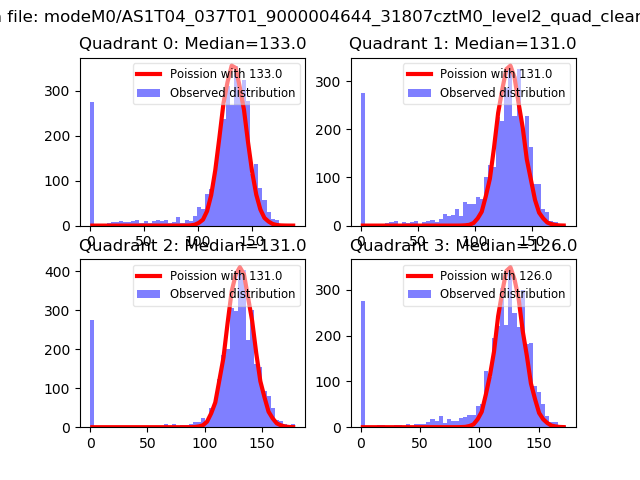

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

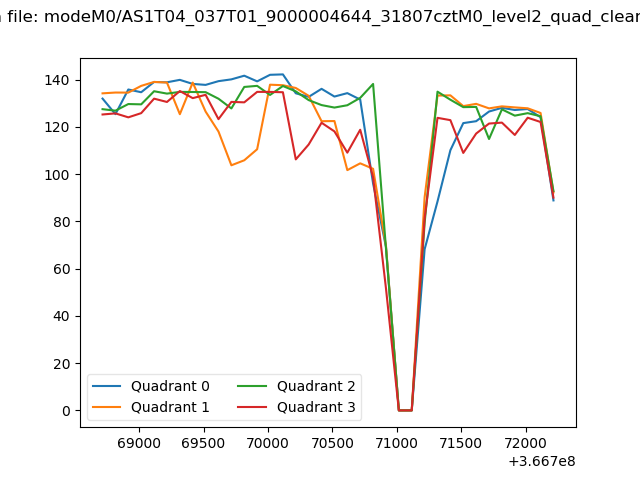

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

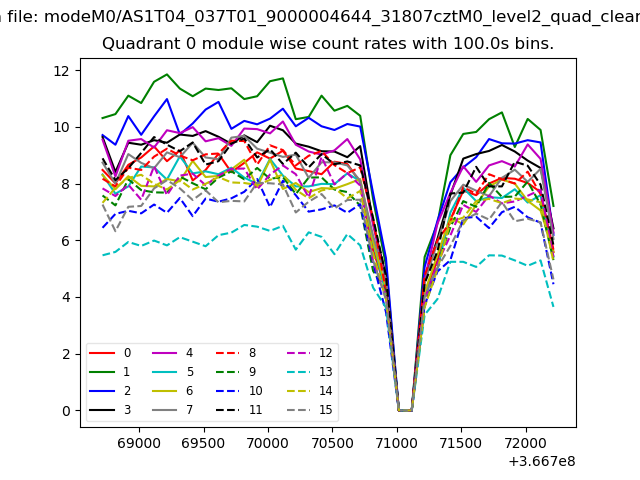

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

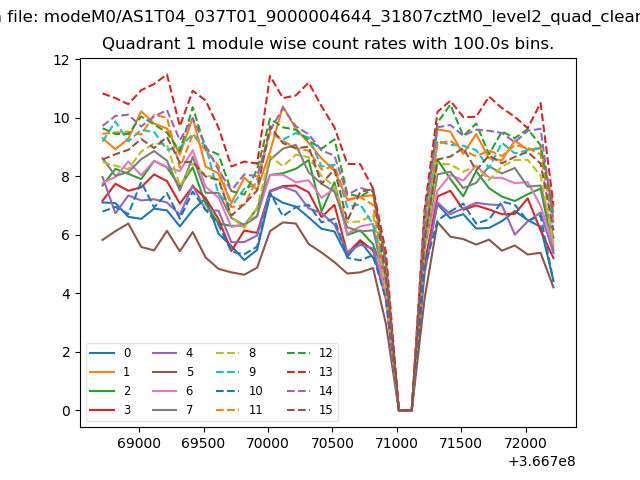

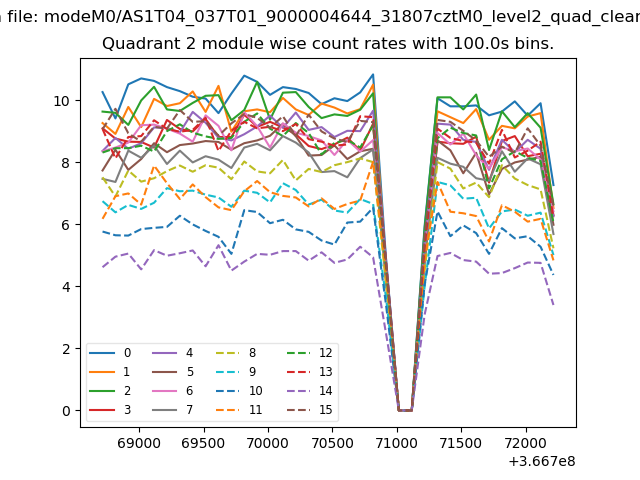

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

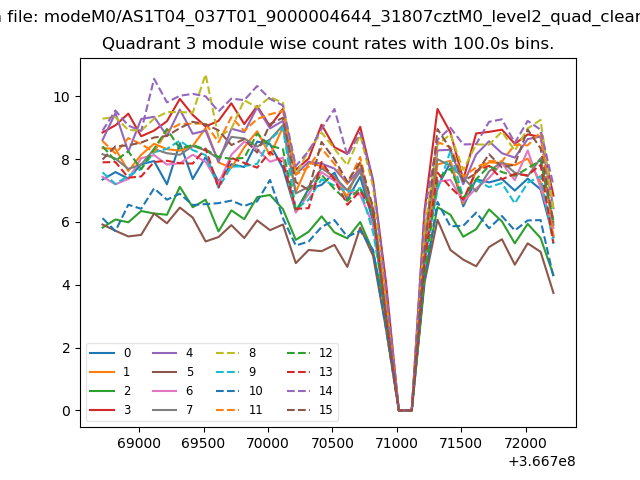

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

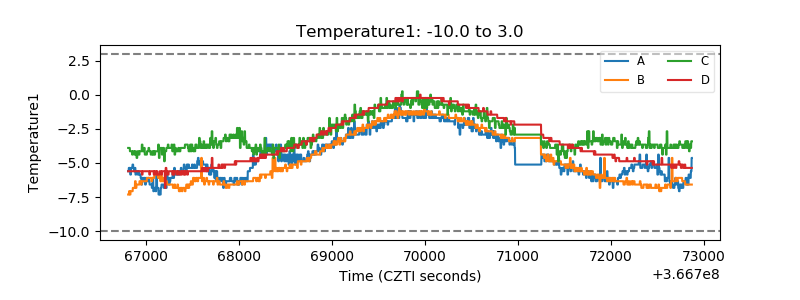

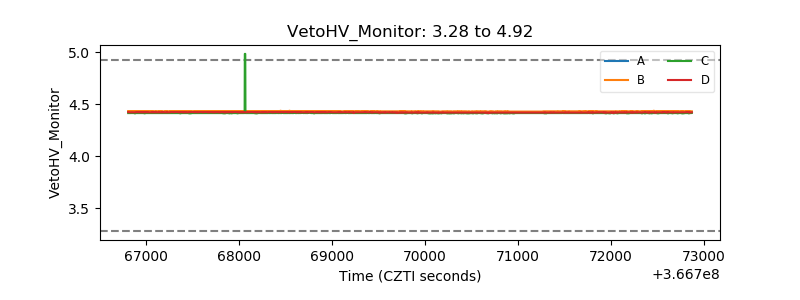

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

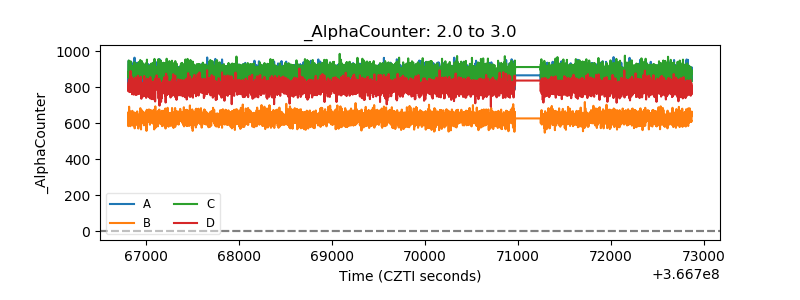

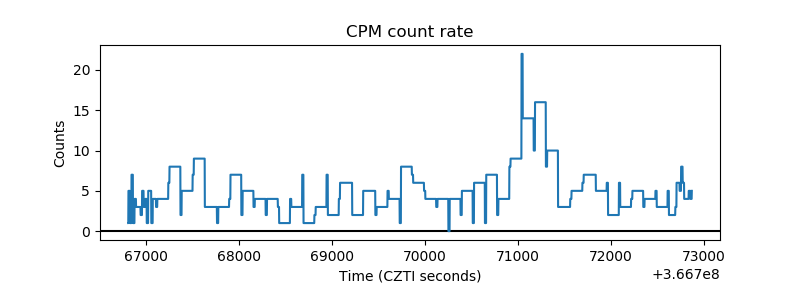

| Alpha Counter |  |
| _CPM_Rate |  |

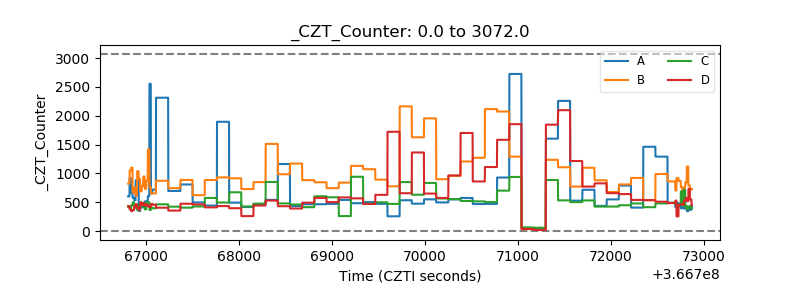

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

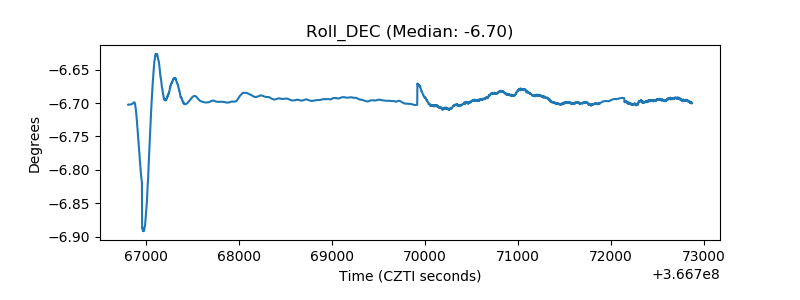

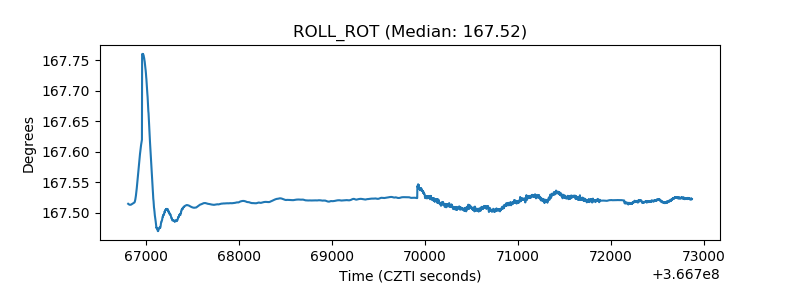

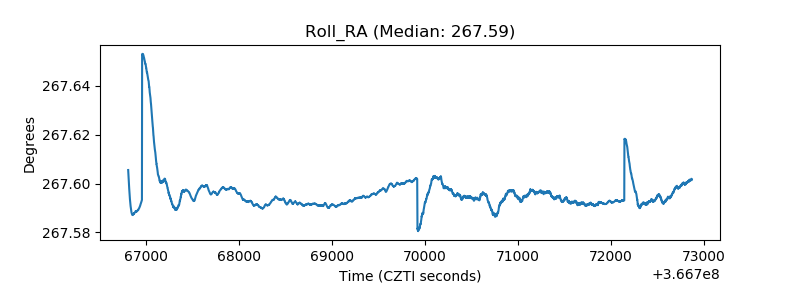

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

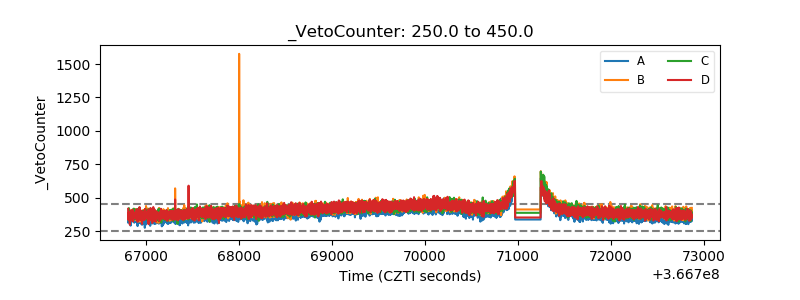

| Veto Counter |  |
