| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_037T01_9000004644_31987cztM0_level2.evt | modeM0/AS1T04_037T01_9000004644_31987cztM0_level2_quad_clean.evt |
| Size (bytes) | 191,799,360 | 32,961,600 |
| Size | 182.9 MB | 31.4 MB |
| Events in quadrant A | 1,250,453 | 222,047 |
| Events in quadrant B | 1,777,772 | 202,851 |
| Events in quadrant C | 1,325,631 | 202,359 |
| Events in quadrant D | 1,293,458 | 202,209 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 2 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7349 | 2304 |
| B | 0 | 11145 | 4344 |
| C | 0 | 7770 | 2446 |
| D | 0 | 7664 | 2473 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 72 | 24 |
| B | 0 | 72 | 28 |
| C | 0 | 72 | 26 |
| D | 0 | 72 | 24 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2413 | 18 | 0.745959% |
| B | 2150 | 66 | 3.069767% |
| C | 2402 | 50 | 2.081599% |
| D | 2402 | 11 | 0.457952% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

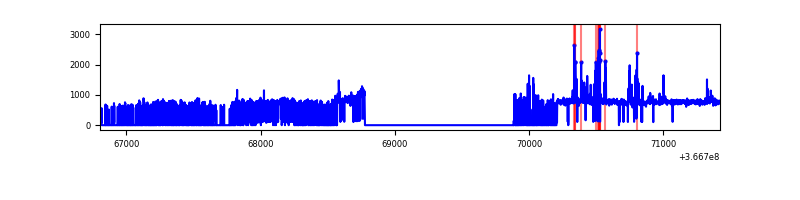

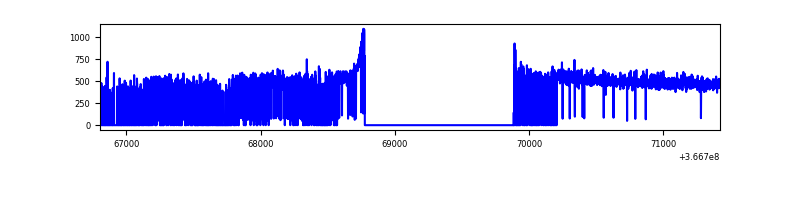

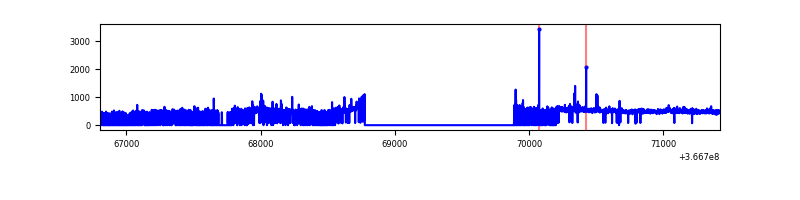

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4610 | 2863 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4604 | 2544 | 14 | 14 | 0.30% | 0.55% |  |
| C | 4616 | 2853 | 2 | 2 | 0.04% | 0.07% |  |
| D | 4610 | 2858 | 2 | 2 | 0.04% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 4711 | 66.1 | 323 | 317 | 66.5 |
| A | 3 | 137 | 3315 | 45.1 | 323 | 317 | 66.5 |
| A | 0 | 226 | 2678 | 35.52 | 323 | 317 | 66.5 |
| B | 6 | 159 | 542267 | 9891.2 | 280 | 273 | 54.8 |
| B | 10 | 245 | 116071 | 2113.27 | 280 | 273 | 54.8 |
| B | 0 | 213 | 6775 | 118.66 | 280 | 273 | 54.8 |
| C | 14 | 238 | 53179 | 734.86 | 302 | 304 | 72.0 |
| C | 3 | 233 | 31972 | 440.12 | 302 | 304 | 72.0 |
| C | 2 | 16 | 14135 | 192.22 | 302 | 304 | 72.0 |
| D | 8 | 195 | 95100 | 1261.85 | 308 | 298 | 75.1 |
| D | 12 | 233 | 21029 | 275.93 | 308 | 298 | 75.1 |
| D | 2 | 234 | 11185 | 144.9 | 308 | 298 | 75.1 |

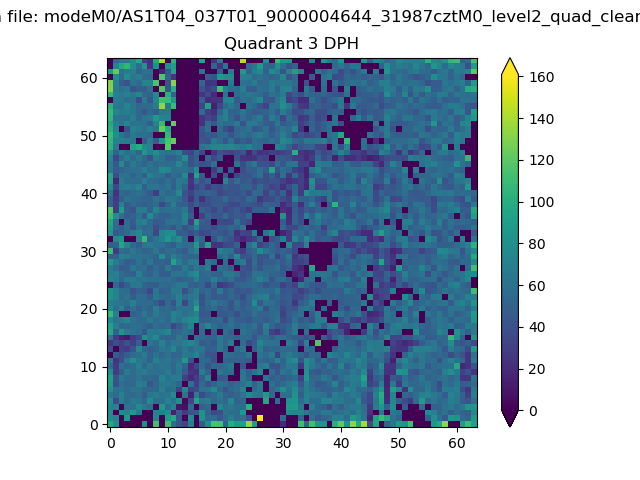

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

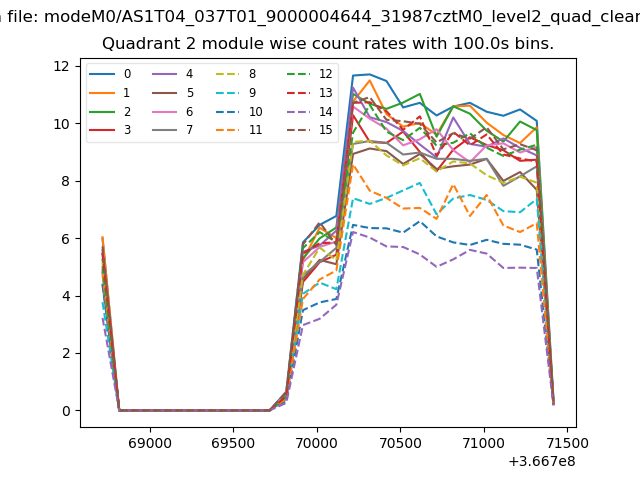

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

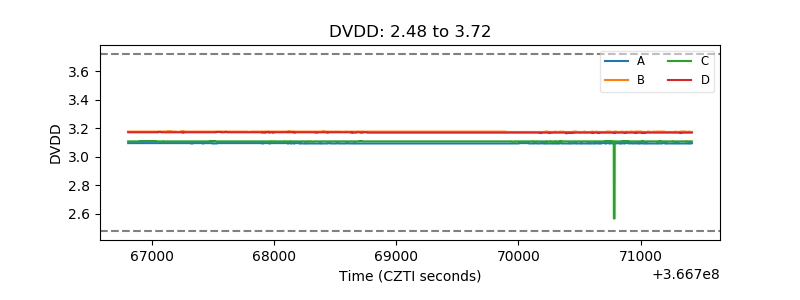

| D_VDD |  |

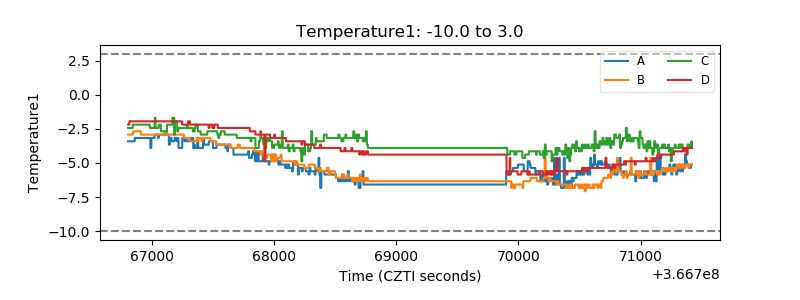

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

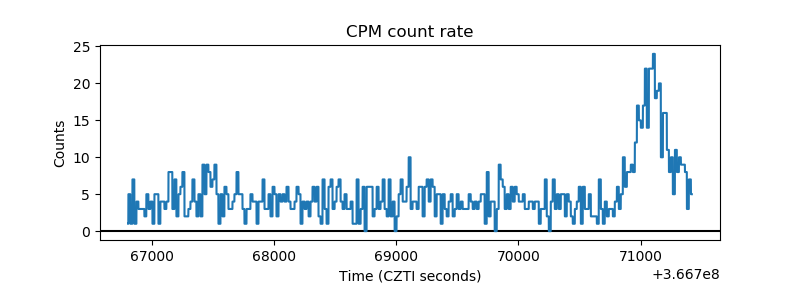

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
