| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_109T01_9000004646_31825cztM0_level2.evt | modeM0/AS1A10_109T01_9000004646_31825cztM0_level2_quad_clean.evt |
| Size (bytes) | 634,893,120 | 77,040,000 |
| Size | 605.5 MB | 73.5 MB |
| Events in quadrant A | 3,388,273 | 484,015 |
| Events in quadrant B | 7,150,455 | 461,231 |
| Events in quadrant C | 3,979,974 | 453,205 |
| Events in quadrant D | 4,238,541 | 449,409 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14228 | 2 |
| B | 0 | 26054 | 3 |
| C | 0 | 16063 | 2 |
| D | 0 | 17098 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6962 | 68 | 0.976731% |
| B | 6961 | 665 | 9.553225% |
| C | 6961 | 259 | 3.720730% |
| D | 6961 | 131 | 1.881914% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

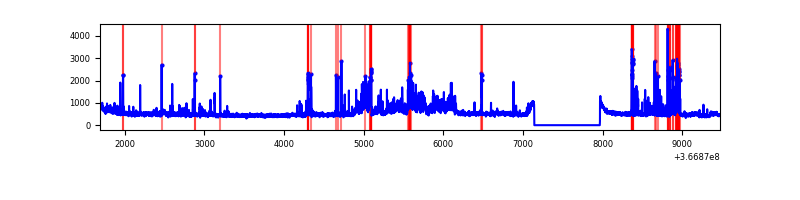

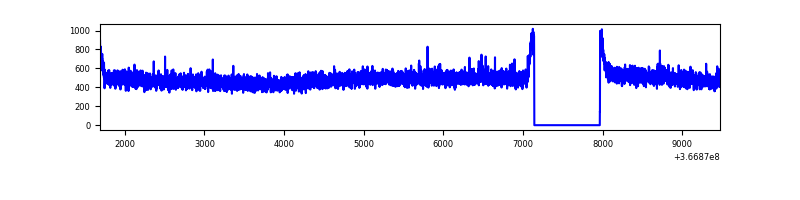

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7787 | 6963 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7786 | 6962 | 288 | 288 | 3.70% | 4.14% |  |
| C | 7786 | 6962 | 57 | 57 | 0.73% | 0.82% |  |
| D | 7786 | 6962 | 86 | 86 | 1.10% | 1.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13806 | 73.28 | 875 | 857 | 176.7 |
| A | 3 | 137 | 9089 | 46.58 | 875 | 857 | 176.7 |
| A | 13 | 6 | 9051 | 46.37 | 875 | 857 | 176.7 |
| B | 4 | 80 | 1809858 | 11175.77 | 839 | 818 | 161.9 |
| B | 6 | 159 | 1787438 | 11037.27 | 839 | 818 | 161.9 |
| B | 10 | 245 | 222048 | 1366.7 | 839 | 818 | 161.9 |
| C | 0 | 10 | 330160 | 1700.19 | 821 | 828 | 193.7 |
| C | 3 | 233 | 215025 | 1105.8 | 821 | 828 | 193.7 |
| C | 14 | 238 | 158533 | 814.16 | 821 | 828 | 193.7 |
| D | 12 | 233 | 513203 | 2536.18 | 837 | 815 | 202.0 |
| D | 8 | 195 | 262299 | 1294.28 | 837 | 815 | 202.0 |
| D | 12 | 79 | 206234 | 1016.77 | 837 | 815 | 202.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

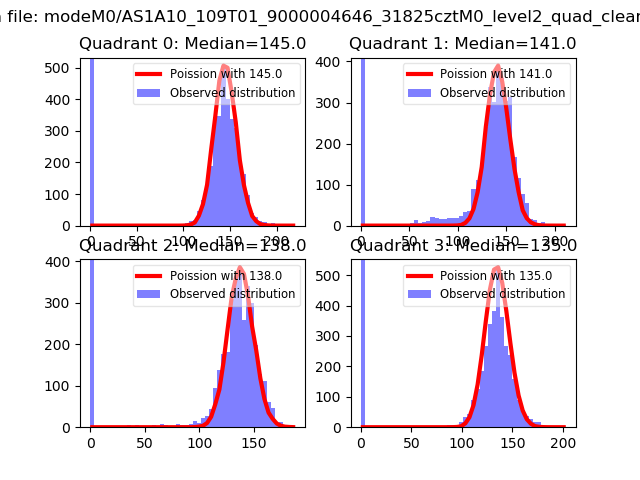

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

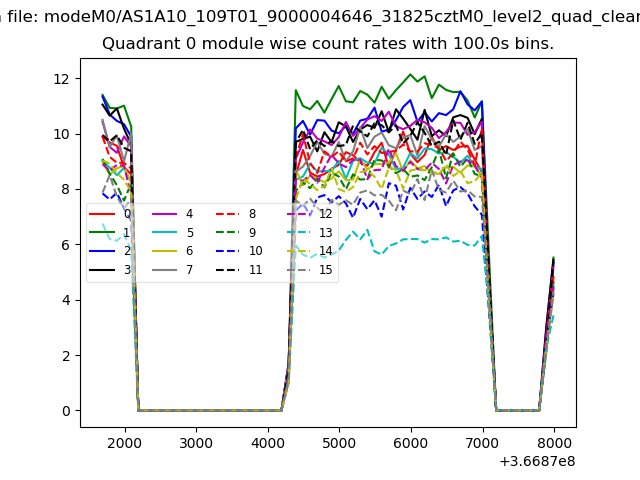

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

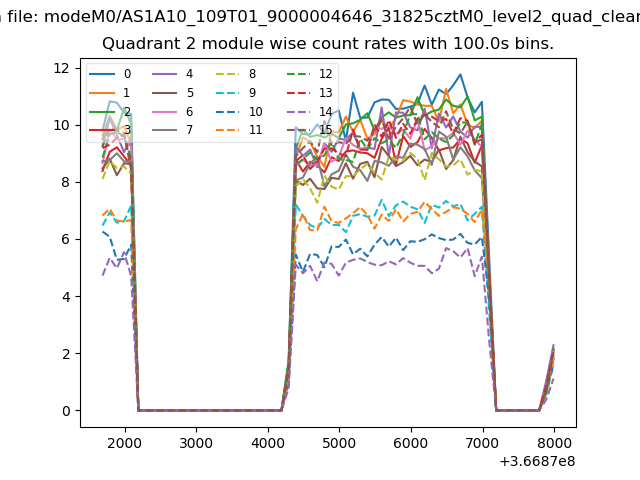

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

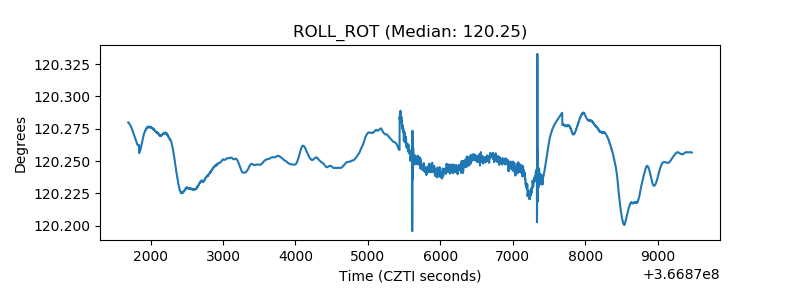

| _ROLL_ROT |  |

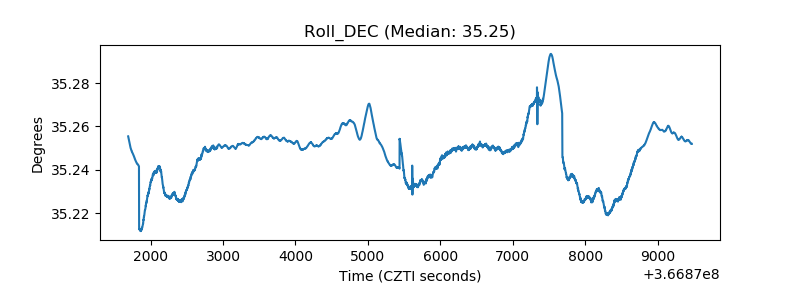

| _Roll_DEC |  |

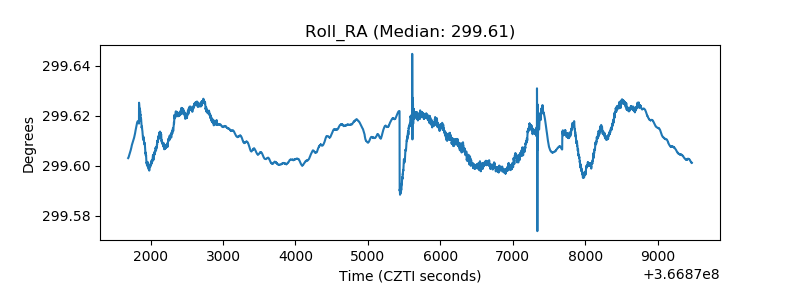

| _Roll_RA |  |
| Veto Counter |  |
