| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_109T01_9000004646_31876cztM0_level2.evt | modeM0/AS1A10_109T01_9000004646_31876cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,183,680 | 123,275,520 |
| Size | 559.0 MB | 117.6 MB |
| Events in quadrant A | 3,545,182 | 853,205 |
| Events in quadrant B | 5,299,536 | 835,577 |
| Events in quadrant C | 3,944,839 | 803,116 |
| Events in quadrant D | 4,519,141 | 784,203 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14616 | 2 |
| B | 0 | 20191 | 2 |
| C | 0 | 16230 | 2 |
| D | 0 | 17709 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6568 | 106 | 1.613886% |
| B | 6568 | 217 | 3.303898% |
| C | 6568 | 261 | 3.973812% |
| D | 6567 | 189 | 2.878026% |

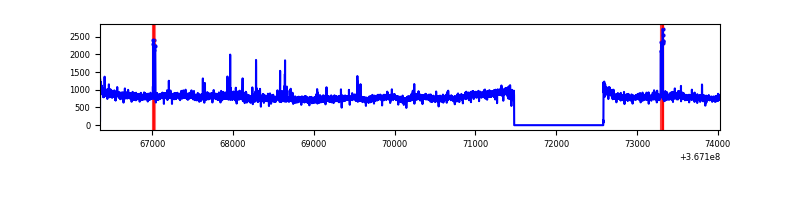

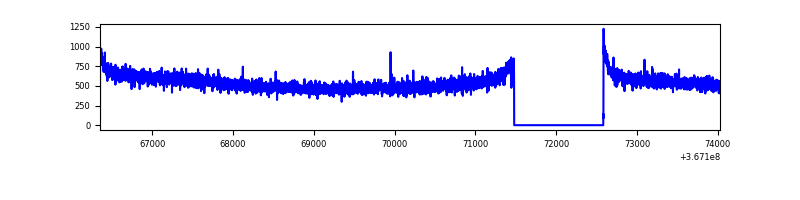

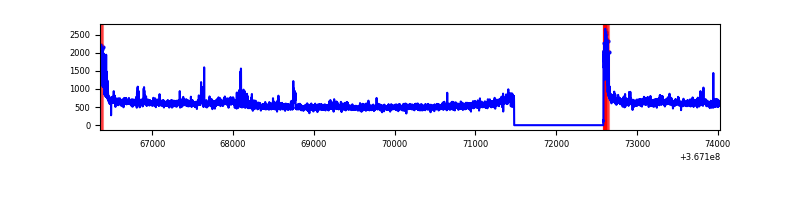

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7673 | 6569 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7673 | 6569 | 13 | 13 | 0.17% | 0.20% |  |
| C | 7673 | 6569 | 24 | 24 | 0.31% | 0.37% |  |
| D | 7672 | 6568 | 101 | 101 | 1.32% | 1.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10658 | 53.62 | 918 | 902 | 181.9 |
| A | 3 | 137 | 8684 | 42.77 | 918 | 902 | 181.9 |
| A | 0 | 226 | 7695 | 37.33 | 918 | 902 | 181.9 |
| B | 6 | 159 | 1682370 | 10057.47 | 888 | 869 | 167.2 |
| B | 0 | 213 | 31543 | 183.47 | 888 | 869 | 167.2 |
| B | 10 | 245 | 30675 | 178.28 | 888 | 869 | 167.2 |
| C | 3 | 233 | 259284 | 1276.32 | 867 | 878 | 202.5 |
| C | 14 | 238 | 143869 | 706.26 | 867 | 878 | 202.5 |
| C | 0 | 10 | 133559 | 655.34 | 867 | 878 | 202.5 |
| D | 8 | 195 | 645397 | 3136.08 | 882 | 862 | 205.5 |
| D | 2 | 250 | 132447 | 640.25 | 882 | 862 | 205.5 |
| D | 10 | 199 | 127487 | 616.11 | 882 | 862 | 205.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

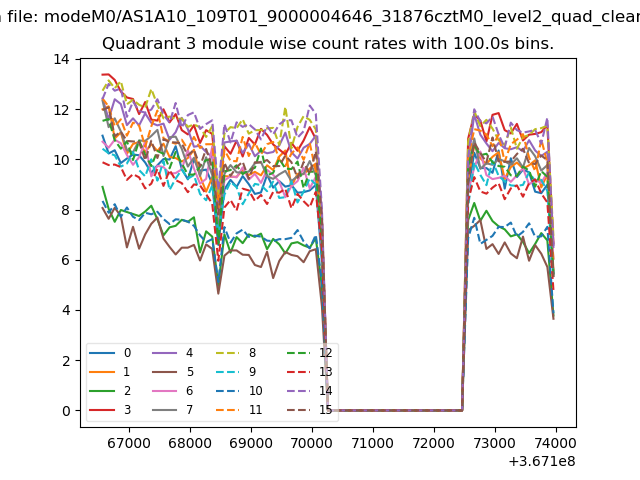

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

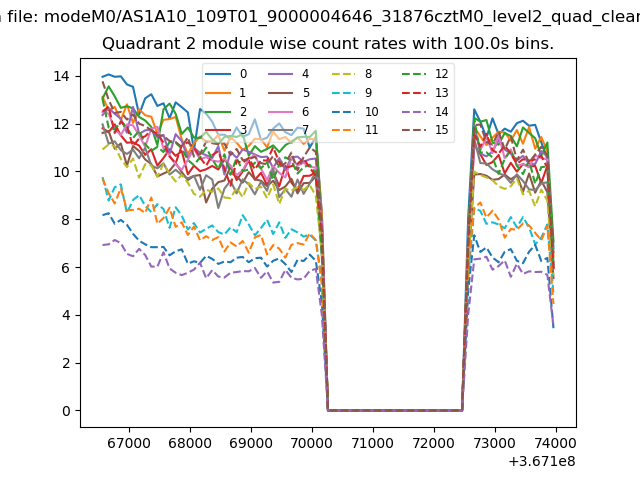

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

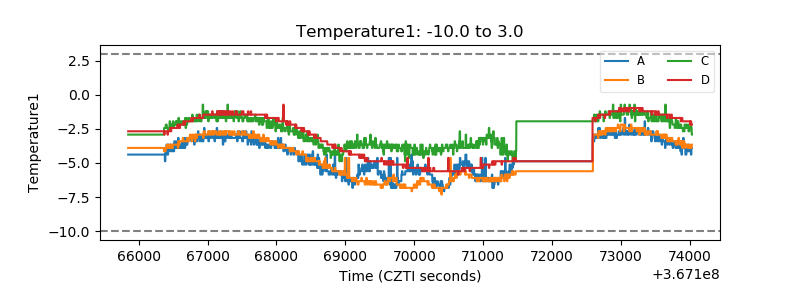

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

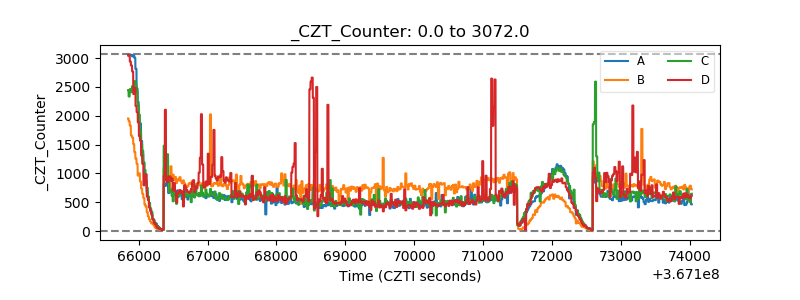

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

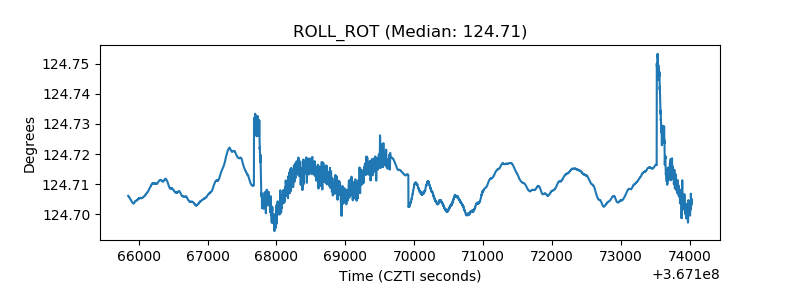

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
