| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T09_9000004654_31903cztM0_level2.evt | modeM0/AS1A10_123T09_9000004654_31903cztM0_level2_quad_clean.evt |
| Size (bytes) | 754,750,080 | 123,050,880 |
| Size | 719.8 MB | 117.4 MB |
| Events in quadrant A | 3,554,819 | 911,572 |
| Events in quadrant B | 6,471,868 | 846,501 |
| Events in quadrant C | 5,504,941 | 726,352 |
| Events in quadrant D | 6,885,052 | 785,739 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14606 | 1 |
| B | 0 | 23447 | 1 |
| C | 0 | 20945 | 1 |
| D | 0 | 25183 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6535 | 97 | 1.484315% |
| B | 6536 | 622 | 9.516524% |
| C | 6536 | 1605 | 24.556304% |
| D | 6536 | 726 | 11.107711% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

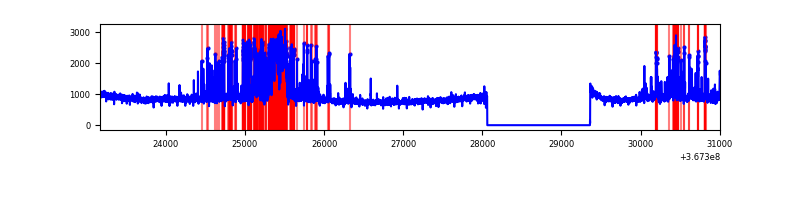

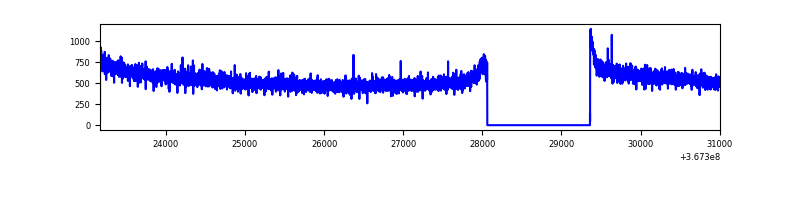

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7835 | 6536 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7836 | 6537 | 430 | 430 | 5.49% | 6.58% |  |
| C | 7836 | 6537 | 165 | 165 | 2.11% | 2.52% |  |
| D | 7836 | 6537 | 692 | 692 | 8.83% | 10.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11638 | 59.52 | 921 | 906 | 180.3 |
| A | 3 | 137 | 8001 | 39.35 | 921 | 906 | 180.3 |
| A | 0 | 226 | 7988 | 39.28 | 921 | 906 | 180.3 |
| B | 6 | 159 | 1745669 | 10984.52 | 866 | 848 | 158.8 |
| B | 5 | 172 | 1105963 | 6957.25 | 866 | 848 | 158.8 |
| B | 0 | 155 | 51032 | 315.93 | 866 | 848 | 158.8 |
| C | 3 | 233 | 1206542 | 6875.57 | 769 | 775 | 175.4 |
| C | 14 | 254 | 422259 | 2403.4 | 769 | 775 | 175.4 |
| C | 14 | 238 | 415251 | 2363.44 | 769 | 775 | 175.4 |
| D | 7 | 238 | 1074296 | 5505.03 | 845 | 828 | 195.0 |
| D | 8 | 195 | 1027055 | 5262.77 | 845 | 828 | 195.0 |
| D | 12 | 33 | 789729 | 4045.69 | 845 | 828 | 195.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

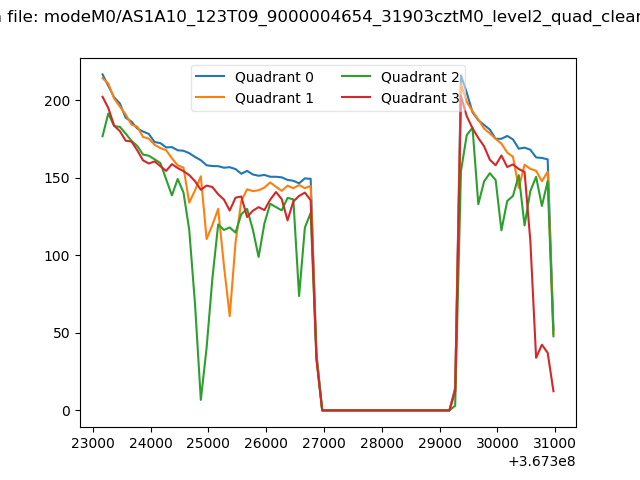

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

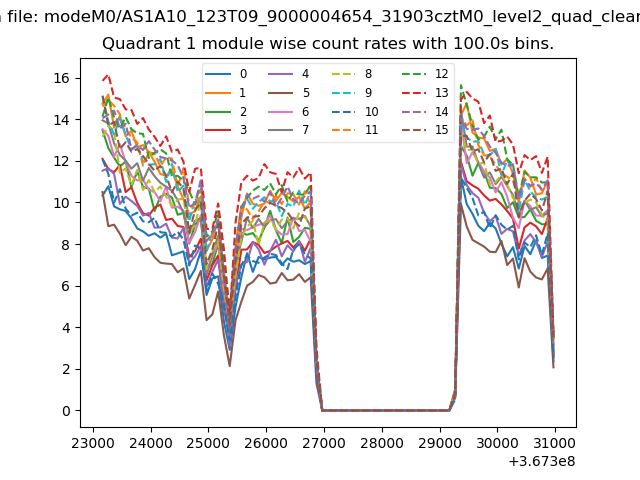

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

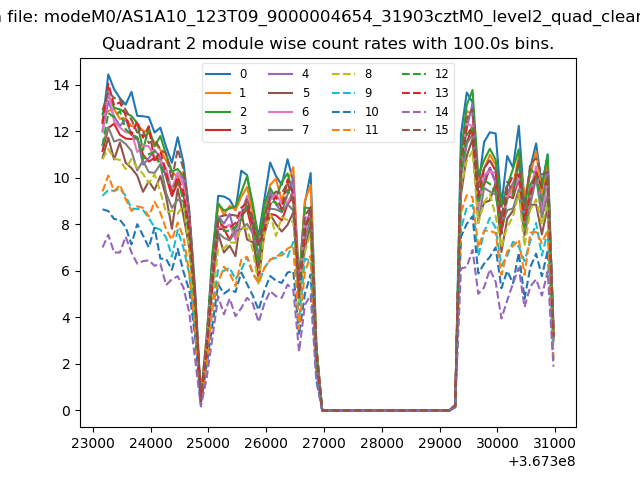

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

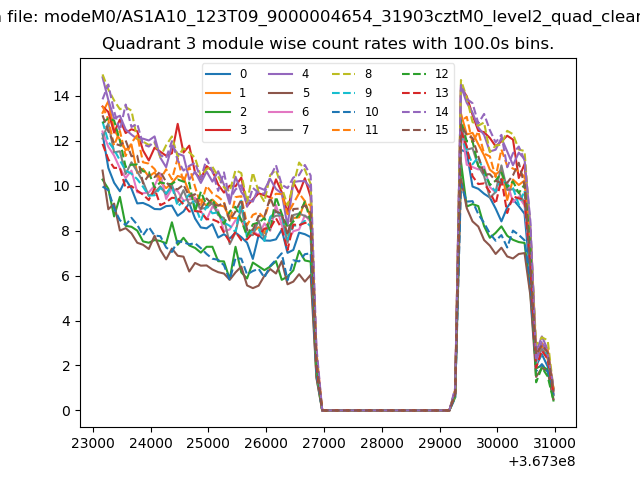

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

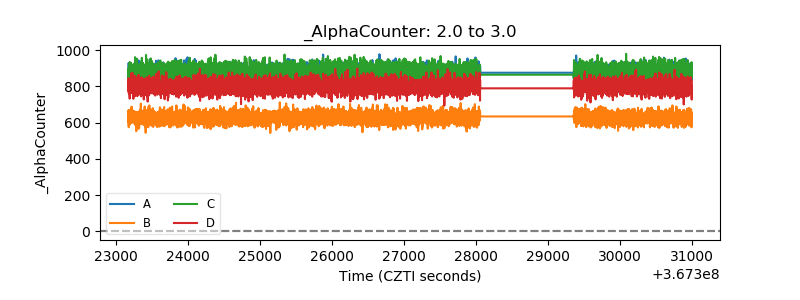

| Alpha Counter |  |

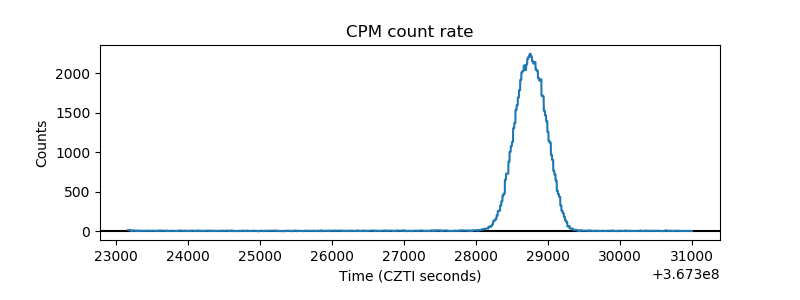

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
