| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T09_9000004654_31917cztM0_level2.evt | modeM0/AS1A10_123T09_9000004654_31917cztM0_level2_quad_clean.evt |
| Size (bytes) | 765,403,200 | 15,756,480 |
| Size | 729.9 MB | 15.0 MB |
| Events in quadrant A | 2,621,147 | 40,062 |
| Events in quadrant B | 5,774,033 | 34,606 |
| Events in quadrant C | 3,981,872 | 36,319 |
| Events in quadrant D | 10,470,797 | 18,489 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10790 | 31 |
| B | 0 | 20509 | 48 |
| C | 0 | 15507 | 44 |
| D | 0 | 34575 | 117 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 1 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4932 | 88 | 1.784266% |
| B | 4931 | 884 | 17.927398% |
| C | 4932 | 302 | 6.123277% |
| D | 4930 | 3388 | 68.722110% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6272 | 4937 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6272 | 4938 | 644 | 644 | 10.27% | 13.04% |  |
| C | 6271 | 4937 | 37 | 37 | 0.59% | 0.75% |  |
| D | 6271 | 4934 | 3393 | 3393 | 54.11% | 68.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 13273 | 94.96 | 675 | 664 | 132.8 |
| A | 13 | 254 | 10159 | 71.5 | 675 | 664 | 132.8 |
| A | 3 | 137 | 6079 | 40.78 | 675 | 664 | 132.8 |
| B | 6 | 159 | 1267430 | 11053.33 | 618 | 605 | 114.6 |
| B | 10 | 245 | 637234 | 5554.73 | 618 | 605 | 114.6 |
| B | 5 | 172 | 485761 | 4233.09 | 618 | 605 | 114.6 |
| C | 3 | 233 | 1082279 | 7550.01 | 616 | 620 | 143.3 |
| C | 0 | 10 | 284860 | 1984.0 | 616 | 620 | 143.3 |
| C | 14 | 238 | 127114 | 882.93 | 616 | 620 | 143.3 |
| D | 12 | 33 | 7550838 | 61340.89 | 522 | 510 | 123.1 |
| D | 8 | 195 | 746858 | 6063.53 | 522 | 510 | 123.1 |
| D | 12 | 233 | 81568 | 658.53 | 522 | 510 | 123.1 |

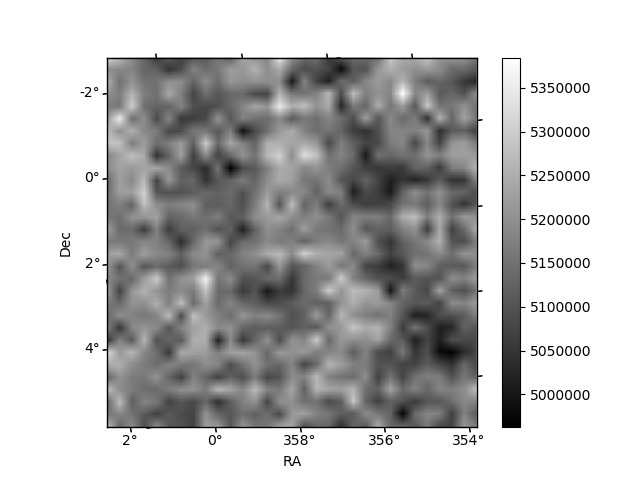

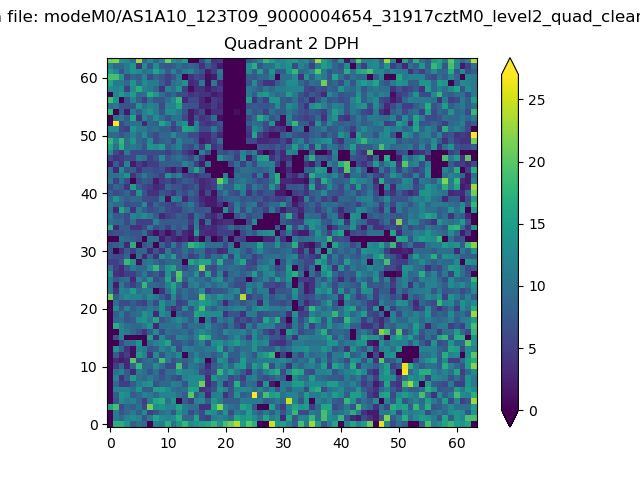

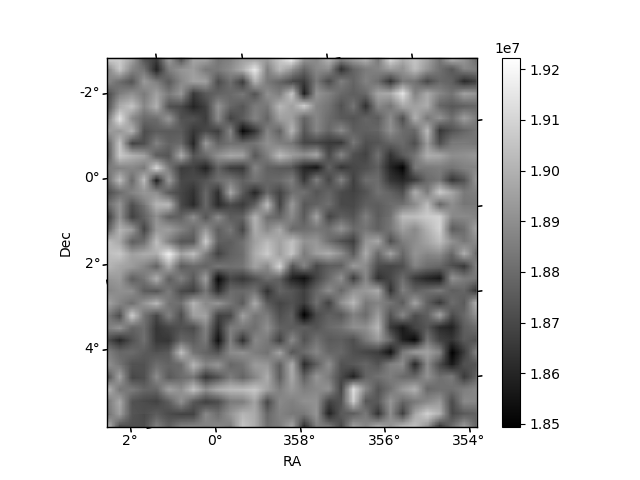

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

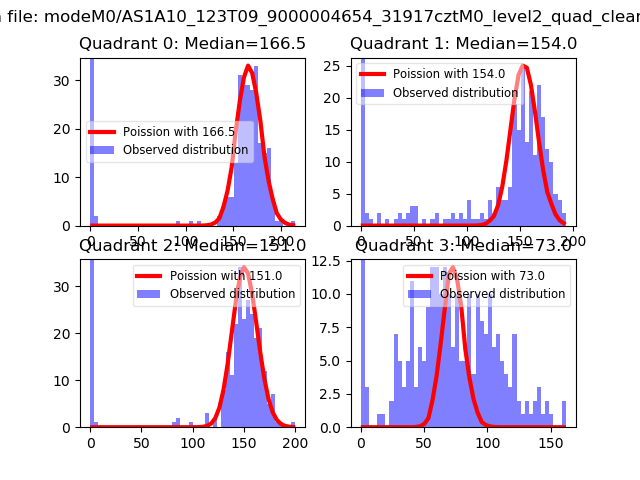

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

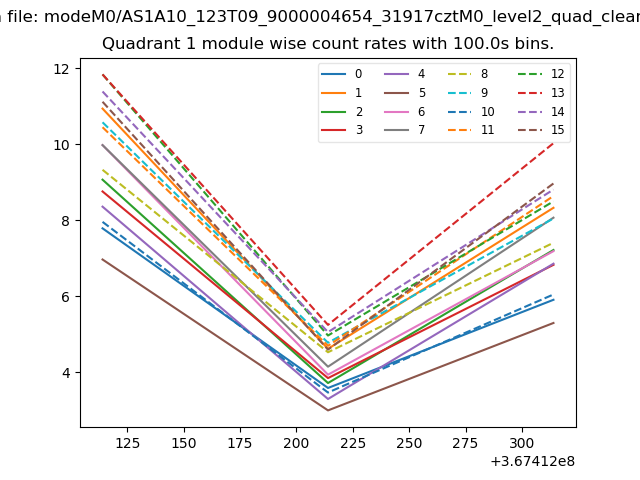

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

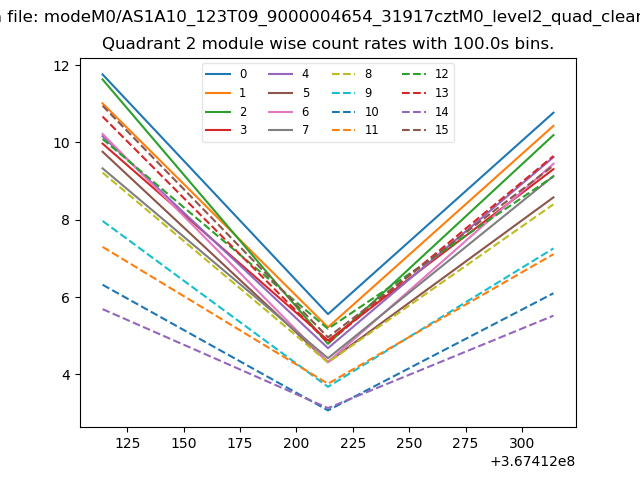

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

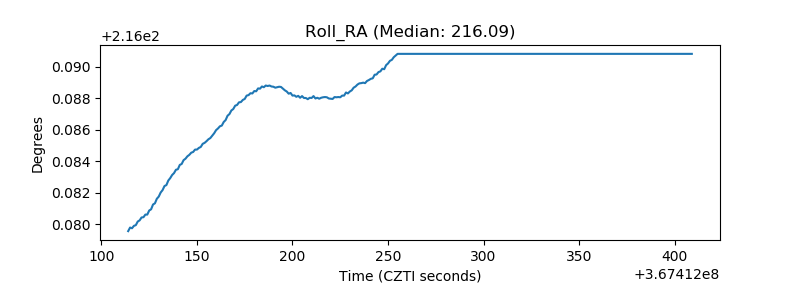

| _Roll_RA |  |

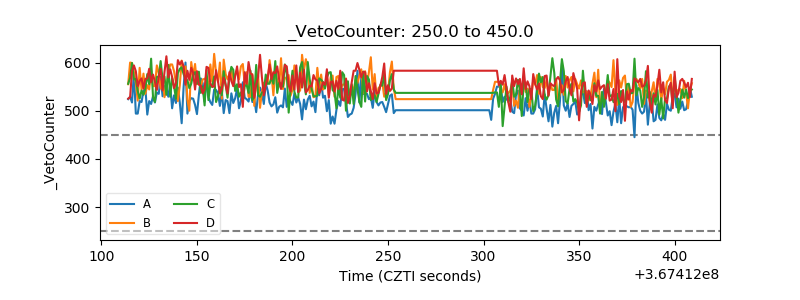

| Veto Counter |  |
