| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T09_9000004654_31923cztM0_level2.evt | modeM0/AS1A10_123T09_9000004654_31923cztM0_level2_quad_clean.evt |
| Size (bytes) | 839,105,280 | 98,651,520 |
| Size | 800.2 MB | 94.1 MB |
| Events in quadrant A | 3,455,134 | 664,265 |
| Events in quadrant B | 6,232,846 | 638,796 |
| Events in quadrant C | 6,860,216 | 589,986 |
| Events in quadrant D | 8,369,302 | 581,993 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15130 | 1 |
| B | 0 | 24092 | 2 |
| C | 0 | 25589 | 1 |
| D | 0 | 30046 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7355 | 37 | 0.503059% |
| B | 7355 | 287 | 3.902107% |
| C | 7355 | 892 | 12.127804% |
| D | 7355 | 828 | 11.257648% |

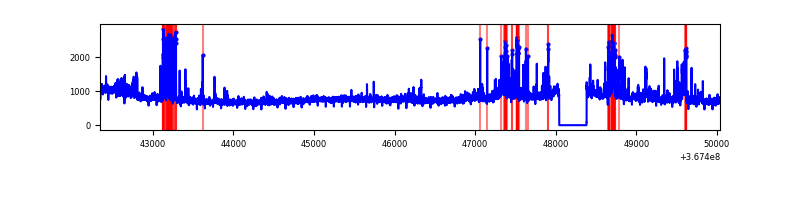

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7695 | 7356 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7695 | 7356 | 115 | 115 | 1.49% | 1.56% |  |
| C | 7695 | 7356 | 159 | 159 | 2.07% | 2.16% |  |
| D | 7695 | 7356 | 671 | 671 | 8.72% | 9.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 23159 | 126.29 | 881 | 862 | 176.5 |
| A | 13 | 6 | 20350 | 110.38 | 881 | 862 | 176.5 |
| A | 13 | 254 | 15213 | 81.28 | 881 | 862 | 176.5 |
| B | 6 | 159 | 2126328 | 12957.67 | 862 | 841 | 164.0 |
| B | 4 | 80 | 277281 | 1685.27 | 862 | 841 | 164.0 |
| B | 5 | 172 | 264012 | 1604.38 | 862 | 841 | 164.0 |
| C | 3 | 233 | 3098640 | 15975.92 | 818 | 822 | 193.9 |
| C | 0 | 10 | 241295 | 1240.16 | 818 | 822 | 193.9 |
| C | 14 | 238 | 142869 | 732.56 | 818 | 822 | 193.9 |
| D | 8 | 195 | 2626744 | 13255.32 | 824 | 801 | 198.1 |
| D | 12 | 233 | 952717 | 4805.11 | 824 | 801 | 198.1 |
| D | 12 | 33 | 718593 | 3623.29 | 824 | 801 | 198.1 |

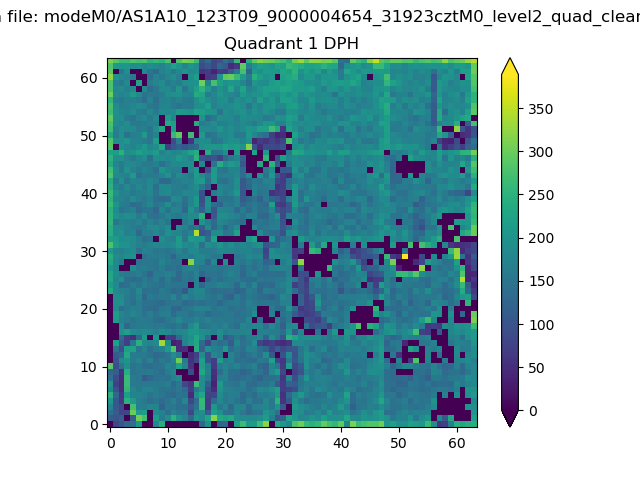

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

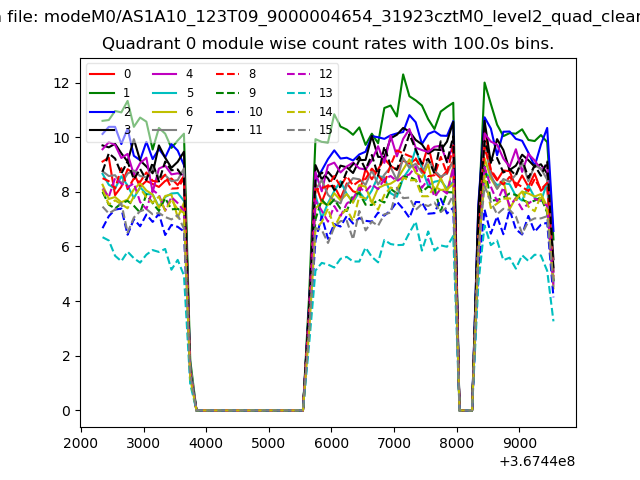

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

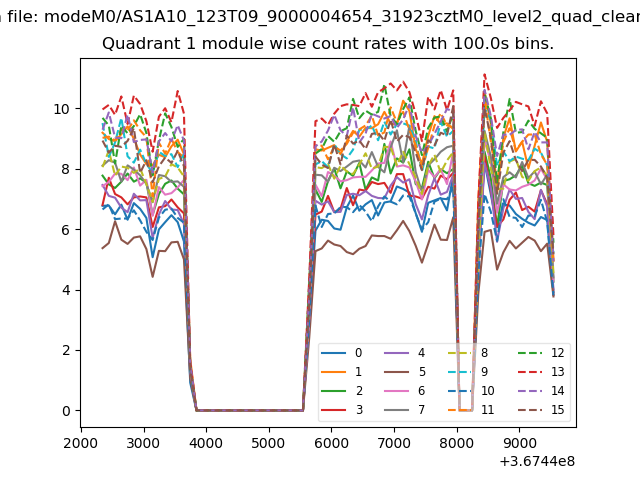

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

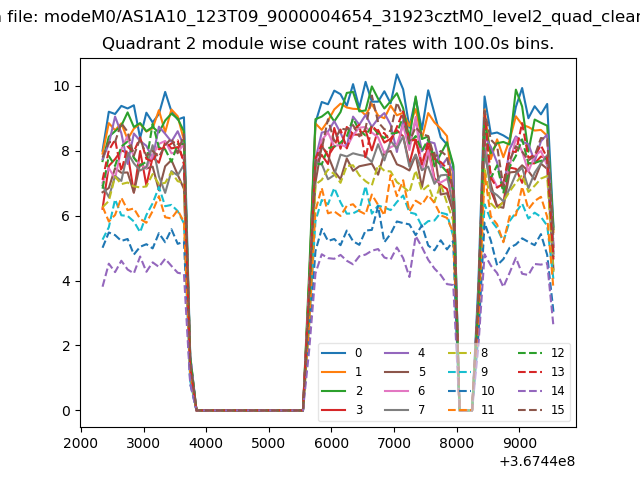

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

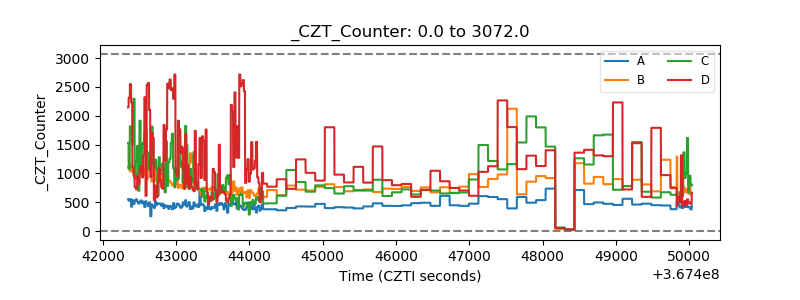

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

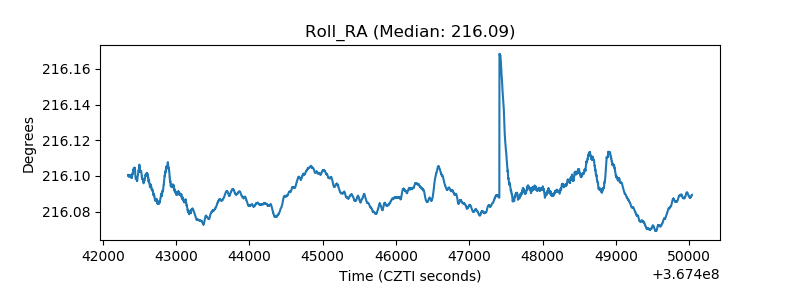

| _Roll_RA |  |

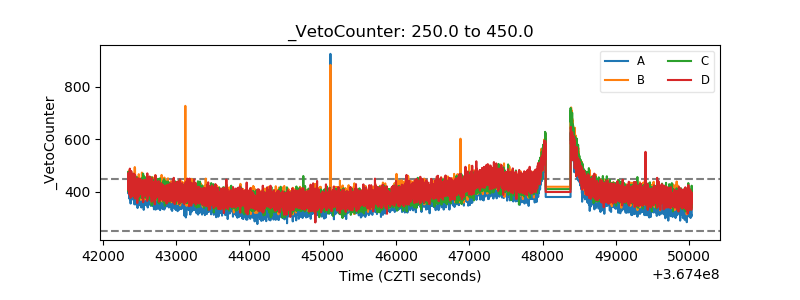

| Veto Counter |  |
