| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T09_9000004654_32094cztM0_level2.evt | modeM0/AS1A10_123T09_9000004654_32094cztM0_level2_quad_clean.evt |
| Size (bytes) | 196,888,320 | 10,177,920 |
| Size | 187.8 MB | 9.7 MB |
| Events in quadrant A | 1,145,164 | 43,473 |
| Events in quadrant B | 1,739,121 | 40,896 |
| Events in quadrant C | 1,191,622 | 38,341 |
| Events in quadrant D | 1,748,428 | 39,246 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10662 | 5963 |
| B | 0 | 17598 | 11163 |
| C | 0 | 11379 | 6606 |
| D | 0 | 23496 | 16964 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 107 | 63 |
| B | 0 | 104 | 62 |
| C | 0 | 106 | 68 |
| D | 0 | 107 | 63 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 2 |
| B | 0 | 7 | 2 |
| C | 0 | 7 | 1 |
| D | 0 | 7 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2195 | 93 | 4.236902% |
| B | 1868 | 173 | 9.261242% |
| C | 2133 | 133 | 6.235349% |
| D | 1812 | 161 | 8.885210% |

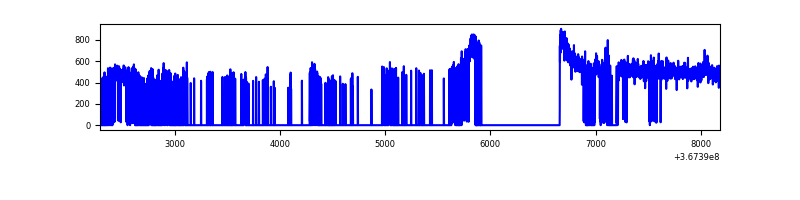

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5889 | 2563 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5872 | 2132 | 8 | 8 | 0.14% | 0.38% |  |
| C | 5868 | 2493 | 2 | 2 | 0.03% | 0.08% |  |
| D | 5810 | 2029 | 45 | 45 | 0.77% | 2.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 4509 | 68.78 | 295 | 288 | 61.4 |
| A | 13 | 254 | 4028 | 60.95 | 295 | 288 | 61.4 |
| A | 3 | 137 | 2896 | 42.5 | 295 | 288 | 61.4 |
| B | 6 | 159 | 457203 | 9174.06 | 244 | 237 | 49.8 |
| B | 10 | 245 | 267787 | 5371.34 | 244 | 237 | 49.8 |
| B | 5 | 172 | 21673 | 430.35 | 244 | 237 | 49.8 |
| C | 0 | 10 | 65950 | 1012.68 | 271 | 272 | 64.9 |
| C | 14 | 238 | 48644 | 745.84 | 271 | 272 | 64.9 |
| C | 4 | 175 | 7315 | 108.6 | 271 | 272 | 64.9 |
| D | 8 | 195 | 351539 | 5992.57 | 239 | 231 | 58.6 |
| D | 12 | 79 | 306639 | 5226.67 | 239 | 231 | 58.6 |
| D | 12 | 233 | 65701 | 1116.78 | 239 | 231 | 58.6 |

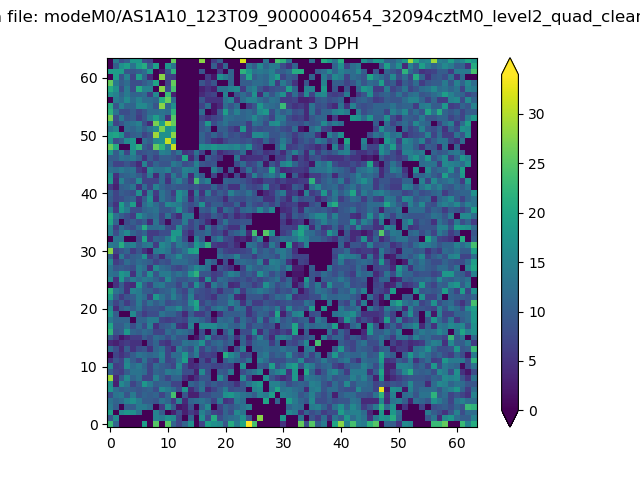

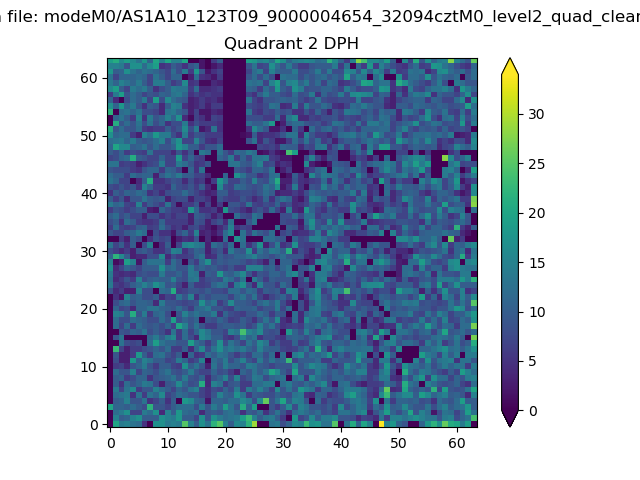

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

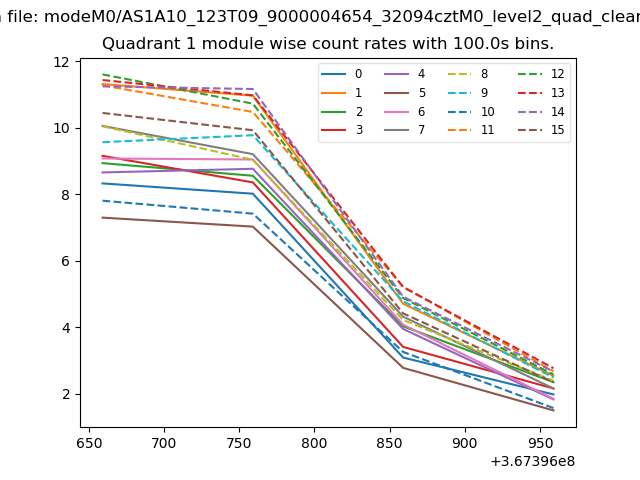

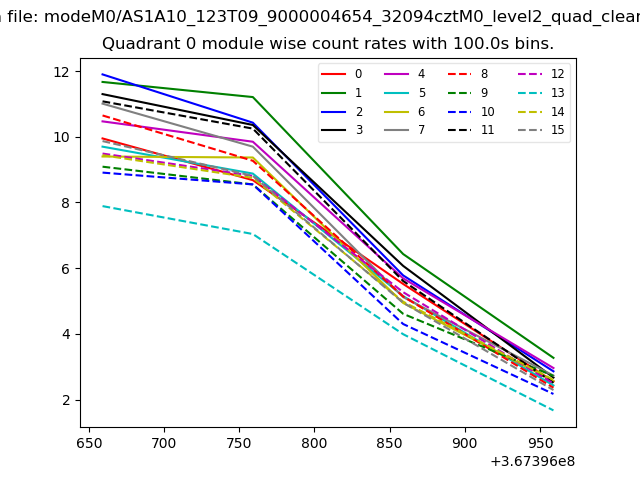

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

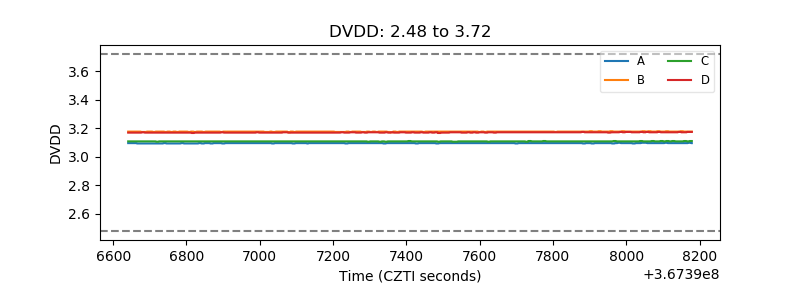

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

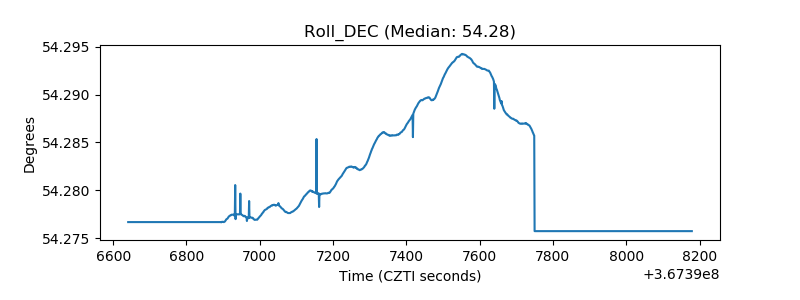

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
