| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T04_9000004660_31940cztM0_level2.evt | modeM0/AS1C06_002T04_9000004660_31940cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,014,272,640 | 161,553,600 |
| Size | 967.3 MB | 154.1 MB |
| Events in quadrant A | 4,595,241 | 1,114,758 |
| Events in quadrant B | 8,261,987 | 1,069,545 |
| Events in quadrant C | 9,580,441 | 991,085 |
| Events in quadrant D | 7,622,754 | 1,040,597 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 202 | 2 |
| B | 0 | 202 | 2 |
| C | 0 | 202 | 2 |
| D | 0 | 202 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20290 | 317 |
| B | 0 | 32655 | 541 |
| C | 0 | 35741 | 436 |
| D | 0 | 29711 | 346 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9754 | 37 | 0.379332% |
| B | 9747 | 571 | 5.858213% |
| C | 9748 | 1631 | 16.731637% |
| D | 9758 | 256 | 2.623488% |

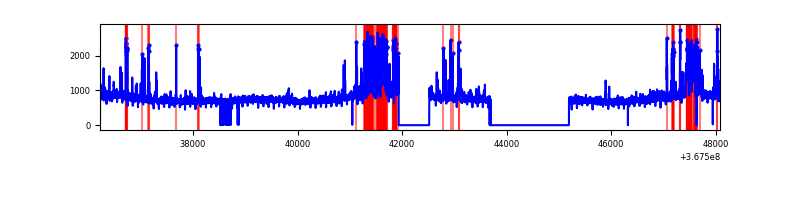

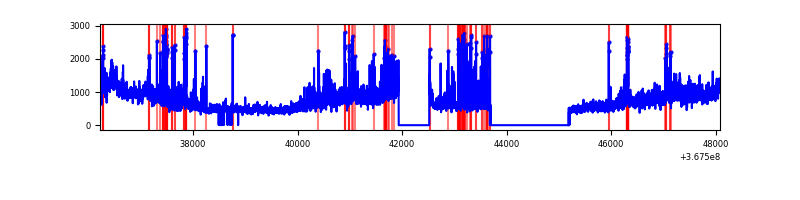

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11864 | 9773 | 1 | 1 | 0.01% | 0.01% |  |
| B | 11864 | 9776 | 273 | 273 | 2.30% | 2.79% |  |
| C | 11864 | 9773 | 288 | 288 | 2.43% | 2.95% |  |
| D | 11864 | 9785 | 161 | 161 | 1.36% | 1.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 23641 | 95.96 | 1176 | 1149 | 234.4 |
| A | 12 | 96 | 22484 | 91.03 | 1176 | 1149 | 234.4 |
| A | 13 | 254 | 21173 | 85.43 | 1176 | 1149 | 234.4 |
| B | 6 | 159 | 2713435 | 12633.39 | 1134 | 1105 | 214.7 |
| B | 5 | 172 | 601868 | 2798.21 | 1134 | 1105 | 214.7 |
| B | 0 | 155 | 200396 | 928.25 | 1134 | 1105 | 214.7 |
| C | 3 | 233 | 4878114 | 19589.5 | 1072 | 1079 | 249.0 |
| C | 14 | 238 | 240825 | 962.98 | 1072 | 1079 | 249.0 |
| C | 14 | 254 | 100877 | 400.86 | 1072 | 1079 | 249.0 |
| D | 8 | 195 | 2169654 | 7993.8 | 1137 | 1105 | 271.3 |
| D | 12 | 33 | 428910 | 1576.99 | 1137 | 1105 | 271.3 |
| D | 13 | 249 | 372033 | 1367.33 | 1137 | 1105 | 271.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

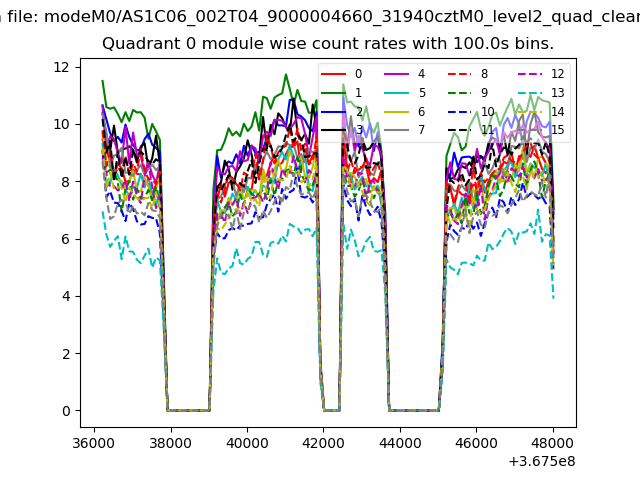

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

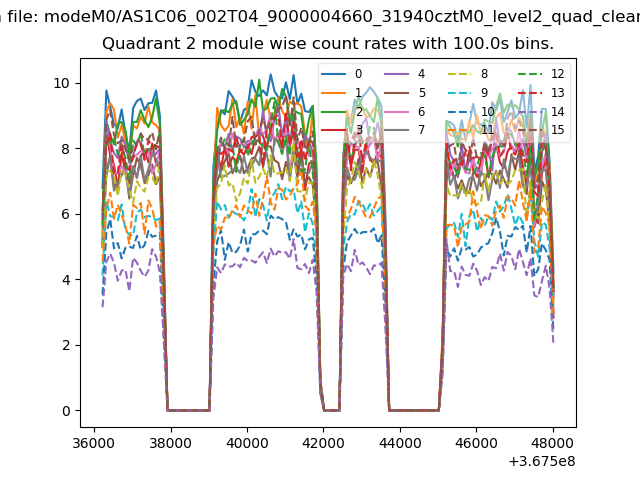

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

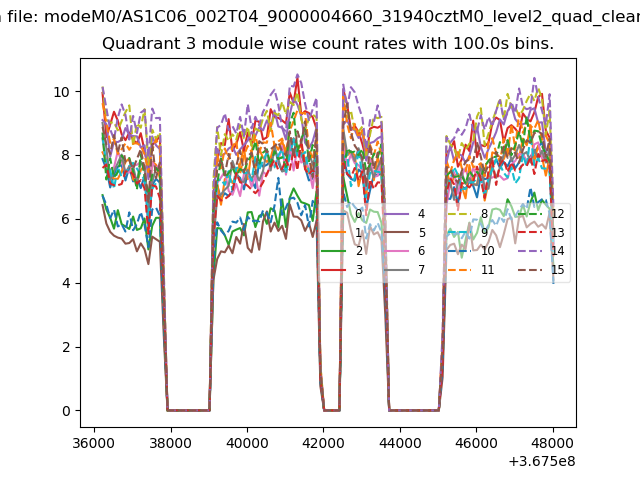

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

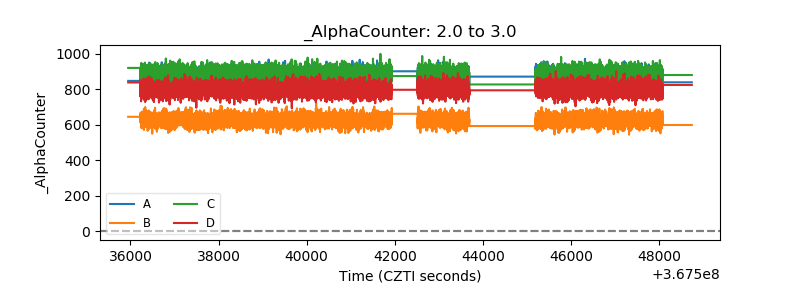

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

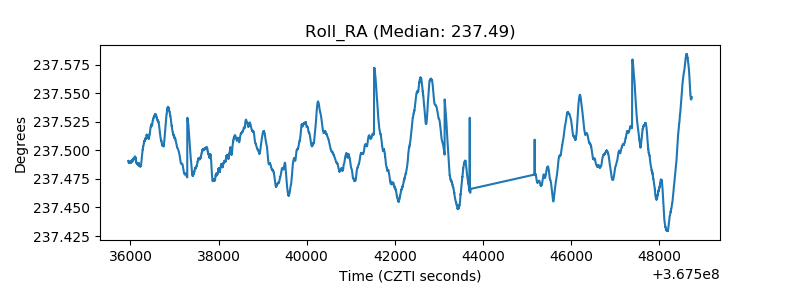

| _Roll_RA |  |

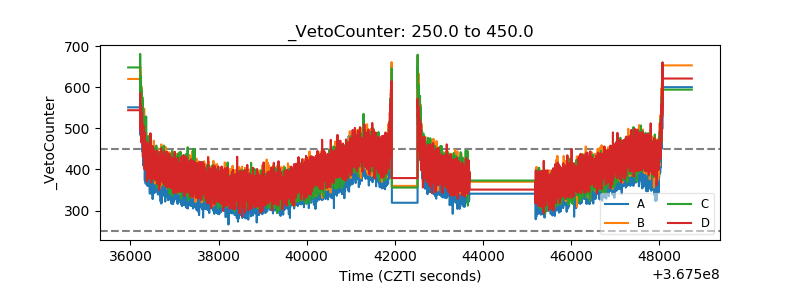

| Veto Counter |  |
