| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T11_9000004668_31965cztM0_level2.evt | modeM0/AS1A10_053T11_9000004668_31965cztM0_level2_quad_clean.evt |
| Size (bytes) | 705,358,080 | 121,392,000 |
| Size | 672.7 MB | 115.8 MB |
| Events in quadrant A | 3,637,897 | 829,128 |
| Events in quadrant B | 5,670,233 | 806,173 |
| Events in quadrant C | 5,276,407 | 778,353 |
| Events in quadrant D | 6,262,073 | 732,582 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 1 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16858 | 1004 |
| B | 0 | 24926 | 1834 |
| C | 0 | 22985 | 2230 |
| D | 0 | 25538 | 2030 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 14 |
| B | 0 | 166 | 12 |
| C | 0 | 164 | 8 |
| D | 0 | 164 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7691 | 88 | 1.144195% |
| B | 7578 | 190 | 2.507258% |
| C | 7594 | 473 | 6.228602% |
| D | 7593 | 881 | 11.602792% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8785 | 7898 | 14 | 14 | 0.16% | 0.18% |  |
| B | 8798 | 7813 | 5 | 5 | 0.06% | 0.06% |  |
| C | 8807 | 7791 | 248 | 248 | 2.82% | 3.18% |  |
| D | 8791 | 7815 | 839 | 839 | 9.54% | 10.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 34157 | 176.74 | 932 | 914 | 188.1 |
| A | 13 | 254 | 13445 | 66.62 | 932 | 914 | 188.1 |
| A | 3 | 137 | 9459 | 45.43 | 932 | 914 | 188.1 |
| B | 6 | 159 | 1938236 | 11168.06 | 901 | 879 | 173.5 |
| B | 15 | 33 | 127363 | 729.13 | 901 | 879 | 173.5 |
| B | 0 | 190 | 36275 | 204.04 | 901 | 879 | 173.5 |
| C | 0 | 10 | 1288586 | 6326.73 | 859 | 863 | 203.5 |
| C | 3 | 233 | 481740 | 2362.6 | 859 | 863 | 203.5 |
| C | 14 | 238 | 138943 | 678.4 | 859 | 863 | 203.5 |
| D | 7 | 238 | 1334933 | 6624.89 | 851 | 828 | 201.4 |
| D | 12 | 218 | 1014931 | 5035.83 | 851 | 828 | 201.4 |
| D | 8 | 195 | 243310 | 1204.12 | 851 | 828 | 201.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

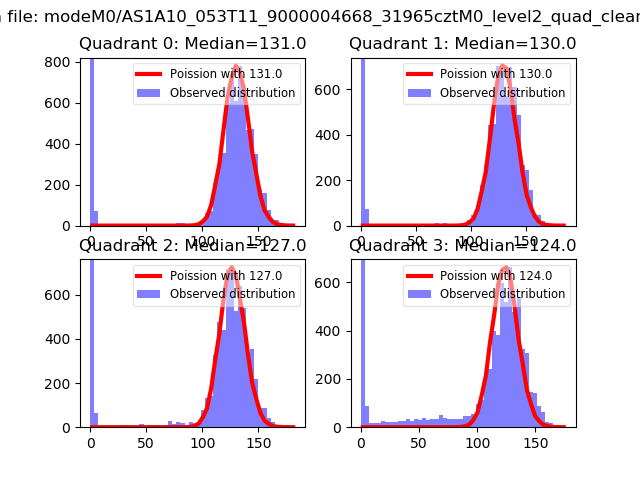

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
