| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T11_9000004668_31966cztM0_level2.evt | modeM0/AS1A10_053T11_9000004668_31966cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,455,360 | 80,161,920 |
| Size | 450.6 MB | 76.4 MB |
| Events in quadrant A | 2,633,276 | 536,120 |
| Events in quadrant B | 3,998,175 | 520,609 |
| Events in quadrant C | 3,626,652 | 510,909 |
| Events in quadrant D | 3,683,382 | 481,292 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 8 | 1 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12490 | 1205 |
| B | 0 | 18224 | 1990 |
| C | 0 | 16089 | 1682 |
| D | 0 | 18358 | 4012 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 12 |
| B | 0 | 125 | 11 |
| C | 0 | 124 | 10 |
| D | 0 | 123 | 13 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5460 | 76 | 1.391941% |
| B | 5378 | 160 | 2.975084% |
| C | 5433 | 297 | 5.466593% |
| D | 5311 | 287 | 5.403879% |

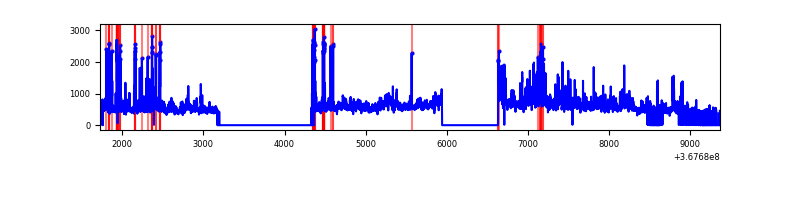

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7610 | 5591 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7579 | 5500 | 2 | 2 | 0.03% | 0.04% |  |
| C | 7640 | 5563 | 82 | 82 | 1.07% | 1.47% |  |
| D | 7503 | 5387 | 215 | 215 | 2.87% | 3.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9395 | 62.93 | 681 | 667 | 138.7 |
| A | 3 | 137 | 6975 | 45.48 | 681 | 667 | 138.7 |
| A | 0 | 226 | 5896 | 37.7 | 681 | 667 | 138.7 |
| B | 6 | 159 | 1360684 | 10673.15 | 656 | 640 | 127.4 |
| B | 0 | 190 | 29310 | 224.99 | 656 | 640 | 127.4 |
| B | 12 | 111 | 15577 | 117.22 | 656 | 640 | 127.4 |
| C | 0 | 10 | 697608 | 4650.03 | 633 | 636 | 149.9 |
| C | 3 | 233 | 345642 | 2301.8 | 633 | 636 | 149.9 |
| C | 14 | 238 | 102132 | 677.16 | 633 | 636 | 149.9 |
| D | 12 | 218 | 446614 | 2946.54 | 631 | 614 | 151.4 |
| D | 7 | 238 | 400435 | 2641.45 | 631 | 614 | 151.4 |
| D | 8 | 195 | 176488 | 1161.93 | 631 | 614 | 151.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

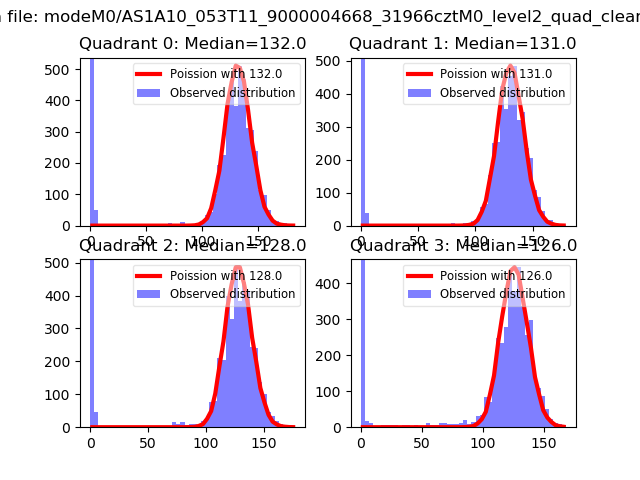

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

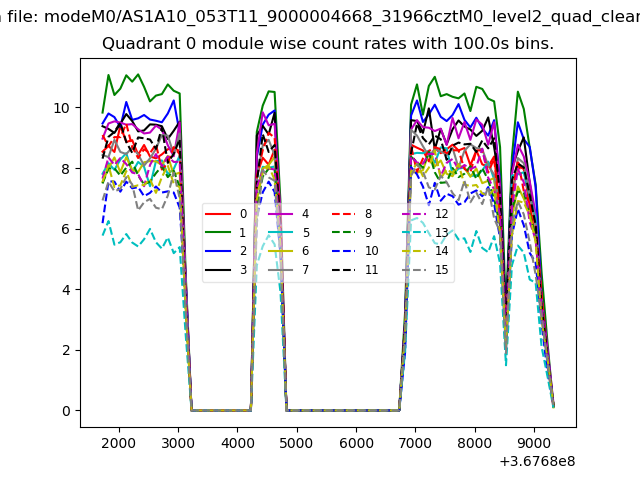

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

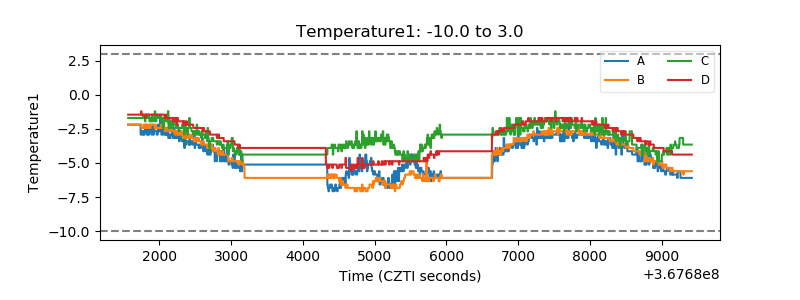

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

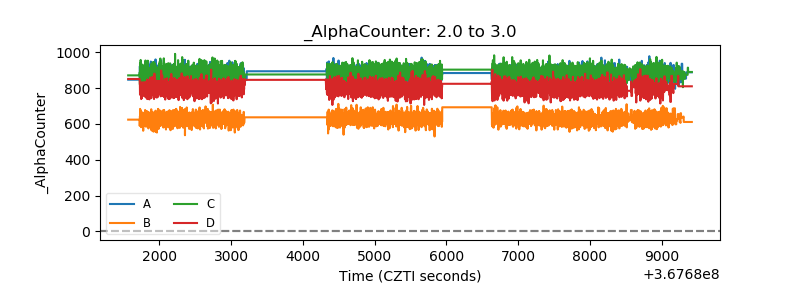

| Alpha Counter |  |

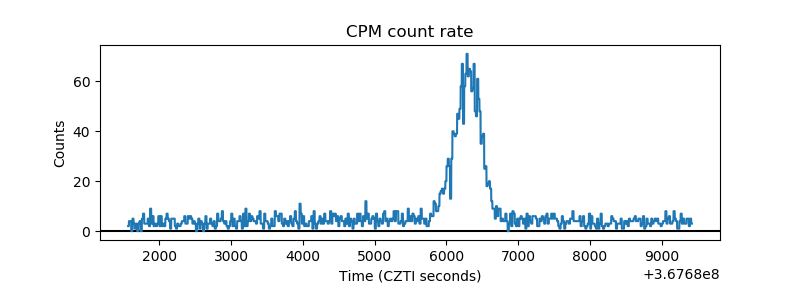

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

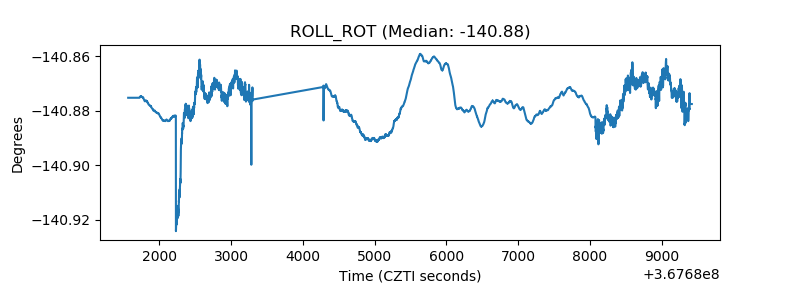

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

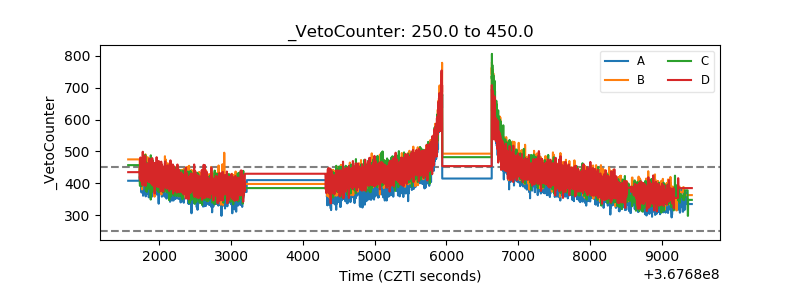

| Veto Counter |  |
