| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T34_9000004662_31960cztM0_level2.evt | modeM0/AS1A10_094T34_9000004662_31960cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,069,120 | 98,363,520 |
| Size | 497.9 MB | 93.8 MB |
| Events in quadrant A | 2,799,892 | 675,258 |
| Events in quadrant B | 4,305,707 | 666,772 |
| Events in quadrant C | 4,249,244 | 632,599 |
| Events in quadrant D | 4,093,810 | 629,599 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12832 | 1309 |
| B | 0 | 18358 | 1800 |
| C | 0 | 17711 | 1560 |
| D | 0 | 17213 | 1539 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 119 | 9 |
| B | 0 | 120 | 10 |
| C | 0 | 119 | 11 |
| D | 0 | 120 | 12 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5365 | 53 | 0.987884% |
| B | 5337 | 125 | 2.342140% |
| C | 5348 | 521 | 9.741960% |
| D | 5340 | 314 | 5.880150% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7331 | 5400 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7332 | 5379 | 31 | 31 | 0.42% | 0.58% |  |
| C | 7332 | 5392 | 80 | 80 | 1.09% | 1.48% |  |
| D | 7332 | 5377 | 262 | 262 | 3.57% | 4.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10475 | 68.13 | 722 | 709 | 143.3 |
| A | 14 | 238 | 7549 | 47.72 | 722 | 709 | 143.3 |
| A | 3 | 137 | 6386 | 39.61 | 722 | 709 | 143.3 |
| B | 6 | 159 | 1420648 | 10834.83 | 699 | 680 | 131.1 |
| B | 5 | 172 | 94058 | 712.51 | 699 | 680 | 131.1 |
| B | 0 | 190 | 21194 | 156.53 | 699 | 680 | 131.1 |
| C | 3 | 233 | 891514 | 5716.53 | 679 | 686 | 155.8 |
| C | 0 | 10 | 463967 | 2972.92 | 679 | 686 | 155.8 |
| C | 14 | 238 | 153308 | 979.39 | 679 | 686 | 155.8 |
| D | 13 | 249 | 824850 | 5090.94 | 694 | 678 | 161.9 |
| D | 8 | 195 | 308962 | 1904.28 | 694 | 678 | 161.9 |
| D | 12 | 218 | 179033 | 1101.7 | 694 | 678 | 161.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

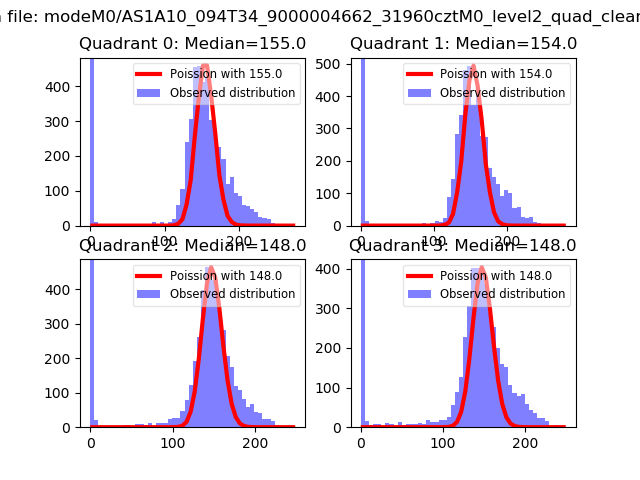

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

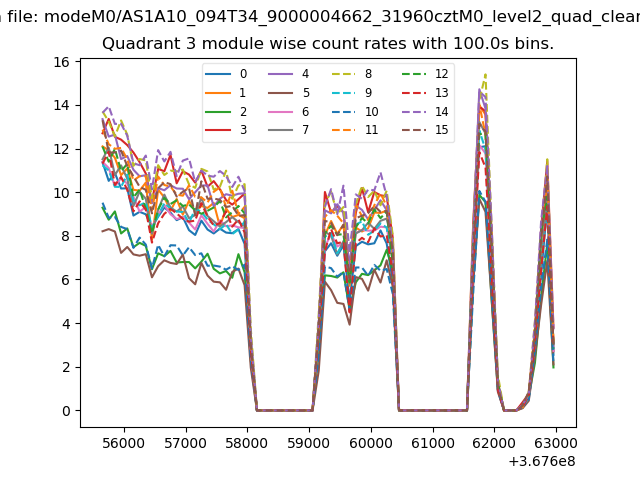

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

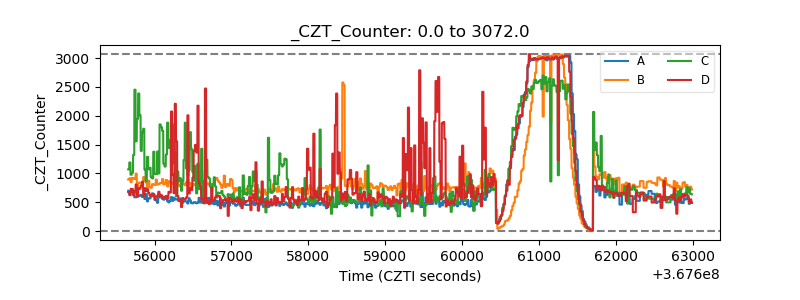

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

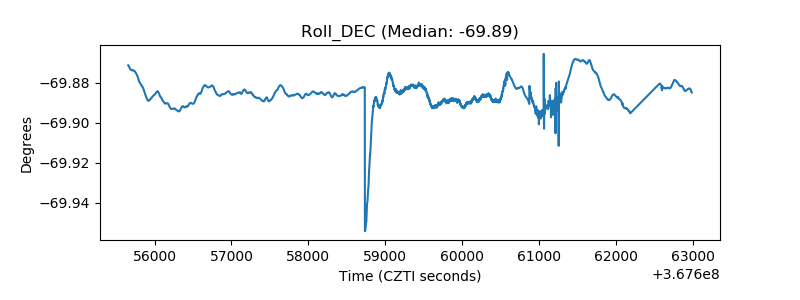

| _Roll_DEC |  |

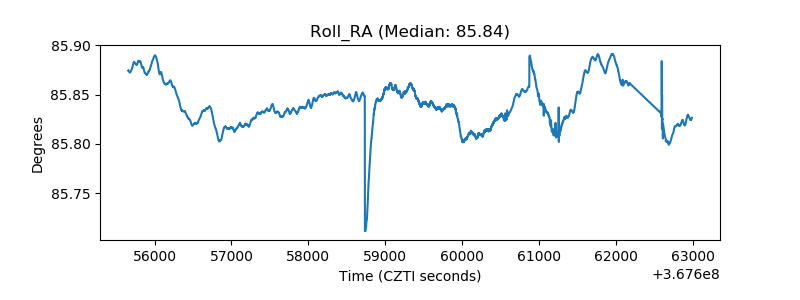

| _Roll_RA |  |
| Veto Counter |  |
