| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T12_9000004674_31989cztM0_level2.evt | modeM0/AS1A10_058T12_9000004674_31989cztM0_level2_quad_clean.evt |
| Size (bytes) | 557,634,240 | 95,708,160 |
| Size | 531.8 MB | 91.3 MB |
| Events in quadrant A | 3,554,717 | 635,108 |
| Events in quadrant B | 5,457,385 | 625,594 |
| Events in quadrant C | 3,658,296 | 588,665 |
| Events in quadrant D | 3,777,326 | 595,382 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14261 | 2 |
| B | 0 | 20508 | 2 |
| C | 0 | 14609 | 2 |
| D | 0 | 15068 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6504 | 54 | 0.830258% |
| B | 6504 | 204 | 3.136531% |
| C | 6504 | 146 | 2.244772% |
| D | 6504 | 39 | 0.599631% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

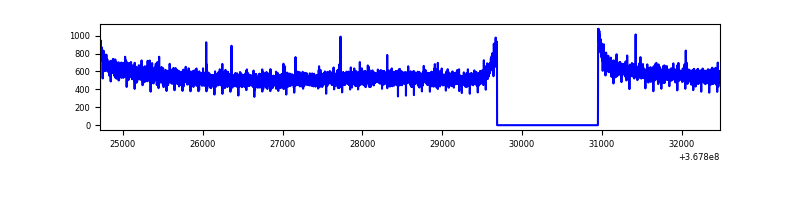

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7769 | 6505 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7769 | 6504 | 66 | 66 | 0.85% | 1.01% |  |
| C | 7769 | 6505 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7769 | 6505 | 10 | 10 | 0.13% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11531 | 58.98 | 921 | 908 | 180.1 |
| A | 3 | 137 | 8583 | 42.62 | 921 | 908 | 180.1 |
| A | 0 | 226 | 7874 | 38.68 | 921 | 908 | 180.1 |
| B | 6 | 159 | 1627338 | 9779.53 | 887 | 869 | 166.3 |
| B | 10 | 245 | 286522 | 1717.55 | 887 | 869 | 166.3 |
| B | 15 | 201 | 20478 | 117.9 | 887 | 869 | 166.3 |
| C | 14 | 238 | 159740 | 812.66 | 850 | 856 | 195.5 |
| C | 3 | 233 | 61425 | 309.8 | 850 | 856 | 195.5 |
| C | 4 | 175 | 34052 | 169.79 | 850 | 856 | 195.5 |
| D | 8 | 195 | 348162 | 1690.38 | 879 | 857 | 205.5 |
| D | 2 | 250 | 62625 | 300.63 | 879 | 857 | 205.5 |
| D | 2 | 234 | 29455 | 139.19 | 879 | 857 | 205.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

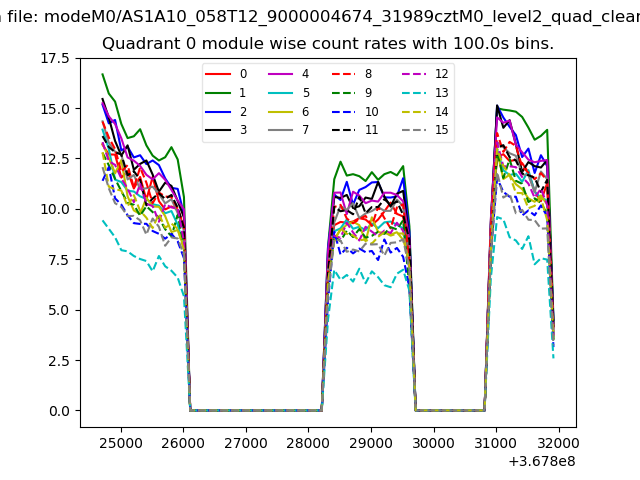

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

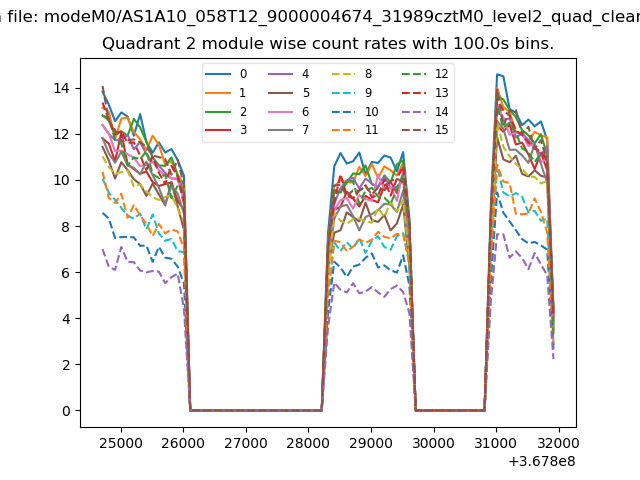

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

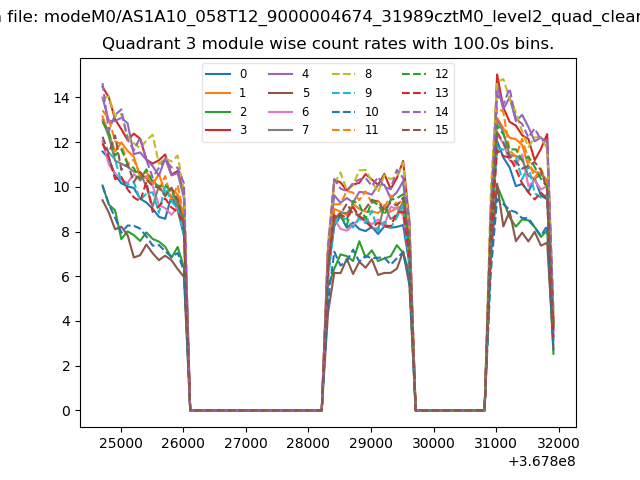

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

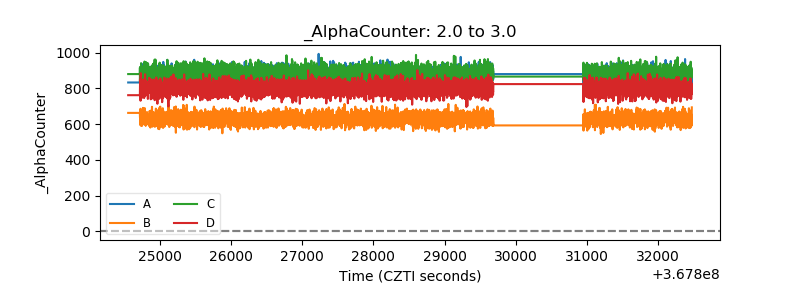

| Alpha Counter |  |

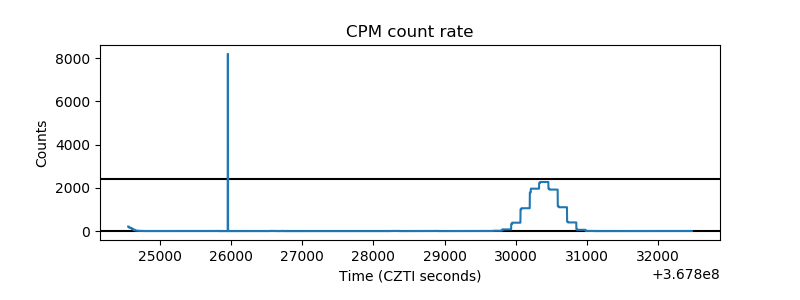

| _CPM_Rate |  |

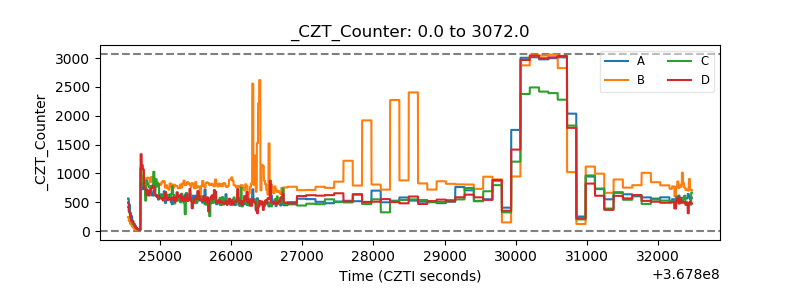

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

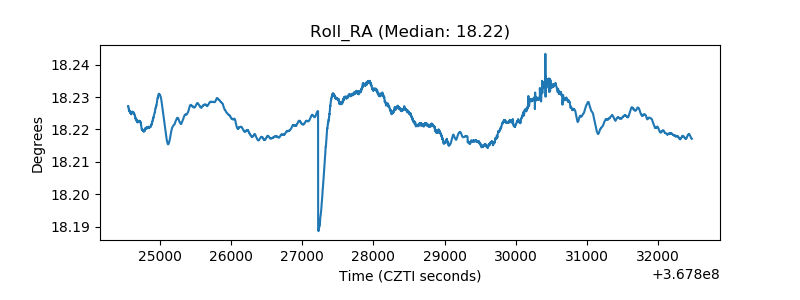

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
