| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_046T01_9000004680_32041cztM0_level2.evt | modeM0/AS1T04_046T01_9000004680_32041cztM0_level2_quad_clean.evt |
| Size (bytes) | 807,062,400 | 108,178,560 |
| Size | 769.7 MB | 103.2 MB |
| Events in quadrant A | 4,042,102 | 685,650 |
| Events in quadrant B | 6,864,443 | 673,943 |
| Events in quadrant C | 6,763,288 | 650,226 |
| Events in quadrant D | 6,170,531 | 647,578 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18083 | 1 |
| B | 0 | 27236 | 1 |
| C | 0 | 26324 | 1 |
| D | 0 | 24155 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 180 | 0 |
| B | 0 | 180 | 0 |
| C | 0 | 180 | 0 |
| D | 0 | 180 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8913 | 15 | 0.168294% |
| B | 8913 | 98 | 1.099518% |
| C | 8913 | 296 | 3.320992% |
| D | 8914 | 415 | 4.655598% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

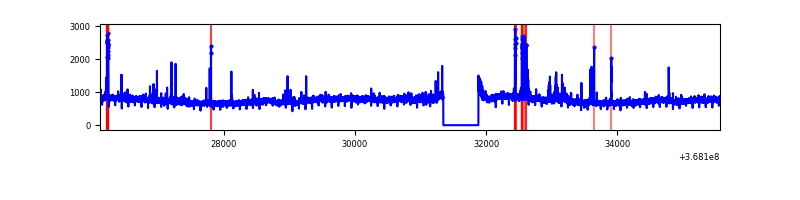

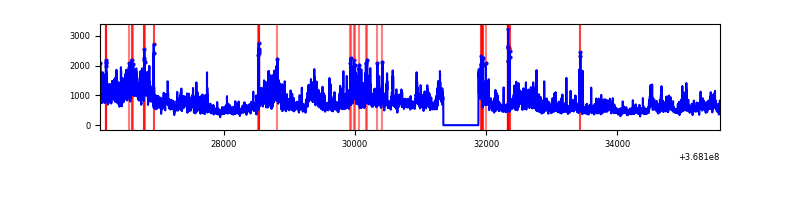

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9448 | 8914 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9448 | 8914 | 38 | 38 | 0.40% | 0.43% |  |
| C | 9448 | 8914 | 50 | 50 | 0.53% | 0.56% |  |
| D | 9449 | 8915 | 398 | 398 | 4.21% | 4.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 20758 | 94.65 | 1038 | 1017 | 208.6 |
| A | 13 | 254 | 18217 | 82.47 | 1038 | 1017 | 208.6 |
| A | 13 | 6 | 11018 | 47.95 | 1038 | 1017 | 208.6 |
| B | 6 | 159 | 2560306 | 13032.33 | 1026 | 1000 | 196.4 |
| B | 5 | 172 | 151668 | 767.22 | 1026 | 1000 | 196.4 |
| B | 0 | 190 | 61428 | 307.71 | 1026 | 1000 | 196.4 |
| C | 3 | 233 | 2401164 | 10457.1 | 981 | 988 | 229.5 |
| C | 0 | 10 | 261458 | 1134.82 | 981 | 988 | 229.5 |
| C | 14 | 238 | 166533 | 721.25 | 981 | 988 | 229.5 |
| D | 8 | 195 | 1187671 | 5087.18 | 977 | 951 | 233.3 |
| D | 7 | 238 | 639199 | 2736.01 | 977 | 951 | 233.3 |
| D | 2 | 250 | 493438 | 2111.17 | 977 | 951 | 233.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

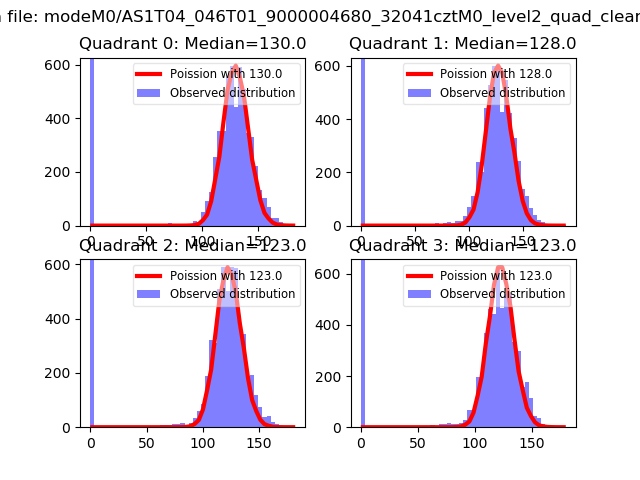

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

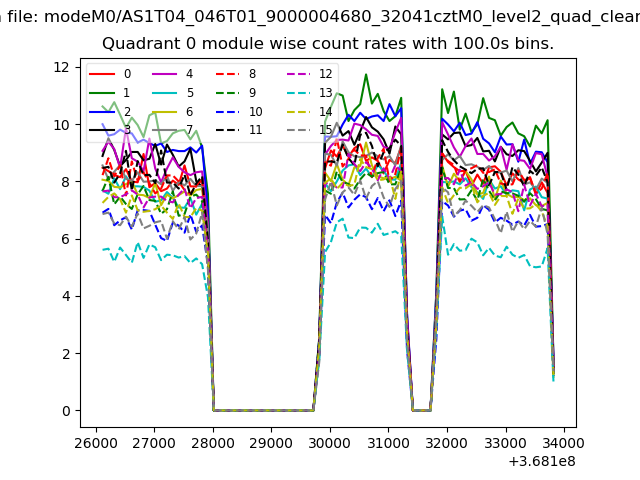

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

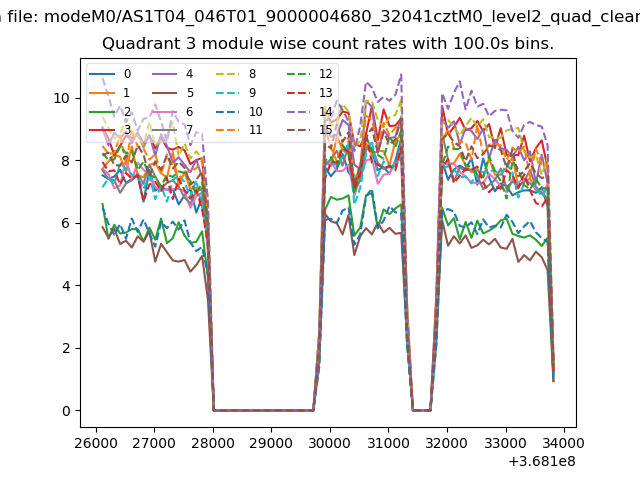

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

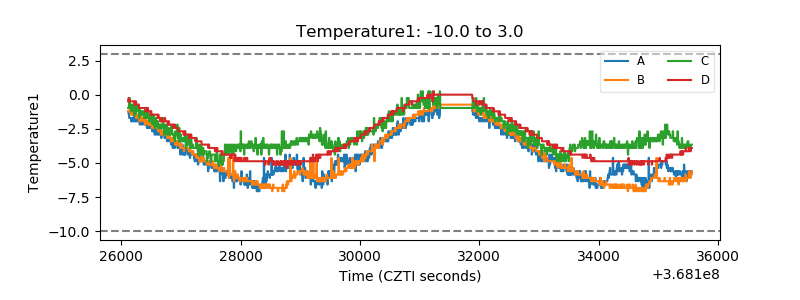

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

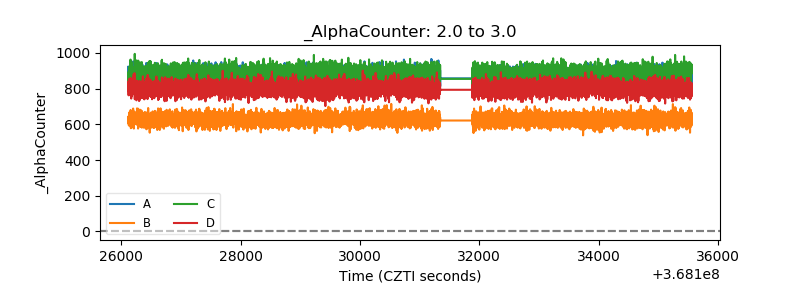

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

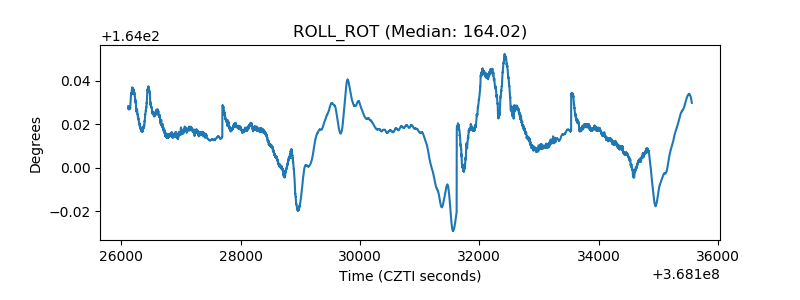

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
