| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_046T01_9000004680_32046cztM0_level2.evt | modeM0/AS1T04_046T01_9000004680_32046cztM0_level2_quad_clean.evt |
| Size (bytes) | 602,732,160 | 71,605,440 |
| Size | 574.8 MB | 68.3 MB |
| Events in quadrant A | 3,379,987 | 441,724 |
| Events in quadrant B | 5,640,887 | 430,139 |
| Events in quadrant C | 3,915,589 | 434,288 |
| Events in quadrant D | 4,887,962 | 418,430 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13837 | 3 |
| B | 0 | 20943 | 2 |
| C | 0 | 15630 | 2 |
| D | 0 | 18820 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6357 | 27 | 0.424729% |
| B | 6358 | 245 | 3.853413% |
| C | 6358 | 155 | 2.437874% |
| D | 6358 | 59 | 0.927965% |

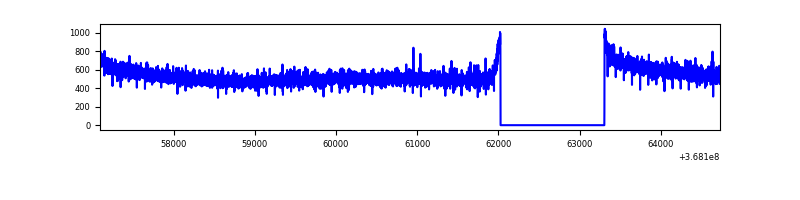

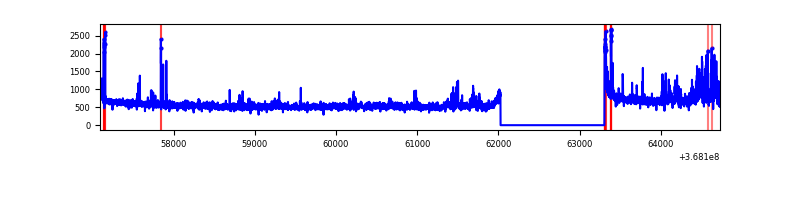

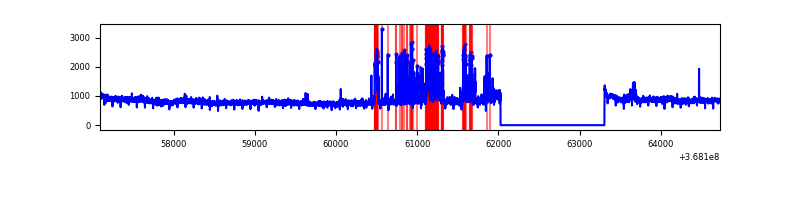

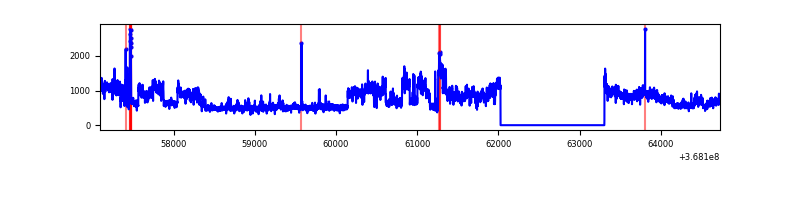

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7637 | 6357 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7638 | 6358 | 136 | 136 | 1.78% | 2.14% |  |
| C | 7638 | 6358 | 27 | 27 | 0.35% | 0.42% |  |
| D | 7638 | 6358 | 14 | 14 | 0.18% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 17214 | 95.96 | 871 | 859 | 170.4 |
| A | 13 | 254 | 11902 | 64.79 | 871 | 859 | 170.4 |
| A | 3 | 137 | 7897 | 41.3 | 871 | 859 | 170.4 |
| B | 6 | 159 | 1696411 | 10753.41 | 858 | 840 | 157.7 |
| B | 5 | 172 | 486139 | 3077.8 | 858 | 840 | 157.7 |
| B | 10 | 245 | 39943 | 247.99 | 858 | 840 | 157.7 |
| C | 3 | 233 | 323909 | 1687.75 | 843 | 851 | 191.4 |
| C | 14 | 238 | 147513 | 766.21 | 843 | 851 | 191.4 |
| C | 0 | 10 | 111634 | 578.76 | 843 | 851 | 191.4 |
| D | 8 | 195 | 1607542 | 8185.02 | 847 | 828 | 196.3 |
| D | 2 | 250 | 79773 | 402.17 | 847 | 828 | 196.3 |
| D | 2 | 234 | 24728 | 121.75 | 847 | 828 | 196.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

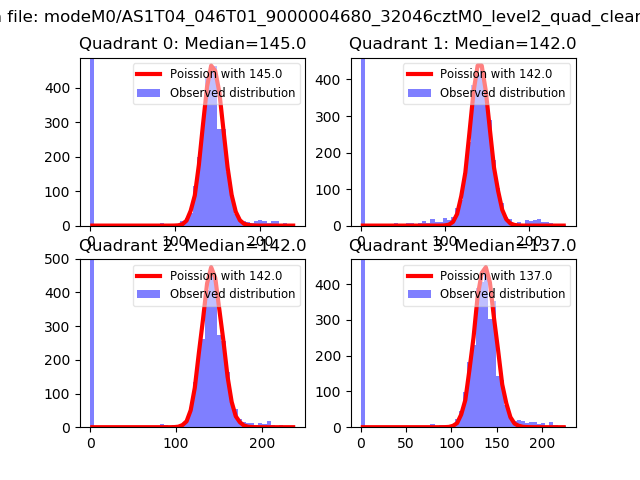

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

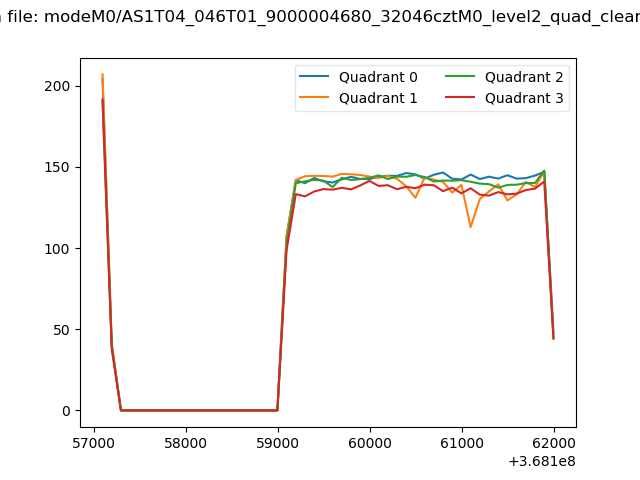

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

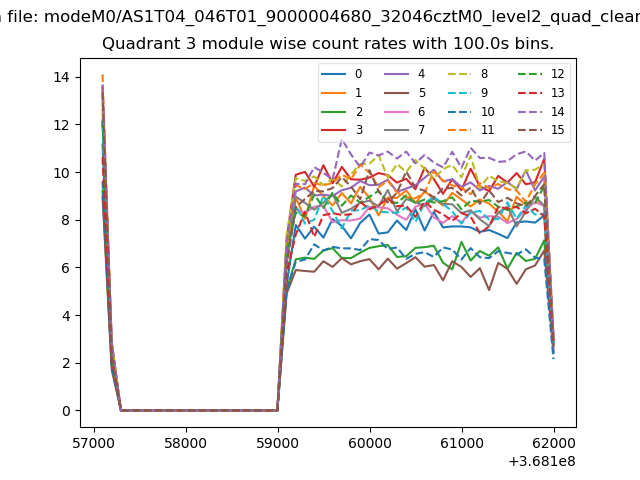

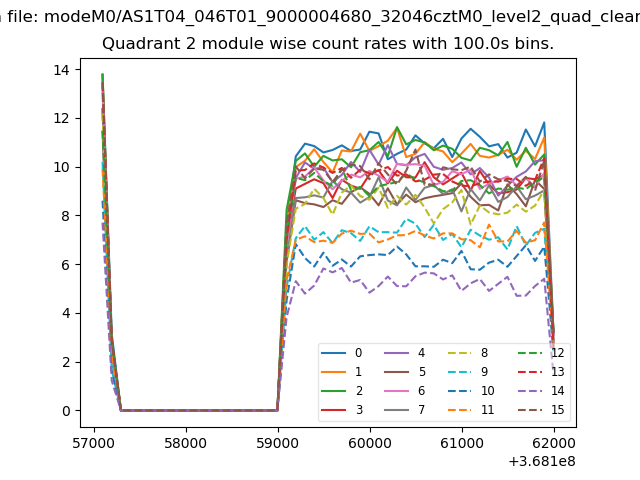

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

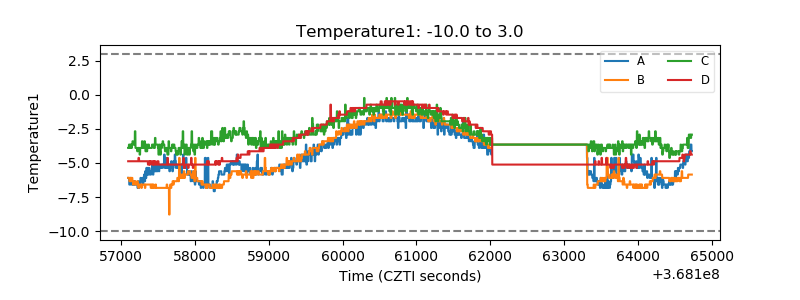

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

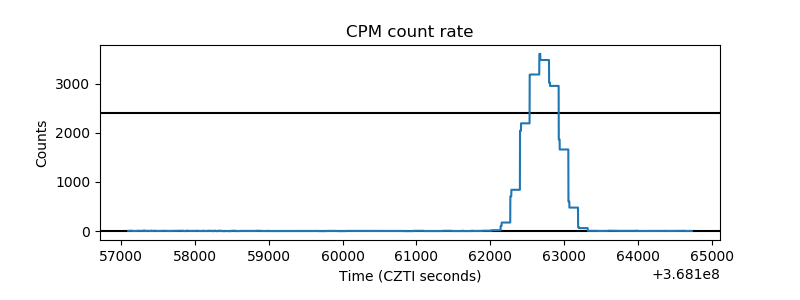

| _CPM_Rate |  |

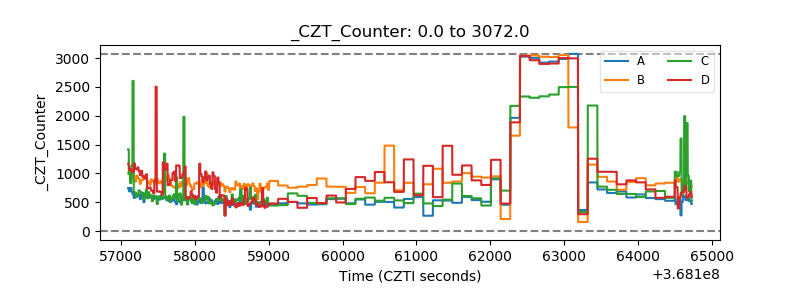

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

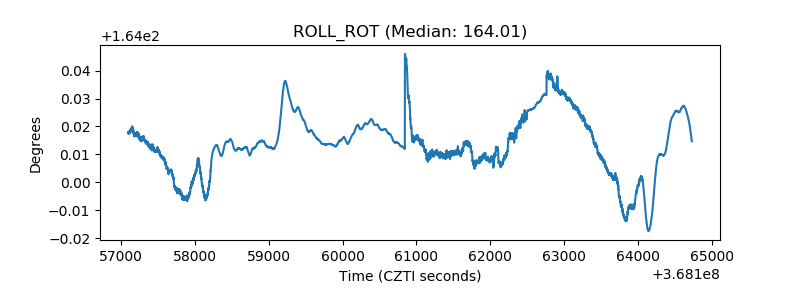

| _ROLL_ROT |  |

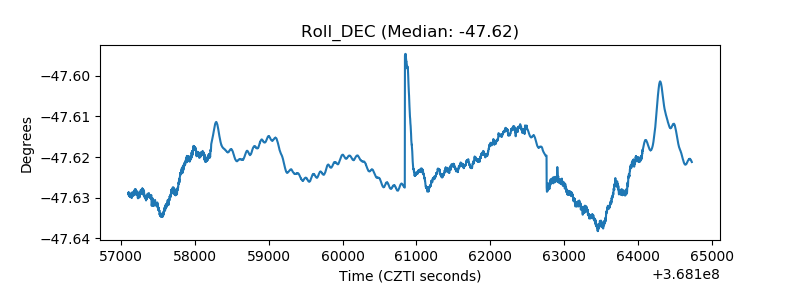

| _Roll_DEC |  |

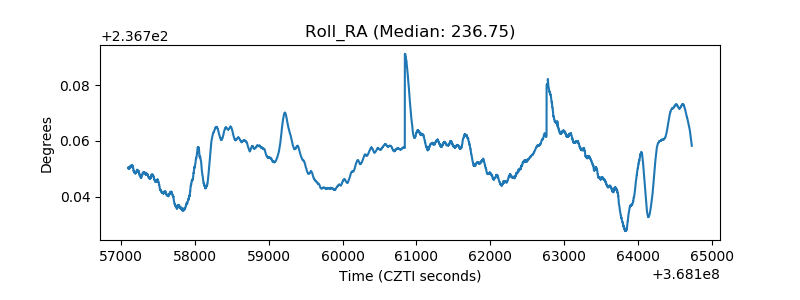

| _Roll_RA |  |

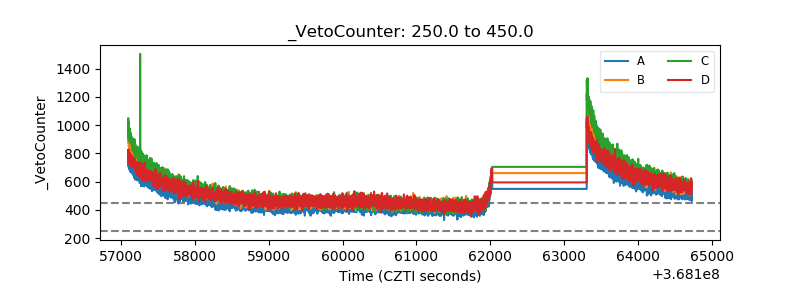

| Veto Counter |  |
