| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_109T01_9000004682_32062cztM0_level2.evt | modeM0/AS1A10_109T01_9000004682_32062cztM0_level2_quad_clean.evt |
| Size (bytes) | 593,112,960 | 77,060,160 |
| Size | 565.6 MB | 73.5 MB |
| Events in quadrant A | 3,553,301 | 494,130 |
| Events in quadrant B | 5,506,255 | 491,890 |
| Events in quadrant C | 4,070,931 | 457,372 |
| Events in quadrant D | 4,403,981 | 448,070 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14214 | 2 |
| B | 0 | 20175 | 2 |
| C | 0 | 16016 | 2 |
| D | 0 | 17135 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6335 | 17 | 0.268350% |
| B | 6335 | 141 | 2.225730% |
| C | 6335 | 240 | 3.788477% |
| D | 6334 | 66 | 1.041996% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

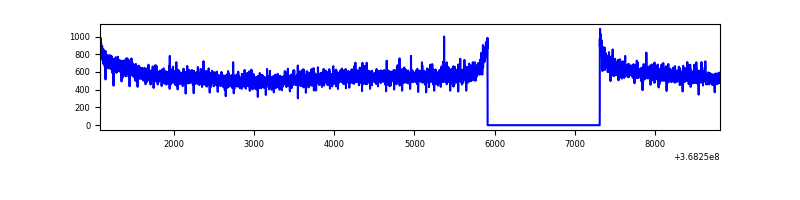

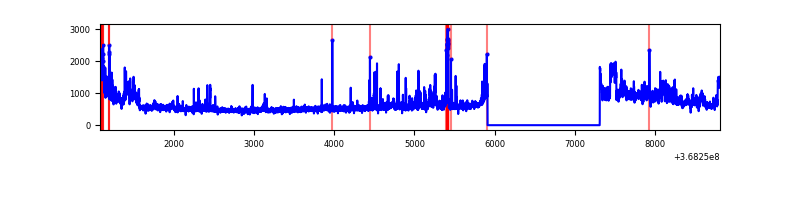

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7735 | 6336 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7735 | 6335 | 25 | 25 | 0.32% | 0.39% |  |
| C | 7735 | 6336 | 119 | 119 | 1.54% | 1.88% |  |
| D | 7734 | 6335 | 39 | 39 | 0.50% | 0.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11582 | 59.48 | 919 | 906 | 179.5 |
| A | 3 | 137 | 8133 | 40.26 | 919 | 906 | 179.5 |
| A | 0 | 226 | 7873 | 38.81 | 919 | 906 | 179.5 |
| B | 6 | 159 | 1665271 | 9969.28 | 907 | 890 | 167.0 |
| B | 10 | 245 | 148377 | 883.41 | 907 | 890 | 167.0 |
| B | 5 | 172 | 99088 | 588.18 | 907 | 890 | 167.0 |
| C | 0 | 10 | 515433 | 2614.09 | 852 | 861 | 196.8 |
| C | 14 | 238 | 144632 | 730.37 | 852 | 861 | 196.8 |
| C | 4 | 175 | 35512 | 176.03 | 852 | 861 | 196.8 |
| D | 8 | 195 | 830405 | 4071.19 | 861 | 840 | 203.8 |
| D | 12 | 227 | 119372 | 581.71 | 861 | 840 | 203.8 |
| D | 12 | 233 | 102777 | 500.27 | 861 | 840 | 203.8 |

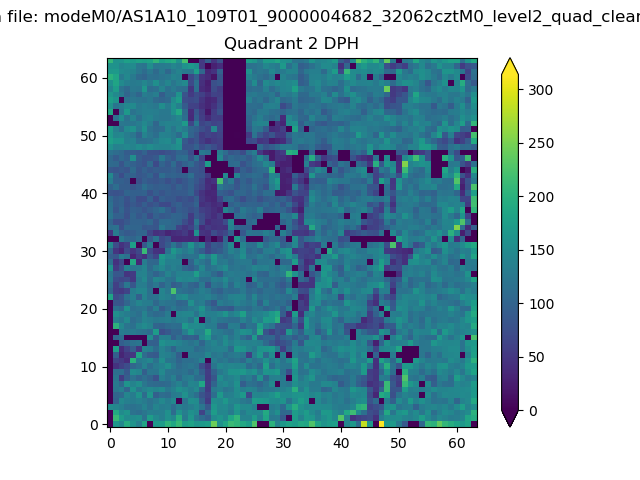

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

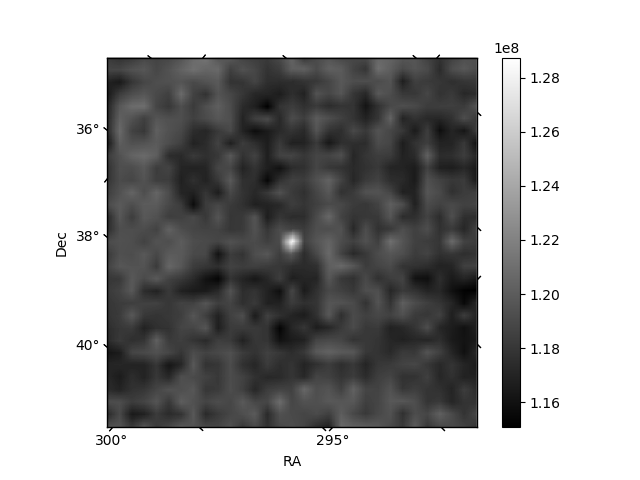

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

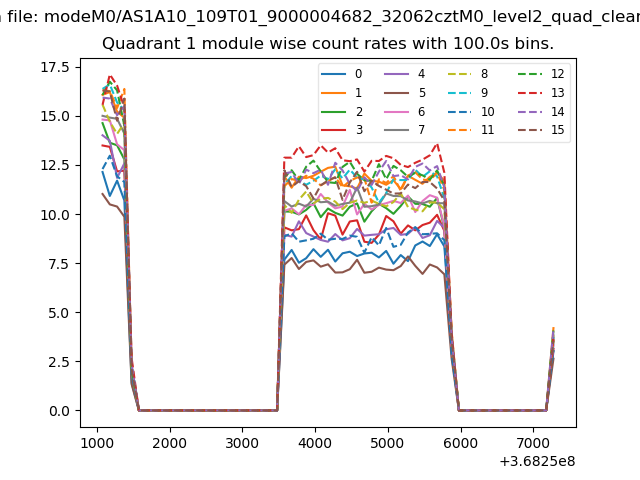

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

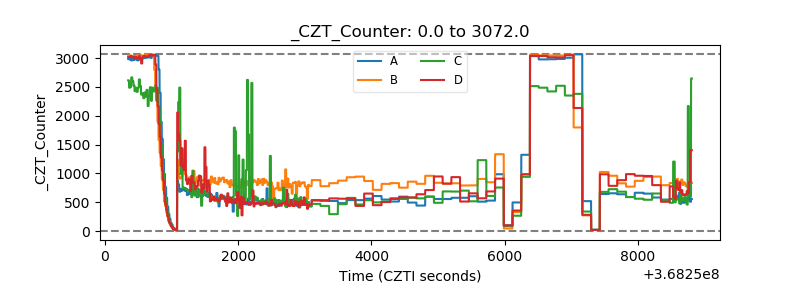

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

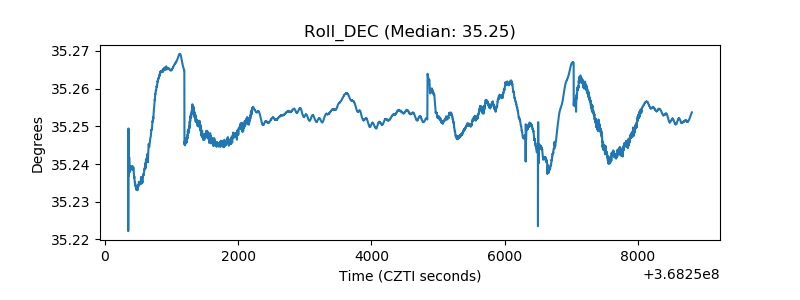

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
