| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T04_9000004684_32077cztM0_level2.evt | modeM0/AS1C06_002T04_9000004684_32077cztM0_level2_quad_clean.evt |
| Size (bytes) | 810,982,080 | 118,486,080 |
| Size | 773.4 MB | 113.0 MB |
| Events in quadrant A | 3,332,095 | 872,132 |
| Events in quadrant B | 11,387,683 | 696,202 |
| Events in quadrant C | 4,535,493 | 794,253 |
| Events in quadrant D | 4,884,791 | 789,342 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13554 | 2 |
| B | 0 | 38127 | 4 |
| C | 0 | 17472 | 2 |
| D | 0 | 19048 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6237 | 65 | 1.042168% |
| B | 6236 | 3444 | 55.227710% |
| C | 6236 | 511 | 8.194355% |
| D | 6236 | 228 | 3.656190% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7587 | 6237 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7586 | 6236 | 2706 | 2706 | 35.67% | 43.39% |  |
| C | 7586 | 6236 | 183 | 183 | 2.41% | 2.93% |  |
| D | 7586 | 6236 | 172 | 172 | 2.27% | 2.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 210 | 14525 | 82.06 | 859 | 848 | 166.7 |
| A | 13 | 254 | 11545 | 64.18 | 859 | 848 | 166.7 |
| A | 3 | 137 | 7631 | 40.7 | 859 | 848 | 166.7 |
| B | 10 | 245 | 6907771 | 51880.08 | 719 | 704 | 133.1 |
| B | 6 | 159 | 1414998 | 10622.99 | 719 | 704 | 133.1 |
| B | 0 | 190 | 208485 | 1560.68 | 719 | 704 | 133.1 |
| C | 3 | 233 | 1003858 | 5622.77 | 777 | 782 | 178.4 |
| C | 0 | 10 | 303471 | 1696.73 | 777 | 782 | 178.4 |
| C | 14 | 238 | 136473 | 760.62 | 777 | 782 | 178.4 |
| D | 8 | 195 | 693430 | 3654.02 | 804 | 783 | 189.6 |
| D | 12 | 227 | 612291 | 3225.98 | 804 | 783 | 189.6 |
| D | 12 | 233 | 456633 | 2404.81 | 804 | 783 | 189.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

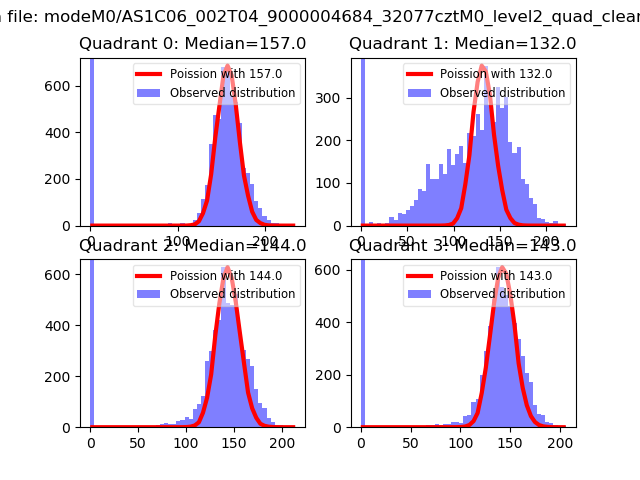

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

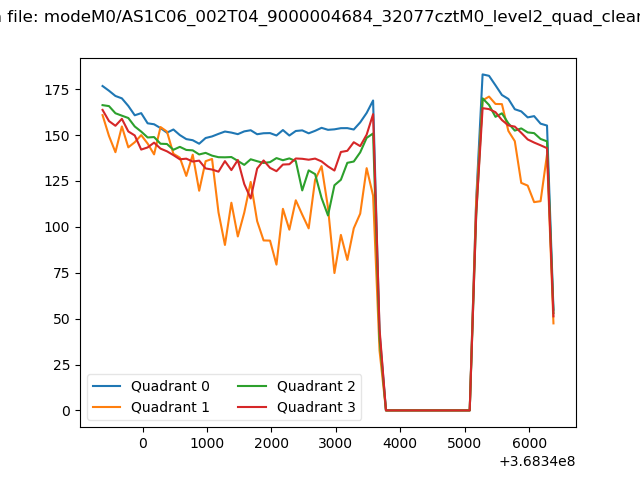

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

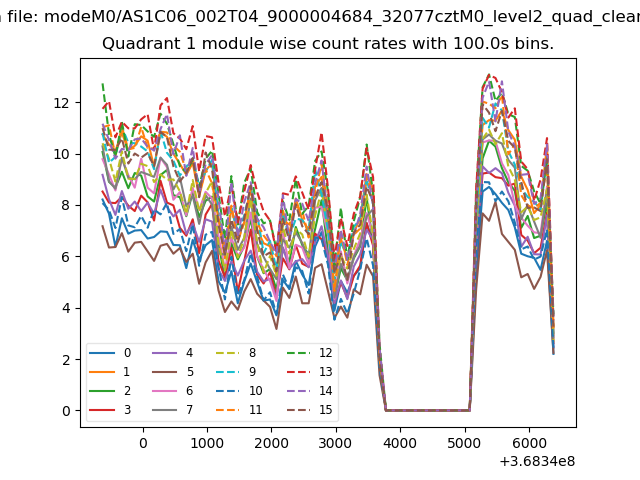

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

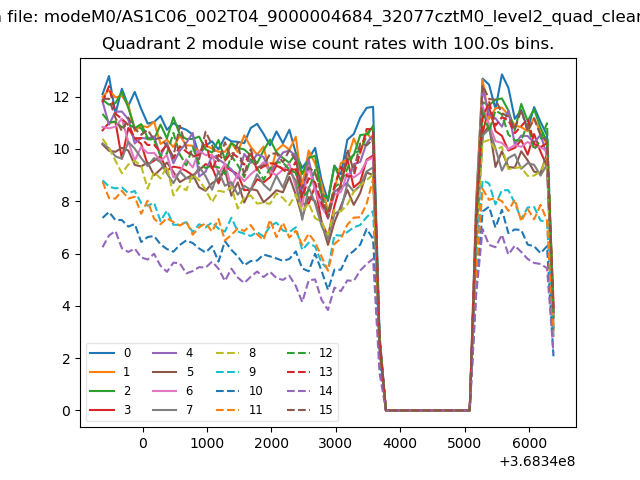

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
