| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T04_9000004684_32080cztM0_level2.evt | modeM0/AS1C06_002T04_9000004684_32080cztM0_level2_quad_clean.evt |
| Size (bytes) | 728,766,720 | 101,448,000 |
| Size | 695.0 MB | 96.7 MB |
| Events in quadrant A | 2,917,828 | 730,784 |
| Events in quadrant B | 10,618,123 | 571,405 |
| Events in quadrant C | 3,213,993 | 682,201 |
| Events in quadrant D | 4,911,532 | 663,605 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13390 | 864 |
| B | 0 | 38145 | 2491 |
| C | 0 | 14104 | 868 |
| D | 0 | 19515 | 912 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 8 |
| B | 0 | 131 | 9 |
| C | 0 | 133 | 9 |
| D | 0 | 132 | 8 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6078 | 139 | 2.286936% |
| B | 5967 | 3099 | 51.935646% |
| C | 6086 | 167 | 2.744003% |
| D | 6078 | 495 | 8.144126% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

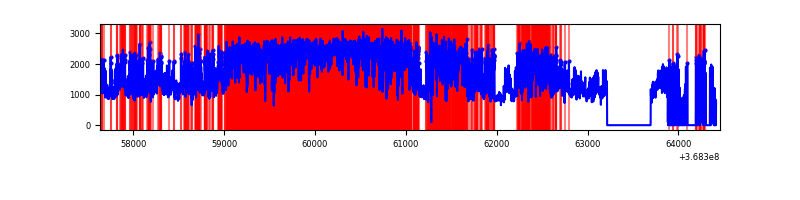

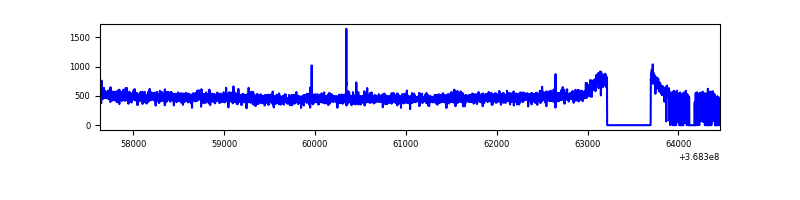

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6811 | 6174 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6782 | 6028 | 2343 | 2343 | 34.55% | 38.87% |  |
| C | 6822 | 6172 | 22 | 22 | 0.32% | 0.36% |  |
| D | 6824 | 6164 | 421 | 421 | 6.17% | 6.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12158 | 75.22 | 754 | 739 | 151.8 |
| A | 3 | 137 | 7517 | 44.65 | 754 | 739 | 151.8 |
| A | 0 | 226 | 6521 | 38.09 | 754 | 739 | 151.8 |
| B | 10 | 245 | 6525810 | 53842.1 | 630 | 613 | 121.2 |
| B | 6 | 159 | 1413202 | 11655.86 | 630 | 613 | 121.2 |
| B | 5 | 172 | 86383 | 707.72 | 630 | 613 | 121.2 |
| C | 0 | 10 | 162029 | 975.0 | 709 | 713 | 165.5 |
| C | 14 | 238 | 113800 | 683.5 | 709 | 713 | 165.5 |
| C | 3 | 233 | 103296 | 620.01 | 709 | 713 | 165.5 |
| D | 12 | 227 | 1455009 | 8641.68 | 715 | 695 | 168.3 |
| D | 8 | 195 | 413412 | 2452.4 | 715 | 695 | 168.3 |
| D | 12 | 233 | 241517 | 1430.99 | 715 | 695 | 168.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

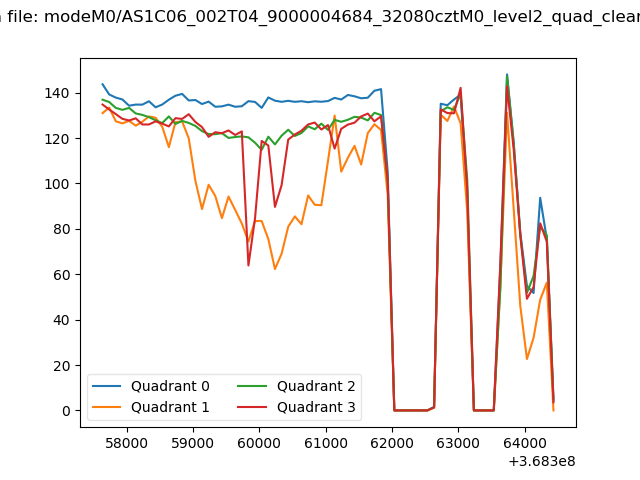

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

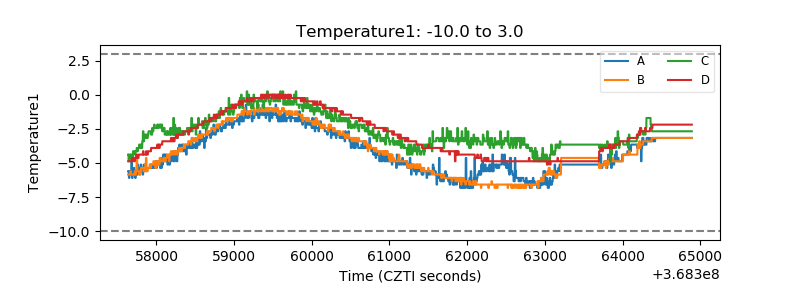

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

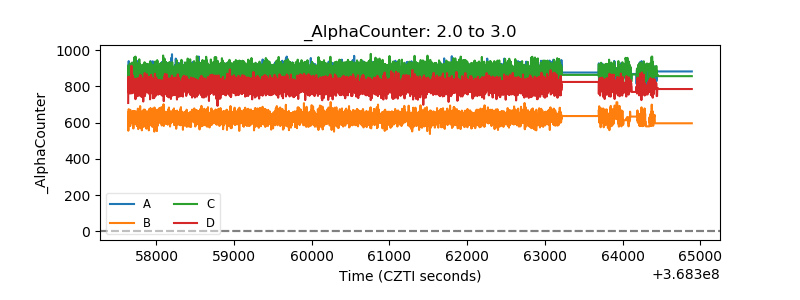

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

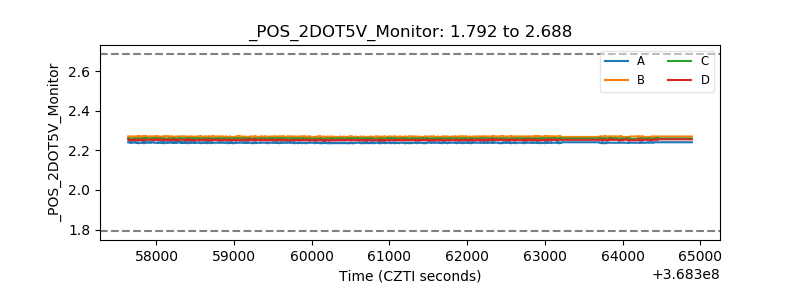

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

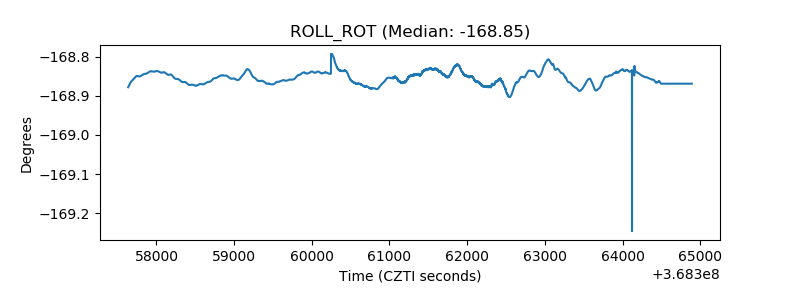

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
