| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_051T01_9000004686_32104cztM0_level2.evt | modeM0/AS1T04_051T01_9000004686_32104cztM0_level2_quad_clean.evt |
| Size (bytes) | 648,368,640 | 77,509,440 |
| Size | 618.3 MB | 73.9 MB |
| Events in quadrant A | 3,479,484 | 490,402 |
| Events in quadrant B | 6,904,675 | 466,691 |
| Events in quadrant C | 3,854,152 | 473,456 |
| Events in quadrant D | 4,955,163 | 459,094 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14193 | 2 |
| B | 0 | 24787 | 2 |
| C | 0 | 15372 | 2 |
| D | 0 | 19509 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6556 | 39 | 0.594875% |
| B | 6556 | 637 | 9.716290% |
| C | 6556 | 215 | 3.279439% |
| D | 6556 | 116 | 1.769372% |

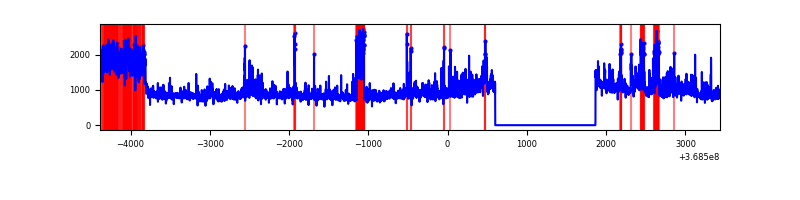

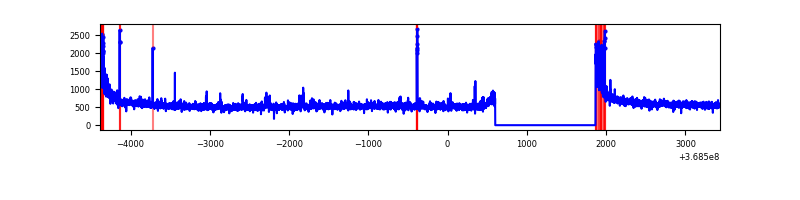

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7821 | 6556 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7821 | 6556 | 296 | 296 | 3.78% | 4.51% |  |
| C | 7821 | 6556 | 50 | 50 | 0.64% | 0.76% |  |
| D | 7821 | 6556 | 30 | 30 | 0.38% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12386 | 65.37 | 897 | 883 | 176.0 |
| A | 13 | 6 | 12148 | 64.02 | 897 | 883 | 176.0 |
| A | 15 | 174 | 8887 | 45.49 | 897 | 883 | 176.0 |
| B | 6 | 159 | 1819391 | 11356.2 | 874 | 857 | 160.1 |
| B | 10 | 245 | 1188164 | 7414.38 | 874 | 857 | 160.1 |
| B | 4 | 80 | 339088 | 2112.15 | 874 | 857 | 160.1 |
| C | 0 | 10 | 282291 | 1420.83 | 864 | 872 | 198.1 |
| C | 14 | 238 | 146870 | 737.12 | 864 | 872 | 198.1 |
| C | 4 | 175 | 33718 | 165.83 | 864 | 872 | 198.1 |
| D | 8 | 195 | 1478410 | 7307.47 | 866 | 844 | 202.2 |
| D | 12 | 233 | 109061 | 535.2 | 866 | 844 | 202.2 |
| D | 10 | 67 | 42657 | 206.79 | 866 | 844 | 202.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

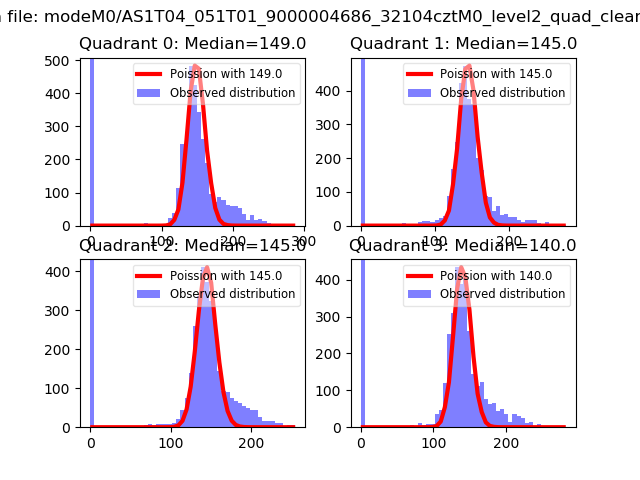

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

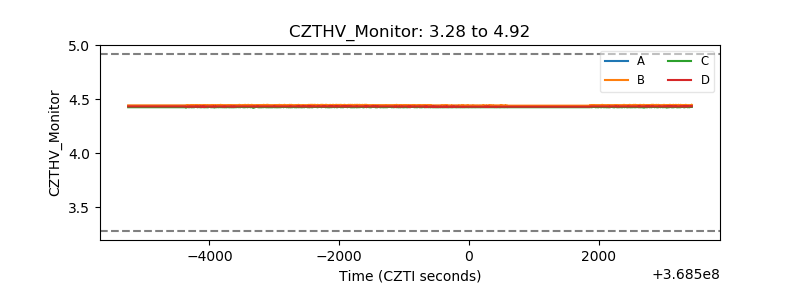

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

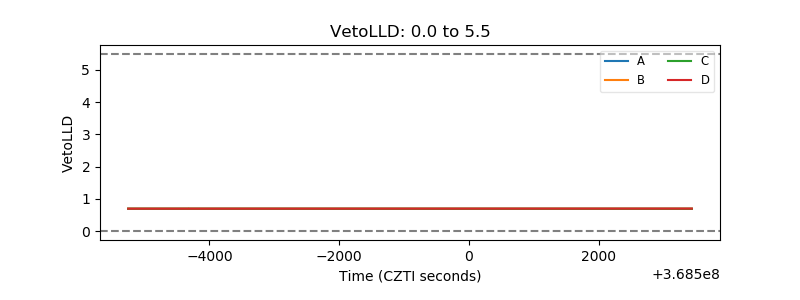

| Veto LLD |  |

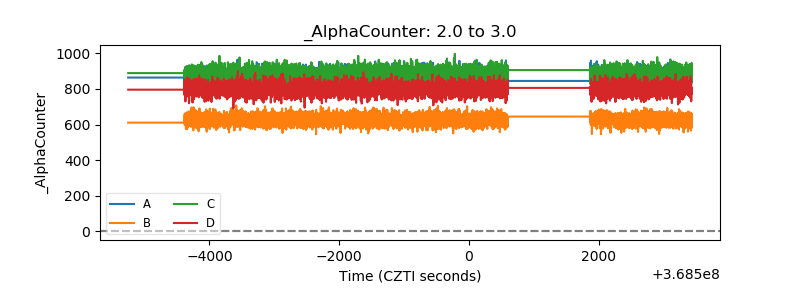

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

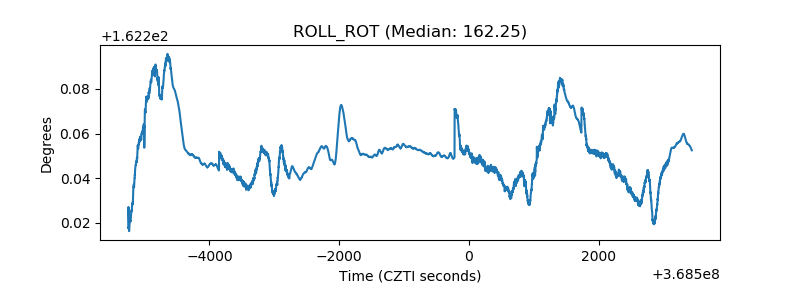

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

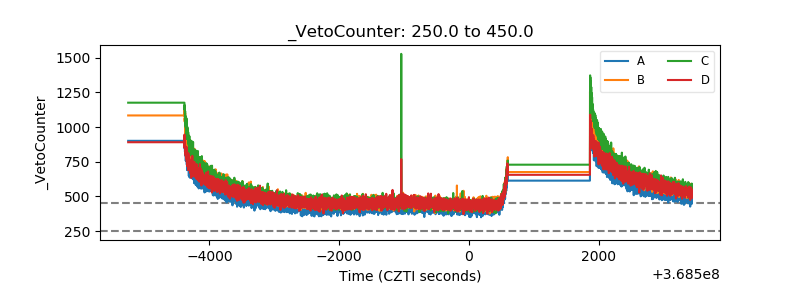

| Veto Counter |  |
