| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_051T01_9000004686_32105cztM0_level2.evt | modeM0/AS1T04_051T01_9000004686_32105cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,807,680 | 67,633,920 |
| Size | 573.9 MB | 64.5 MB |
| Events in quadrant A | 3,271,431 | 418,490 |
| Events in quadrant B | 6,147,262 | 406,245 |
| Events in quadrant C | 3,515,785 | 415,241 |
| Events in quadrant D | 4,889,058 | 391,682 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13082 | 1 |
| B | 0 | 22178 | 1 |
| C | 0 | 14083 | 1 |
| D | 0 | 19137 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5959 | 46 | 0.771942% |
| B | 5959 | 418 | 7.014600% |
| C | 5959 | 189 | 3.171673% |
| D | 5958 | 144 | 2.416918% |

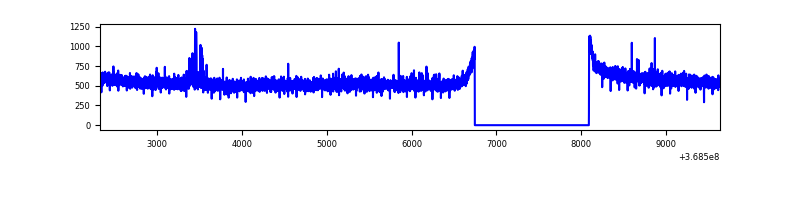

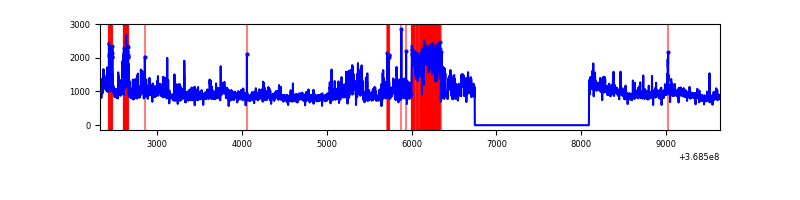

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7304 | 5959 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7304 | 5959 | 213 | 213 | 2.92% | 3.57% |  |
| C | 7304 | 5959 | 9 | 9 | 0.12% | 0.15% |  |
| D | 7303 | 5958 | 76 | 76 | 1.04% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 24482 | 143.88 | 841 | 826 | 164.4 |
| A | 13 | 254 | 11596 | 65.51 | 841 | 826 | 164.4 |
| A | 3 | 137 | 7287 | 39.3 | 841 | 826 | 164.4 |
| B | 6 | 159 | 1621524 | 10848.51 | 823 | 805 | 149.4 |
| B | 10 | 245 | 932775 | 6238.27 | 823 | 805 | 149.4 |
| B | 4 | 80 | 232692 | 1552.17 | 823 | 805 | 149.4 |
| C | 14 | 238 | 156039 | 848.83 | 813 | 821 | 182.9 |
| C | 0 | 10 | 110737 | 601.09 | 813 | 821 | 182.9 |
| C | 4 | 175 | 31461 | 167.56 | 813 | 821 | 182.9 |
| D | 8 | 195 | 1349811 | 7102.08 | 817 | 796 | 189.9 |
| D | 12 | 233 | 330872 | 1737.73 | 817 | 796 | 189.9 |
| D | 10 | 67 | 42965 | 222.0 | 817 | 796 | 189.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

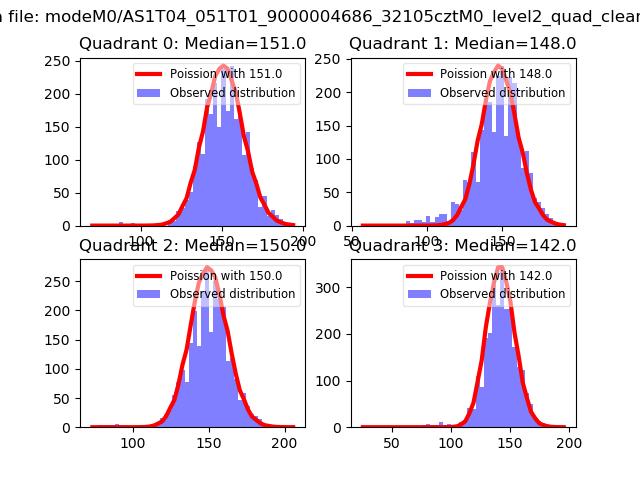

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

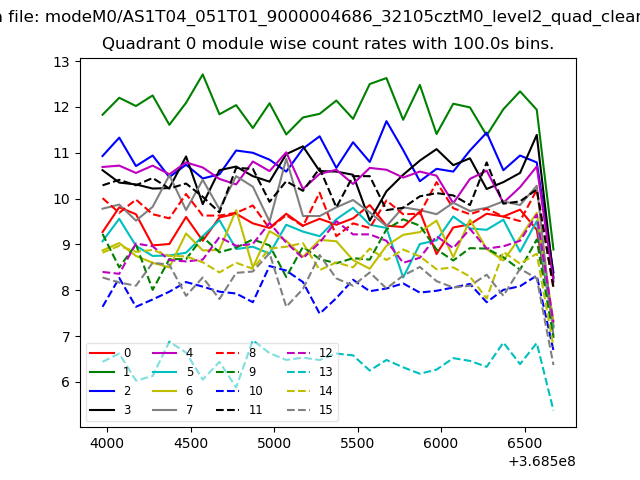

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

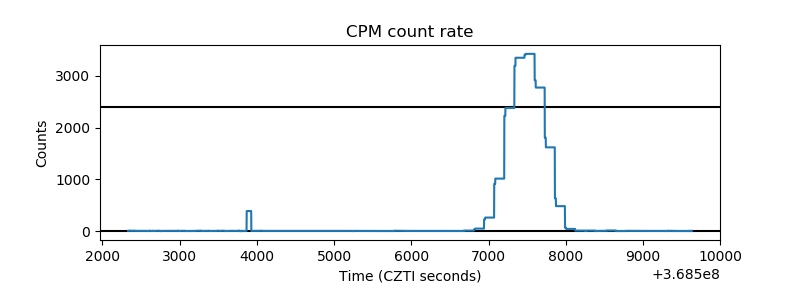

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

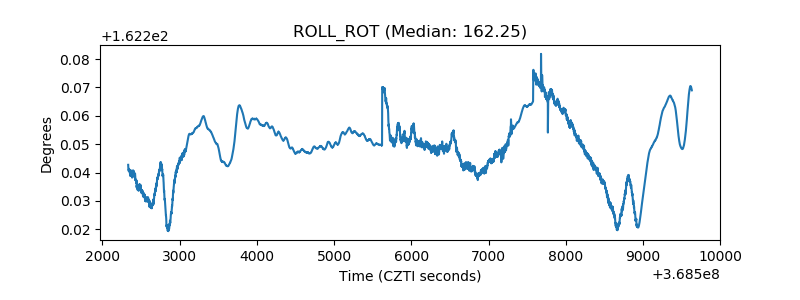

| _ROLL_ROT |  |

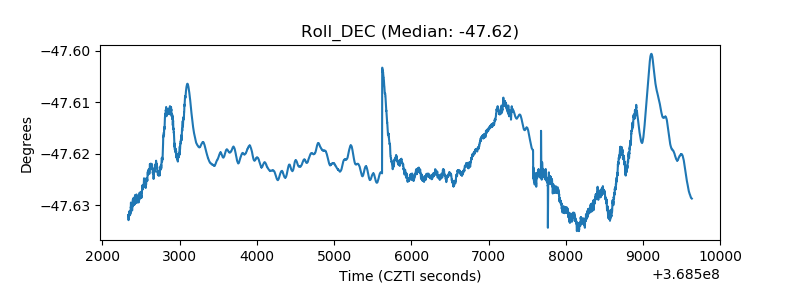

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
