| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_051T01_9000004686_32109cztM0_level2.evt | modeM0/AS1T04_051T01_9000004686_32109cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,593,610,560 | 274,726,080 |
| Size | 1.5 GB | 262.0 MB |
| Events in quadrant A | 8,678,265 | 1,837,498 |
| Events in quadrant B | 15,925,634 | 1,772,538 |
| Events in quadrant C | 9,335,747 | 1,798,527 |
| Events in quadrant D | 13,176,017 | 1,737,116 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35718 | 5 |
| B | 0 | 58650 | 3 |
| C | 0 | 37950 | 3 |
| D | 0 | 51992 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 350 | 0 |
| B | 0 | 350 | 0 |
| C | 0 | 350 | 0 |
| D | 0 | 350 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17035 | 345 | 2.025242% |
| B | 17037 | 1221 | 7.166755% |
| C | 17037 | 883 | 5.182837% |
| D | 17037 | 400 | 2.347831% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19751 | 17036 | 0 | 0 | 0.00% | 0.00% |  |
| B | 19752 | 17037 | 585 | 585 | 2.96% | 3.43% |  |
| C | 19752 | 17037 | 54 | 54 | 0.27% | 0.32% |  |
| D | 19752 | 17037 | 85 | 85 | 0.43% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 34269 | 72.61 | 2239 | 2198 | 441.7 |
| A | 13 | 6 | 24328 | 50.1 | 2239 | 2198 | 441.7 |
| A | 3 | 137 | 21300 | 43.25 | 2239 | 2198 | 441.7 |
| B | 6 | 159 | 4568407 | 11326.35 | 2168 | 2116 | 403.2 |
| B | 10 | 245 | 2062368 | 5110.3 | 2168 | 2116 | 403.2 |
| B | 0 | 190 | 275269 | 677.54 | 2168 | 2116 | 403.2 |
| C | 14 | 238 | 440808 | 911.23 | 2121 | 2138 | 481.4 |
| C | 0 | 10 | 357738 | 738.68 | 2121 | 2138 | 481.4 |
| C | 14 | 254 | 135354 | 276.72 | 2121 | 2138 | 481.4 |
| D | 8 | 195 | 3906668 | 7704.01 | 2171 | 2116 | 506.8 |
| D | 12 | 79 | 484179 | 951.15 | 2171 | 2116 | 506.8 |
| D | 12 | 233 | 366114 | 718.2 | 2171 | 2116 | 506.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

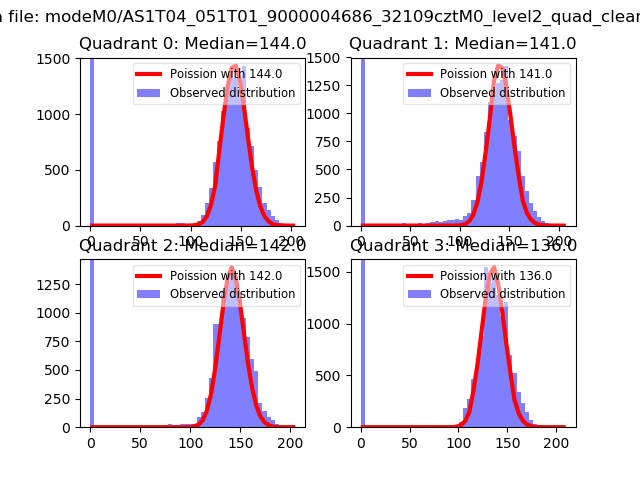

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

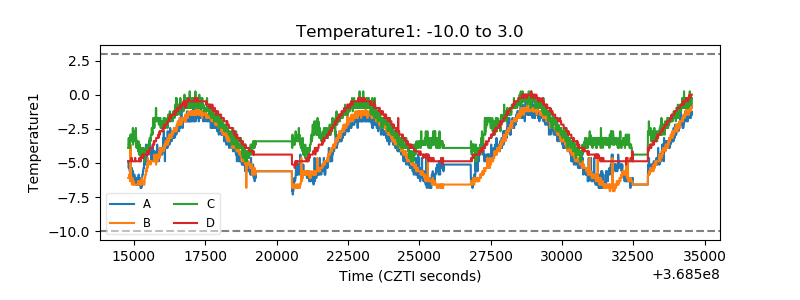

| Temperature 1 |  |

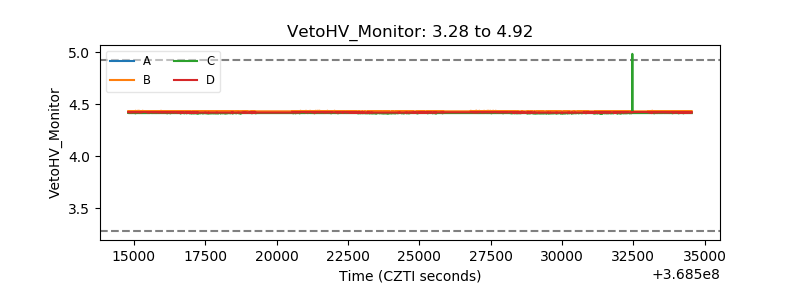

| Veto HV Monitor |  |
| Veto LLD |  |

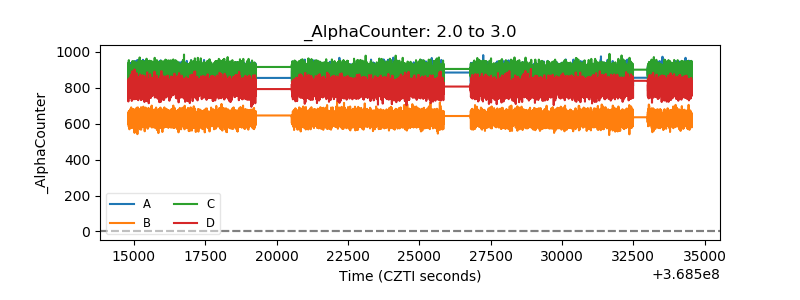

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
