| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_131T01_9000004690_32163cztM0_level2.evt | modeM0/AS1A09_131T01_9000004690_32163cztM0_level2_quad_clean.evt |
| Size (bytes) | 609,857,280 | 137,874,240 |
| Size | 581.6 MB | 131.5 MB |
| Events in quadrant A | 3,276,571 | 947,526 |
| Events in quadrant B | 5,682,068 | 960,568 |
| Events in quadrant C | 3,761,005 | 938,806 |
| Events in quadrant D | 5,316,169 | 881,540 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13809 | 2 |
| B | 0 | 21388 | 2 |
| C | 0 | 15268 | 2 |
| D | 0 | 20361 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6416 | 48 | 0.748130% |
| B | 6416 | 375 | 5.844763% |
| C | 6416 | 240 | 3.740648% |
| D | 6416 | 338 | 5.268080% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7756 | 6417 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7756 | 6417 | 117 | 117 | 1.51% | 1.82% |  |
| C | 7756 | 6417 | 69 | 69 | 0.89% | 1.08% |  |
| D | 7756 | 6417 | 179 | 179 | 2.31% | 2.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 17441 | 100.78 | 839 | 827 | 164.9 |
| A | 13 | 6 | 13236 | 75.27 | 839 | 827 | 164.9 |
| A | 13 | 254 | 11145 | 62.59 | 839 | 827 | 164.9 |
| B | 6 | 159 | 1774621 | 11624.03 | 832 | 813 | 152.6 |
| B | 5 | 172 | 418461 | 2736.91 | 832 | 813 | 152.6 |
| B | 5 | 255 | 87525 | 568.24 | 832 | 813 | 152.6 |
| C | 0 | 10 | 383615 | 2074.15 | 811 | 818 | 184.6 |
| C | 14 | 238 | 134711 | 725.49 | 811 | 818 | 184.6 |
| C | 4 | 175 | 33712 | 178.23 | 811 | 818 | 184.6 |
| D | 8 | 195 | 1613395 | 8597.5 | 796 | 775 | 187.6 |
| D | 12 | 233 | 563146 | 2998.22 | 796 | 775 | 187.6 |
| D | 12 | 128 | 53770 | 282.53 | 796 | 775 | 187.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

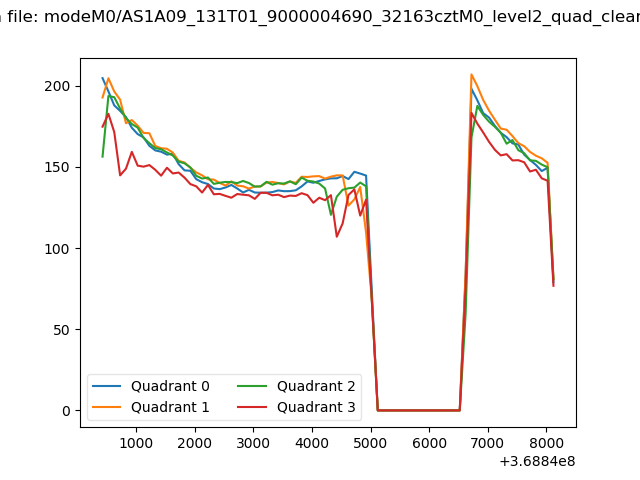

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

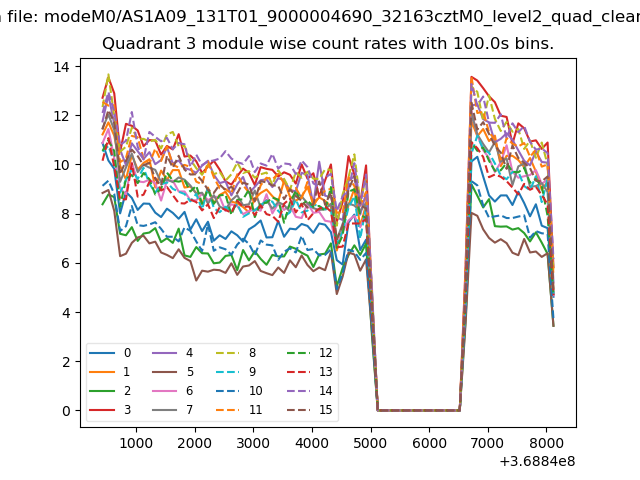

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

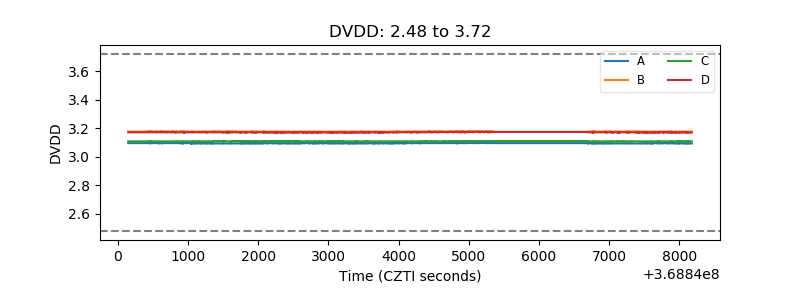

| D_VDD |  |

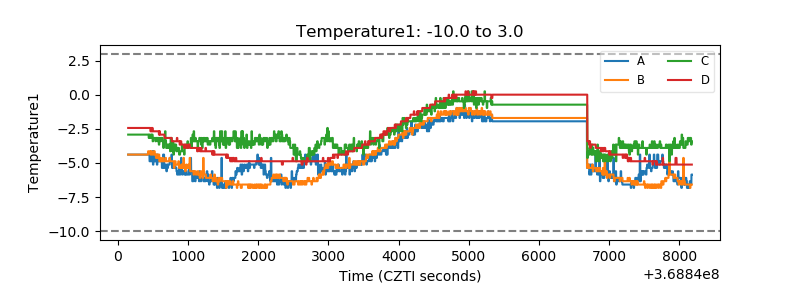

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

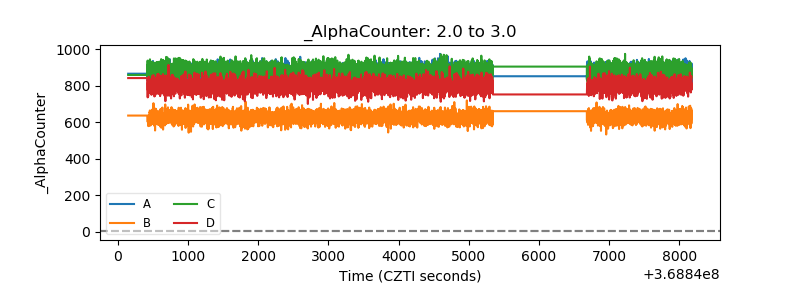

| Alpha Counter |  |
| _CPM_Rate |  |

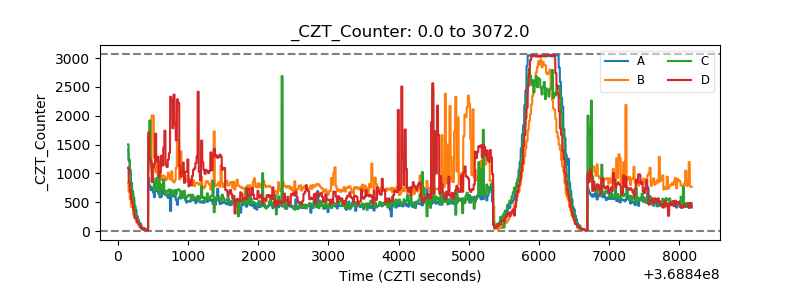

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

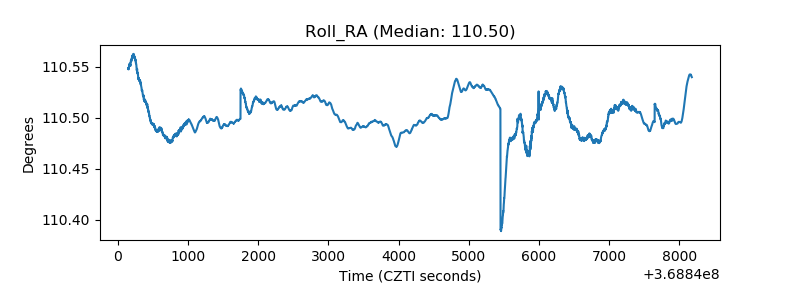

| _Roll_RA |  |
| Veto Counter |  |
