| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_131T01_9000004690_32196cztM0_level2.evt | modeM0/AS1A09_131T01_9000004690_32196cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,011,502,080 | 185,999,040 |
| Size | 964.6 MB | 177.4 MB |
| Events in quadrant A | 5,475,295 | 1,229,821 |
| Events in quadrant B | 8,995,298 | 1,239,007 |
| Events in quadrant C | 6,720,304 | 1,200,323 |
| Events in quadrant D | 8,654,577 | 1,156,507 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 236 | 0 |
| B | 0 | 236 | 0 |
| C | 0 | 236 | 0 |
| D | 0 | 236 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23949 | 3 |
| B | 0 | 35819 | 2 |
| C | 0 | 27467 | 2 |
| D | 0 | 34013 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11677 | 44 | 0.376809% |
| B | 11677 | 218 | 1.866918% |
| C | 11677 | 532 | 4.555965% |
| D | 11677 | 439 | 3.759527% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13267 | 11679 | 1 | 1 | 0.01% | 0.01% |  |
| B | 13267 | 11679 | 42 | 42 | 0.32% | 0.36% |  |
| C | 13267 | 11679 | 64 | 64 | 0.48% | 0.55% |  |
| D | 13267 | 11679 | 264 | 264 | 1.99% | 2.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 26120 | 88.78 | 1402 | 1377 | 278.7 |
| A | 13 | 254 | 22885 | 77.17 | 1402 | 1377 | 278.7 |
| A | 12 | 96 | 19012 | 63.27 | 1402 | 1377 | 278.7 |
| B | 6 | 159 | 3175899 | 12181.92 | 1385 | 1352 | 260.6 |
| B | 5 | 172 | 154256 | 586.75 | 1385 | 1352 | 260.6 |
| B | 0 | 245 | 84946 | 320.78 | 1385 | 1352 | 260.6 |
| C | 3 | 233 | 859315 | 2805.07 | 1322 | 1327 | 305.9 |
| C | 0 | 10 | 316207 | 1029.46 | 1322 | 1327 | 305.9 |
| C | 14 | 238 | 254273 | 826.97 | 1322 | 1327 | 305.9 |
| D | 8 | 195 | 2103143 | 6681.27 | 1329 | 1292 | 314.6 |
| D | 12 | 233 | 419837 | 1330.45 | 1329 | 1292 | 314.6 |
| D | 13 | 249 | 343393 | 1087.45 | 1329 | 1292 | 314.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

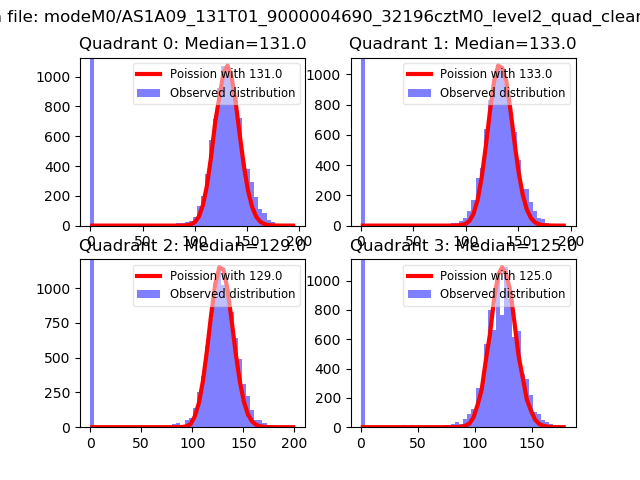

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

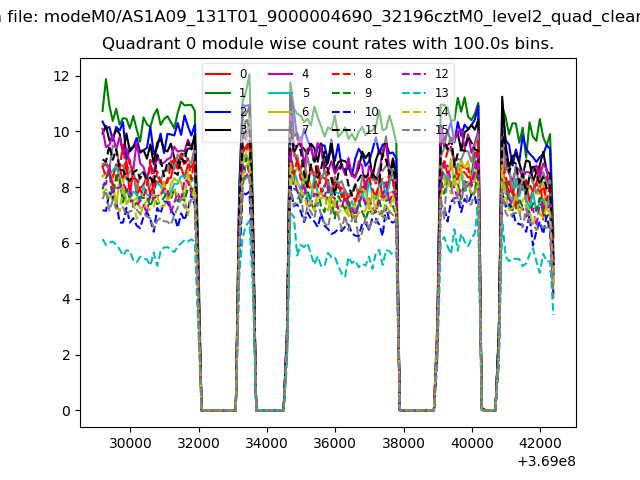

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

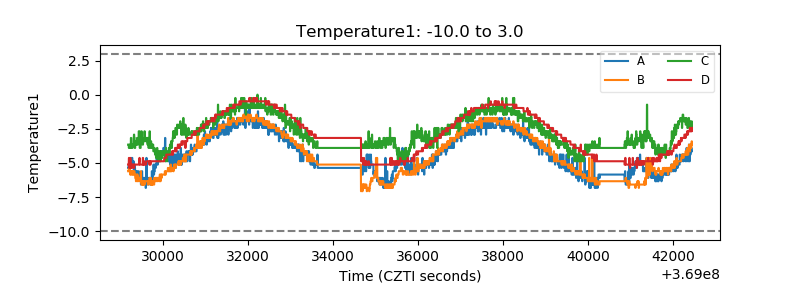

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

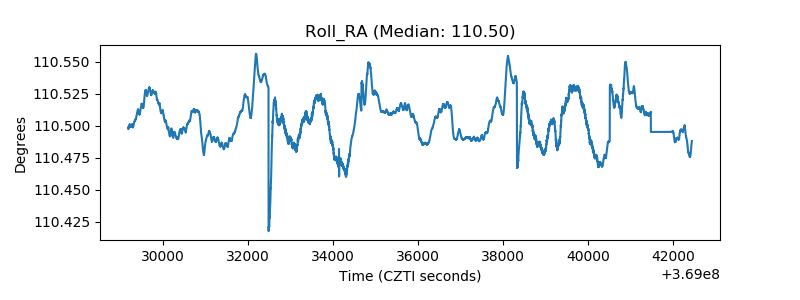

| _Roll_RA |  |
| Veto Counter |  |
