| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_057T01_9000004692_32205cztM0_level2.evt | modeM0/AS1A10_057T01_9000004692_32205cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,523,200 | 88,617,600 |
| Size | 572.7 MB | 84.5 MB |
| Events in quadrant A | 3,353,406 | 568,459 |
| Events in quadrant B | 5,425,525 | 568,332 |
| Events in quadrant C | 3,997,779 | 563,171 |
| Events in quadrant D | 4,984,764 | 544,500 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14160 | 3 |
| B | 0 | 20783 | 2 |
| C | 0 | 16098 | 2 |
| D | 0 | 19167 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6287 | 46 | 0.731669% |
| B | 6287 | 177 | 2.815333% |
| C | 6287 | 547 | 8.700493% |
| D | 6287 | 324 | 5.153491% |

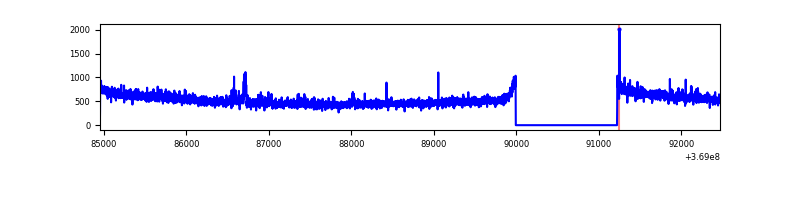

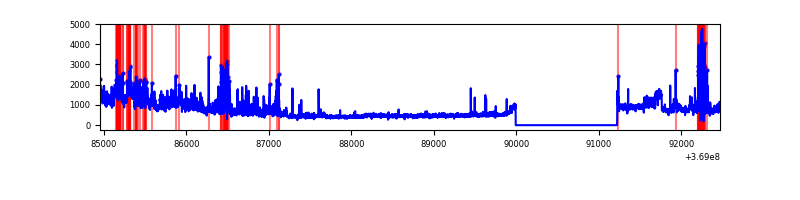

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7517 | 6288 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7517 | 6288 | 25 | 25 | 0.33% | 0.40% |  |
| C | 7517 | 6288 | 102 | 102 | 1.36% | 1.62% |  |
| D | 7517 | 6288 | 140 | 140 | 1.86% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 76123 | 450.83 | 841 | 825 | 167.0 |
| A | 13 | 6 | 18730 | 107.2 | 841 | 825 | 167.0 |
| A | 13 | 254 | 12767 | 71.5 | 841 | 825 | 167.0 |
| B | 6 | 159 | 1892032 | 11973.0 | 837 | 818 | 158.0 |
| B | 5 | 172 | 102902 | 646.28 | 837 | 818 | 158.0 |
| B | 0 | 229 | 60234 | 376.15 | 837 | 818 | 158.0 |
| C | 3 | 233 | 448533 | 2422.99 | 801 | 808 | 184.8 |
| C | 14 | 238 | 194900 | 1050.38 | 801 | 808 | 184.8 |
| C | 14 | 254 | 97157 | 521.42 | 801 | 808 | 184.8 |
| D | 8 | 195 | 1202778 | 6232.8 | 816 | 797 | 192.8 |
| D | 13 | 249 | 276335 | 1428.78 | 816 | 797 | 192.8 |
| D | 12 | 218 | 209636 | 1082.92 | 816 | 797 | 192.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

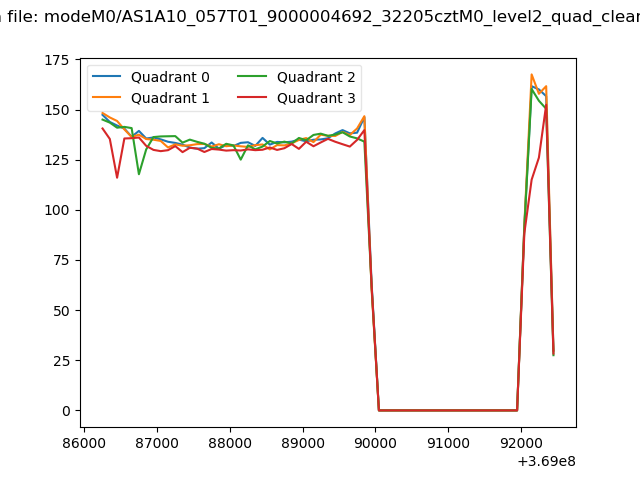

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

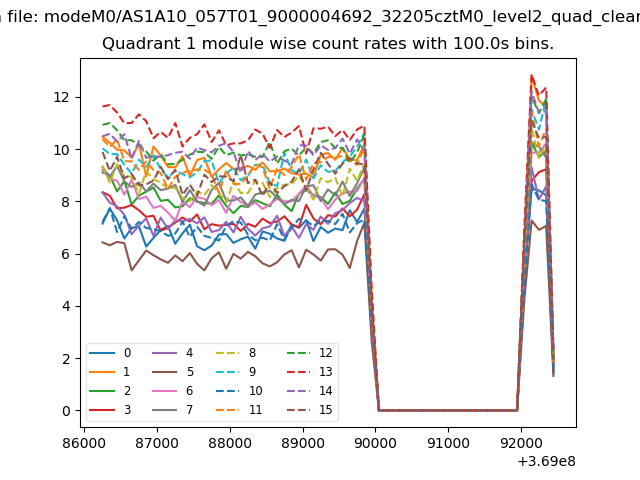

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

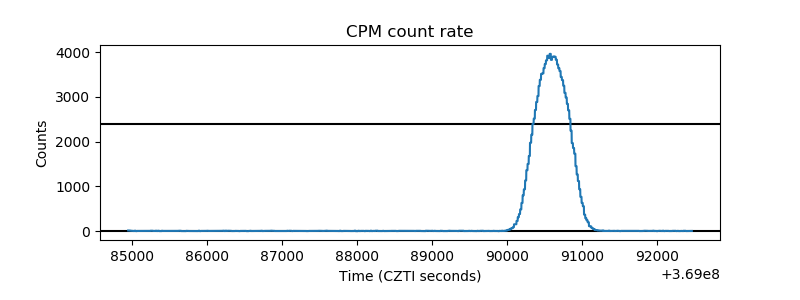

| _CPM_Rate |  |

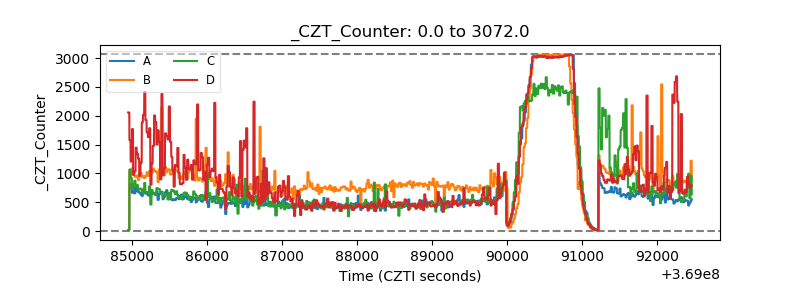

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

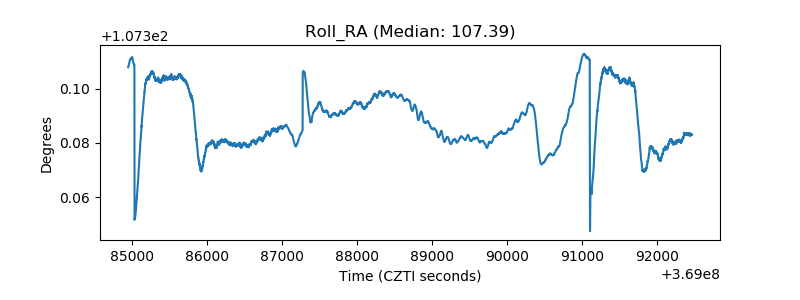

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

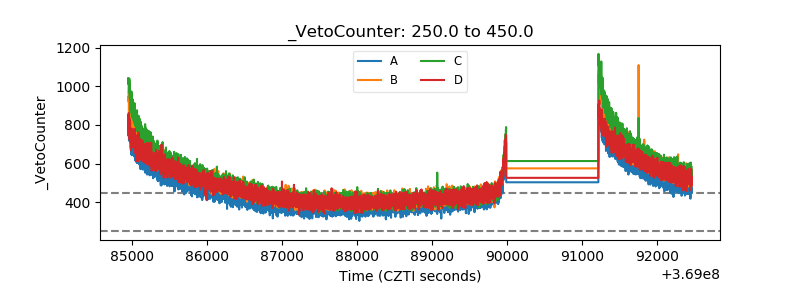

| Veto Counter |  |
