| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_057T01_9000004692_32213cztM0_level2.evt | modeM0/AS1A10_057T01_9000004692_32213cztM0_level2_quad_clean.evt |
| Size (bytes) | 616,515,840 | 90,048,960 |
| Size | 588.0 MB | 85.9 MB |
| Events in quadrant A | 3,281,434 | 573,905 |
| Events in quadrant B | 5,177,466 | 576,225 |
| Events in quadrant C | 3,418,262 | 559,938 |
| Events in quadrant D | 6,332,392 | 540,945 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14139 | 2 |
| B | 0 | 20763 | 1 |
| C | 0 | 14460 | 1 |
| D | 0 | 23725 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6821 | 151 | 2.213752% |
| B | 6821 | 224 | 3.283976% |
| C | 6821 | 411 | 6.025509% |
| D | 6821 | 288 | 4.222255% |

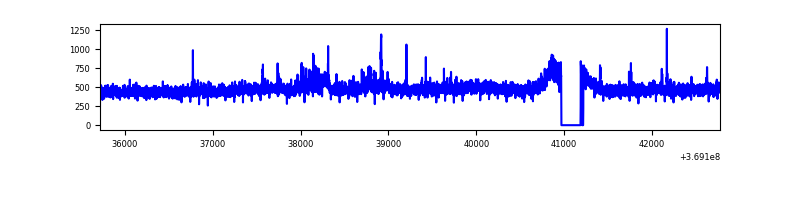

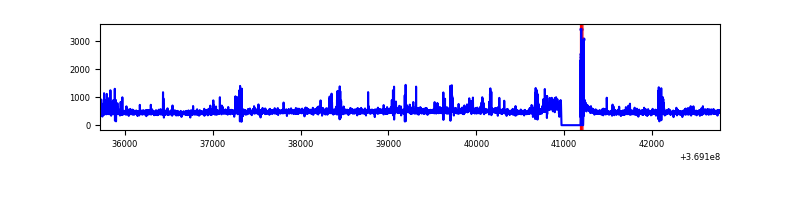

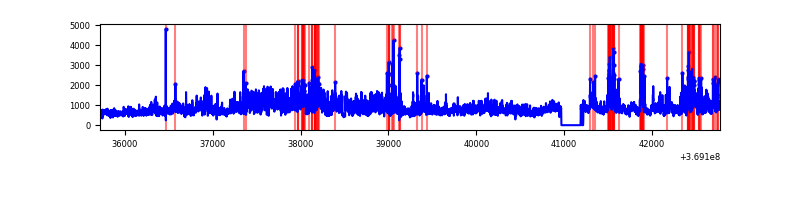

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7056 | 6823 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7056 | 6823 | 17 | 17 | 0.24% | 0.25% |  |
| C | 7056 | 6823 | 8 | 8 | 0.11% | 0.12% |  |
| D | 7056 | 6823 | 125 | 125 | 1.77% | 1.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 104295 | 622.91 | 818 | 799 | 166.1 |
| A | 13 | 254 | 12800 | 72.23 | 818 | 799 | 166.1 |
| A | 13 | 6 | 8928 | 48.93 | 818 | 799 | 166.1 |
| B | 6 | 159 | 1805740 | 11604.88 | 807 | 786 | 155.5 |
| B | 5 | 172 | 61212 | 388.51 | 807 | 786 | 155.5 |
| B | 0 | 190 | 52932 | 335.27 | 807 | 786 | 155.5 |
| C | 14 | 238 | 210883 | 1145.84 | 771 | 775 | 183.4 |
| C | 14 | 254 | 121025 | 655.79 | 771 | 775 | 183.4 |
| C | 0 | 10 | 37007 | 197.59 | 771 | 775 | 183.4 |
| D | 5 | 172 | 2150246 | 11339.58 | 787 | 764 | 189.6 |
| D | 8 | 195 | 528247 | 2782.73 | 787 | 764 | 189.6 |
| D | 12 | 233 | 278308 | 1464.18 | 787 | 764 | 189.6 |

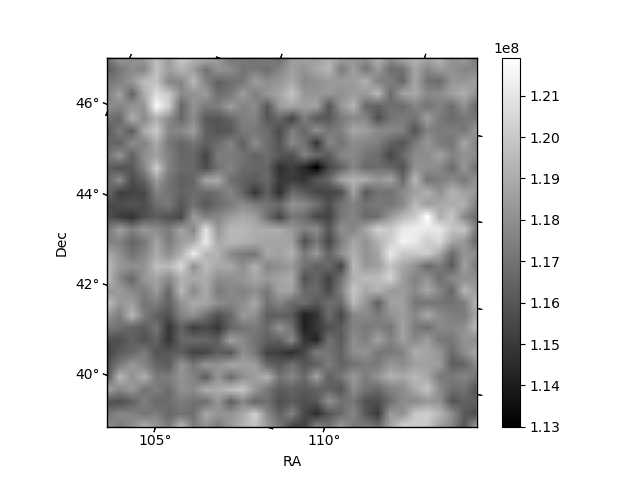

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

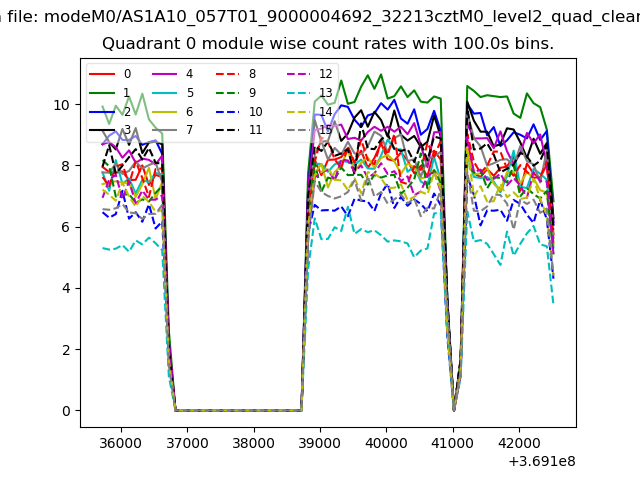

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

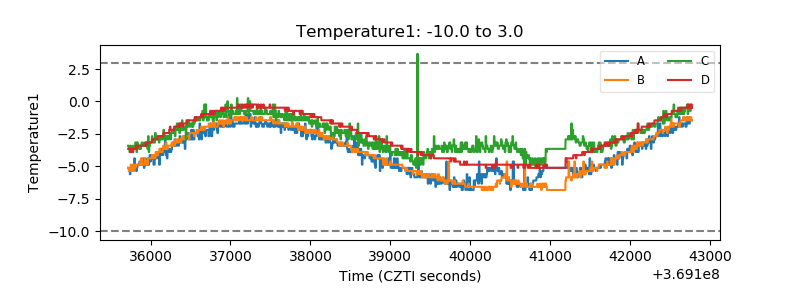

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

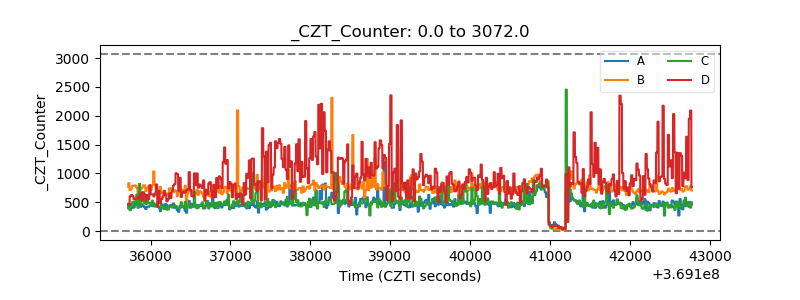

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

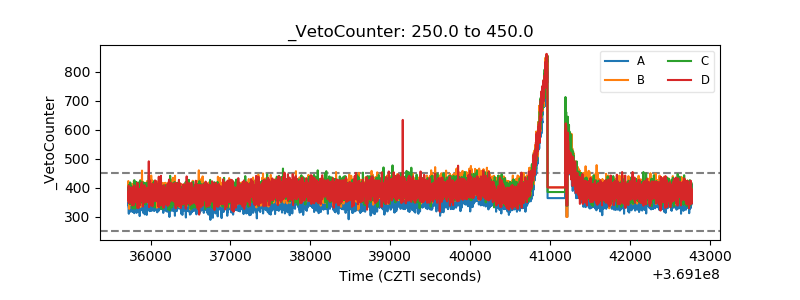

| Veto Counter |  |
