| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_057T01_9000004692_32222cztM0_level2.evt | modeM0/AS1A10_057T01_9000004692_32222cztM0_level2_quad_clean.evt |
| Size (bytes) | 626,886,720 | 112,394,880 |
| Size | 597.8 MB | 107.2 MB |
| Events in quadrant A | 3,198,828 | 762,616 |
| Events in quadrant B | 5,586,391 | 771,135 |
| Events in quadrant C | 3,812,584 | 748,672 |
| Events in quadrant D | 5,969,636 | 689,892 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13376 | 3 |
| B | 0 | 20897 | 2 |
| C | 0 | 15328 | 2 |
| D | 0 | 22108 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6185 | 49 | 0.792239% |
| B | 6185 | 374 | 6.046888% |
| C | 6185 | 870 | 14.066289% |
| D | 6185 | 431 | 6.968472% |

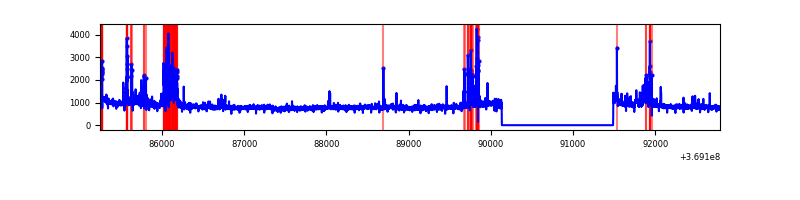

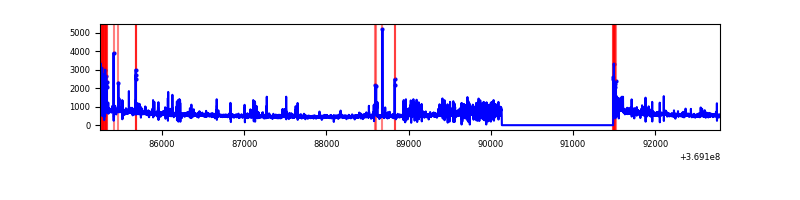

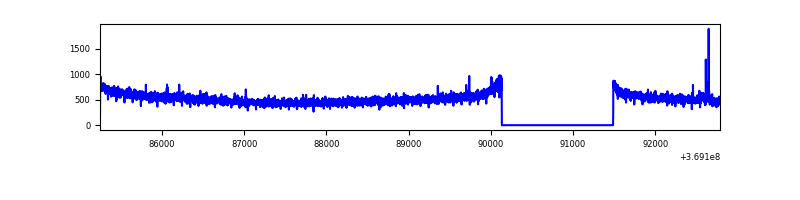

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7540 | 6186 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7540 | 6186 | 124 | 124 | 1.64% | 2.00% |  |
| C | 7540 | 6186 | 42 | 42 | 0.56% | 0.68% |  |
| D | 7540 | 6186 | 257 | 257 | 3.41% | 4.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 15170 | 88.58 | 822 | 809 | 162.1 |
| A | 13 | 254 | 12189 | 70.2 | 822 | 809 | 162.1 |
| A | 13 | 6 | 11316 | 64.81 | 822 | 809 | 162.1 |
| B | 6 | 159 | 1740324 | 11567.86 | 814 | 797 | 150.4 |
| B | 4 | 80 | 288971 | 1916.36 | 814 | 797 | 150.4 |
| B | 5 | 172 | 203132 | 1345.53 | 814 | 797 | 150.4 |
| C | 14 | 238 | 314398 | 1791.49 | 757 | 763 | 175.1 |
| C | 14 | 254 | 262472 | 1494.89 | 757 | 763 | 175.1 |
| C | 0 | 10 | 191737 | 1090.85 | 757 | 763 | 175.1 |
| D | 8 | 195 | 2061016 | 11293.73 | 770 | 748 | 182.4 |
| D | 13 | 249 | 388663 | 2126.43 | 770 | 748 | 182.4 |
| D | 7 | 238 | 234491 | 1281.3 | 770 | 748 | 182.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

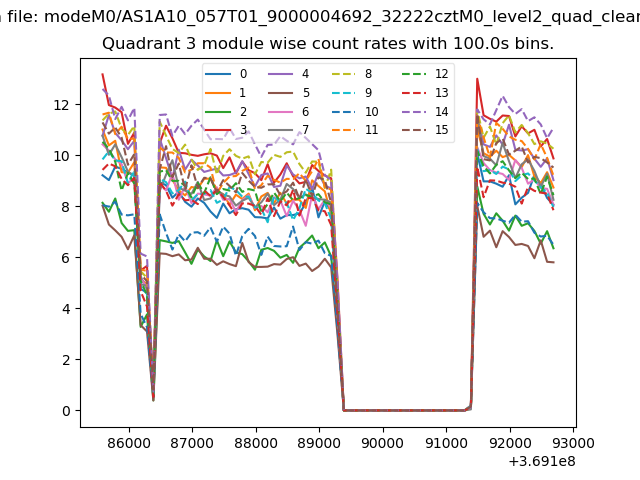

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

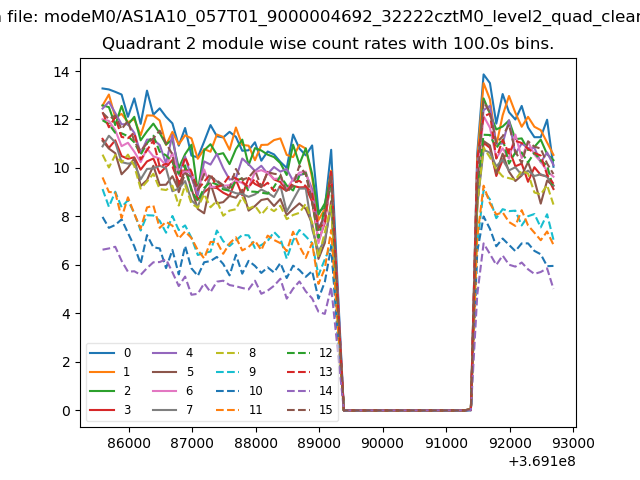

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

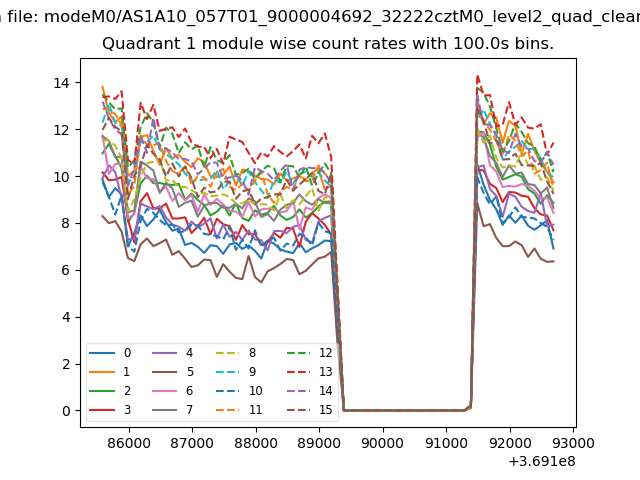

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

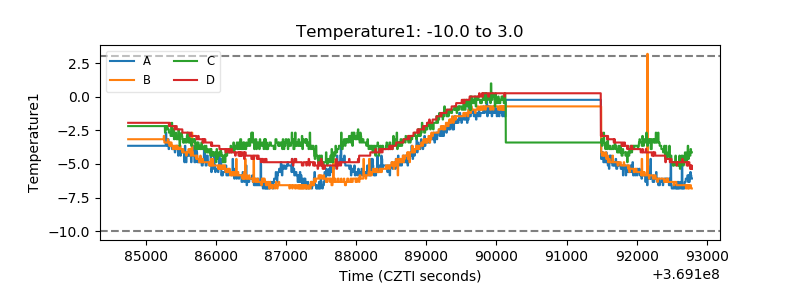

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

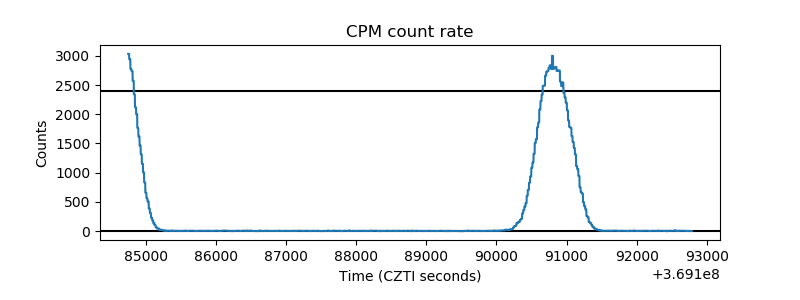

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
