| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_054T01_9000004694_32244cztM0_level2.evt | modeM0/AS1T04_054T01_9000004694_32244cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,122,981,120 | 179,576,640 |
| Size | 1.0 GB | 171.3 MB |
| Events in quadrant A | 6,380,742 | 1,168,446 |
| Events in quadrant B | 10,313,613 | 1,163,796 |
| Events in quadrant C | 7,340,491 | 1,117,638 |
| Events in quadrant D | 9,092,680 | 1,085,396 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 266 | 0 |
| B | 0 | 266 | 0 |
| C | 0 | 266 | 0 |
| D | 0 | 266 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27168 | 4 |
| B | 0 | 40409 | 3 |
| C | 0 | 29794 | 3 |
| D | 0 | 35842 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13081 | 275 | 2.102286% |
| B | 13081 | 487 | 3.722957% |
| C | 13081 | 872 | 6.666157% |
| D | 13081 | 331 | 2.530388% |

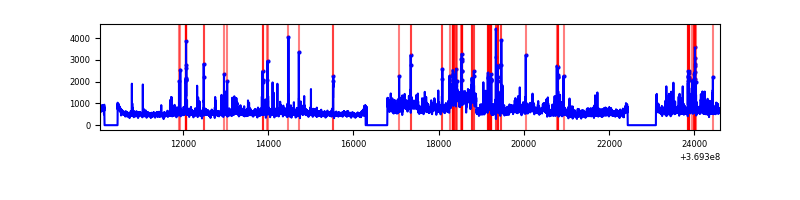

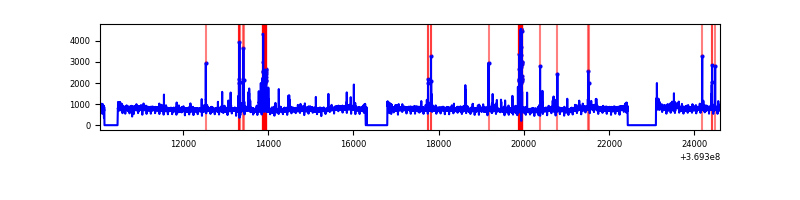

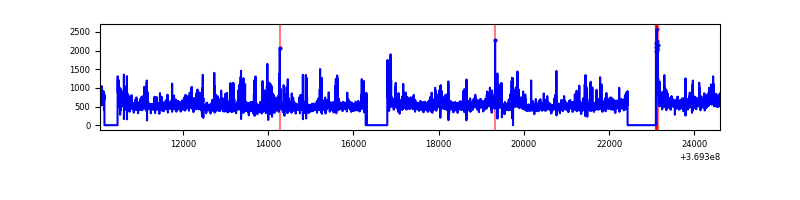

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14551 | 13085 | 12 | 12 | 0.08% | 0.09% |  |
| B | 14551 | 13085 | 78 | 78 | 0.54% | 0.60% |  |
| C | 14551 | 13085 | 11 | 11 | 0.08% | 0.08% |  |
| D | 14551 | 13085 | 107 | 107 | 0.74% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 106402 | 322.82 | 1614 | 1579 | 324.7 |
| A | 13 | 6 | 28109 | 81.7 | 1614 | 1579 | 324.7 |
| A | 13 | 254 | 25410 | 73.39 | 1614 | 1579 | 324.7 |
| B | 6 | 159 | 3481051 | 11494.37 | 1590 | 1549 | 302.7 |
| B | 5 | 172 | 253051 | 830.82 | 1590 | 1549 | 302.7 |
| B | 0 | 229 | 82272 | 266.66 | 1590 | 1549 | 302.7 |
| C | 3 | 233 | 528869 | 1465.19 | 1523 | 1529 | 359.9 |
| C | 14 | 238 | 431848 | 1195.62 | 1523 | 1529 | 359.9 |
| C | 14 | 254 | 255806 | 706.5 | 1523 | 1529 | 359.9 |
| D | 8 | 195 | 2406837 | 6409.27 | 1562 | 1520 | 375.3 |
| D | 12 | 233 | 405467 | 1076.37 | 1562 | 1520 | 375.3 |
| D | 2 | 250 | 135821 | 357.86 | 1562 | 1520 | 375.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

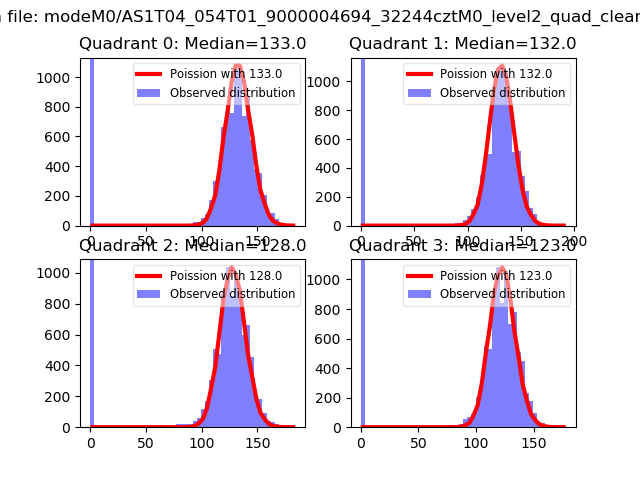

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

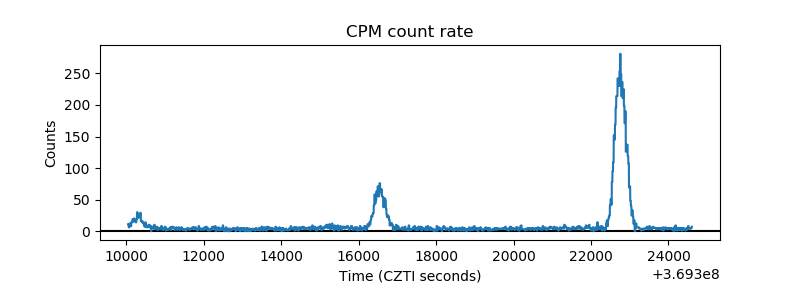

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

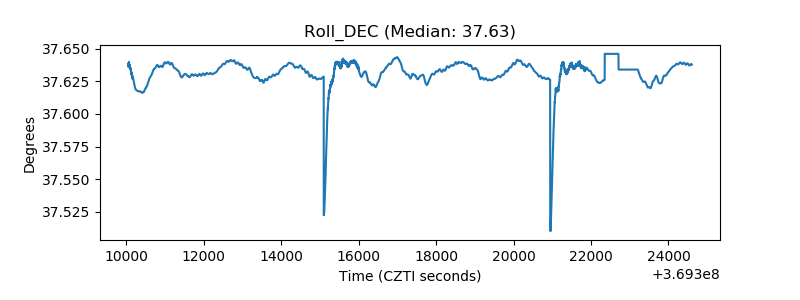

| _Roll_DEC |  |

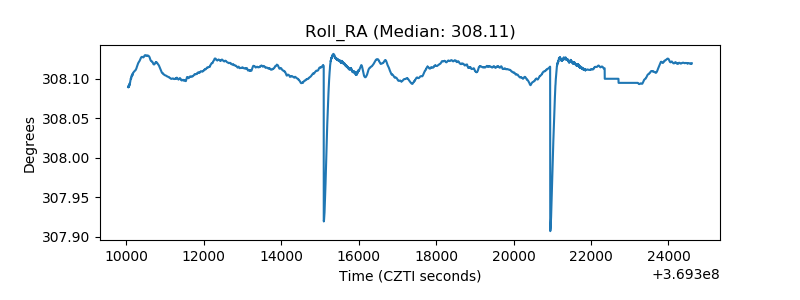

| _Roll_RA |  |

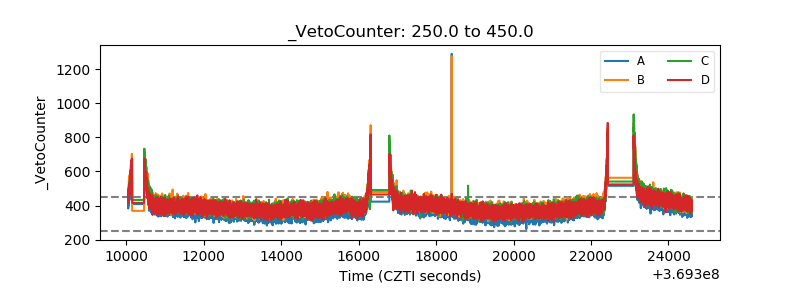

| Veto Counter |  |
