| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_131T01_9000004696_32255cztM0_level2.evt | modeM0/AS1A09_131T01_9000004696_32255cztM0_level2_quad_clean.evt |
| Size (bytes) | 283,403,520 | 59,765,760 |
| Size | 270.3 MB | 57.0 MB |
| Events in quadrant A | 1,561,983 | 398,512 |
| Events in quadrant B | 2,539,244 | 404,274 |
| Events in quadrant C | 1,760,042 | 401,089 |
| Events in quadrant D | 2,505,425 | 380,758 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 66 | 0 |
| B | 0 | 66 | 0 |
| C | 0 | 66 | 0 |
| D | 0 | 66 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6680 | 3 |
| B | 0 | 9769 | 2 |
| C | 0 | 7289 | 2 |
| D | 0 | 9632 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3161 | 114 | 3.606454% |
| B | 3161 | 188 | 5.947485% |
| C | 3161 | 169 | 5.346409% |
| D | 3161 | 158 | 4.998418% |

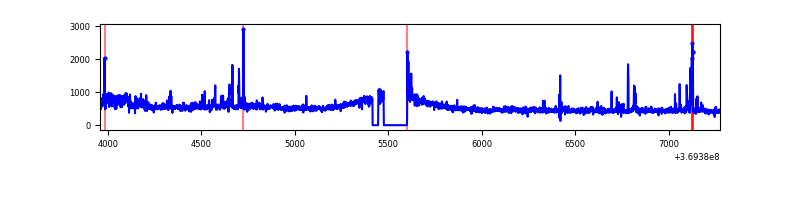

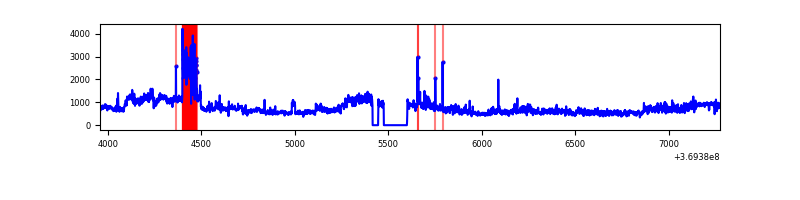

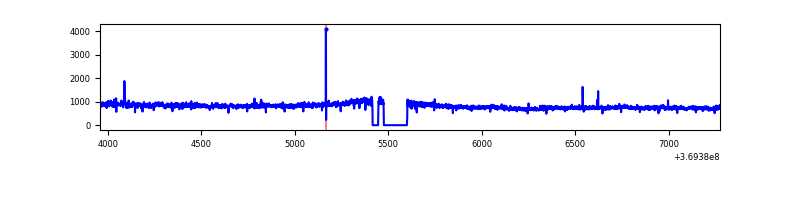

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3316 | 3162 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3316 | 3162 | 1 | 1 | 0.03% | 0.03% |  |
| C | 3316 | 3162 | 7 | 7 | 0.21% | 0.22% |  |
| D | 3316 | 3162 | 75 | 75 | 2.26% | 2.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 13867 | 163.45 | 400 | 391 | 82.4 |
| A | 13 | 254 | 6148 | 69.83 | 400 | 391 | 82.4 |
| A | 3 | 137 | 4314 | 47.58 | 400 | 391 | 82.4 |
| B | 6 | 159 | 875407 | 11111.38 | 396 | 384 | 78.8 |
| B | 4 | 80 | 80709 | 1020.0 | 396 | 384 | 78.8 |
| B | 12 | 111 | 10034 | 122.54 | 396 | 384 | 78.8 |
| C | 0 | 10 | 110160 | 1201.27 | 385 | 385 | 91.4 |
| C | 14 | 238 | 83036 | 904.45 | 385 | 385 | 91.4 |
| C | 14 | 254 | 29750 | 321.34 | 385 | 385 | 91.4 |
| D | 8 | 195 | 851685 | 9258.07 | 381 | 368 | 92.0 |
| D | 12 | 233 | 178107 | 1932.91 | 381 | 368 | 92.0 |
| D | 2 | 250 | 17374 | 184.94 | 381 | 368 | 92.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

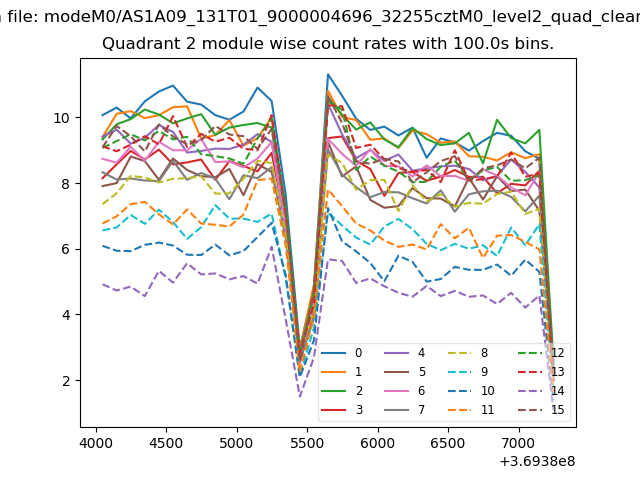

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

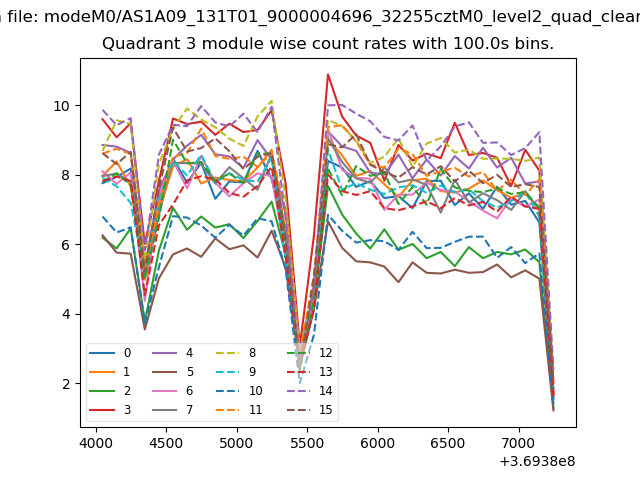

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

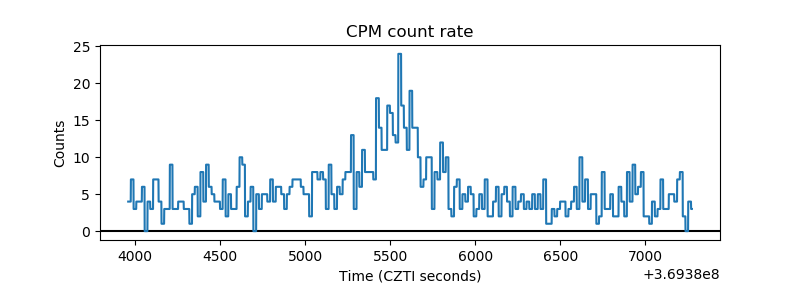

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

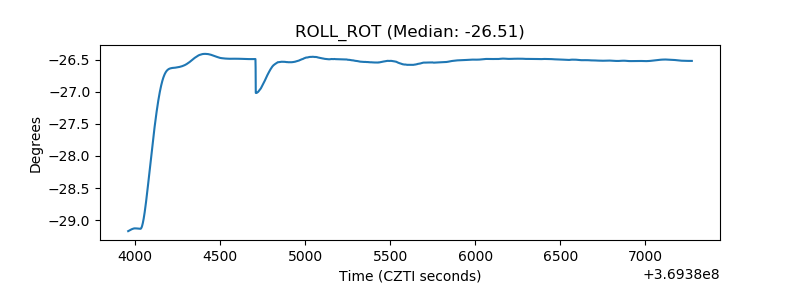

| _ROLL_ROT |  |
| _Roll_DEC |  |

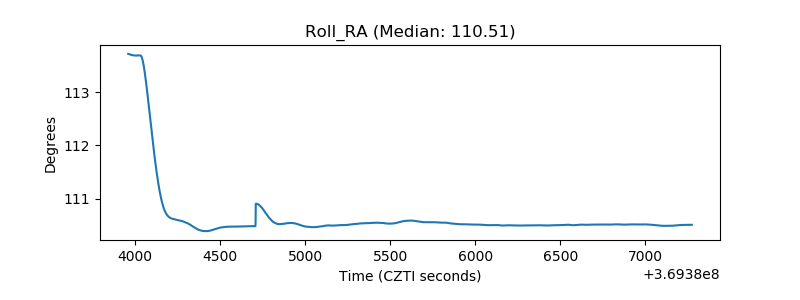

| _Roll_RA |  |
| Veto Counter |  |
