| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_131T01_9000004696_32259cztM0_level2.evt | modeM0/AS1A09_131T01_9000004696_32259cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,989,645,120 | 233,334,720 |
| Size | 1.9 GB | 222.5 MB |
| Events in quadrant A | 7,308,927 | 1,623,311 |
| Events in quadrant B | 15,735,560 | 1,586,703 |
| Events in quadrant C | 8,299,150 | 1,602,843 |
| Events in quadrant D | 27,835,528 | 1,144,961 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 326 | 0 |
| B | 0 | 326 | 0 |
| C | 0 | 326 | 0 |
| D | 0 | 326 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32389 | 2 |
| B | 0 | 58799 | 2 |
| C | 0 | 34510 | 2 |
| D | 0 | 93657 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16031 | 112 | 0.698646% |
| B | 16032 | 1902 | 11.863772% |
| C | 16031 | 315 | 1.964943% |
| D | 16031 | 7880 | 49.154763% |

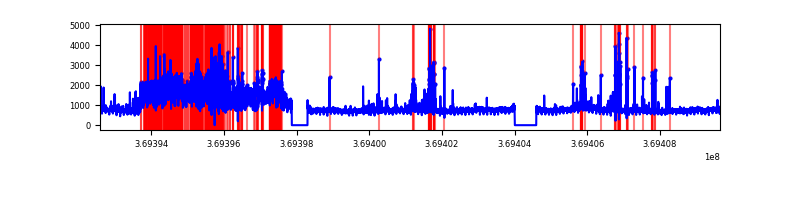

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17061 | 16033 | 0 | 0 | 0.00% | 0.00% |  |
| B | 17062 | 16034 | 713 | 713 | 4.18% | 4.45% |  |
| C | 17061 | 16033 | 61 | 61 | 0.36% | 0.38% |  |
| D | 17061 | 16032 | 7590 | 7590 | 44.49% | 47.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 35386 | 88.54 | 1883 | 1841 | 378.9 |
| A | 13 | 254 | 31338 | 77.86 | 1883 | 1841 | 378.9 |
| A | 3 | 137 | 19591 | 46.85 | 1883 | 1841 | 378.9 |
| B | 6 | 159 | 4275202 | 12200.2 | 1819 | 1766 | 350.3 |
| B | 4 | 80 | 3556958 | 10149.69 | 1819 | 1766 | 350.3 |
| B | 5 | 172 | 402573 | 1144.26 | 1819 | 1766 | 350.3 |
| C | 3 | 233 | 697527 | 1645.87 | 1808 | 1815 | 422.7 |
| C | 14 | 238 | 310224 | 729.61 | 1808 | 1815 | 422.7 |
| C | 0 | 10 | 112069 | 260.83 | 1808 | 1815 | 422.7 |
| D | 1 | 52 | 19014720 | 55878.0 | 1438 | 1395 | 340.3 |
| D | 8 | 195 | 2032622 | 5969.55 | 1438 | 1395 | 340.3 |
| D | 12 | 233 | 904057 | 2652.82 | 1438 | 1395 | 340.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

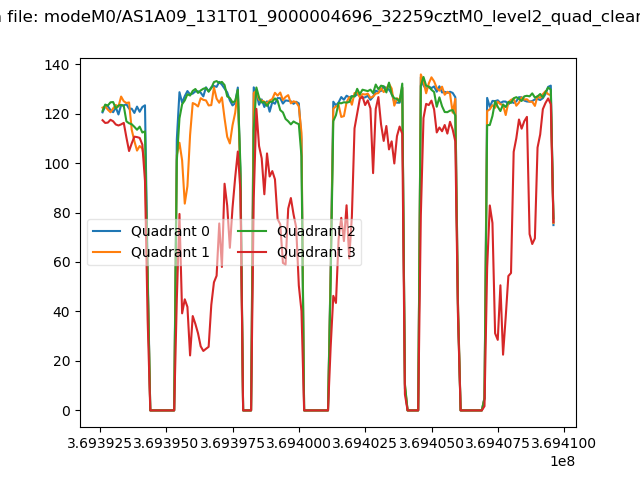

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

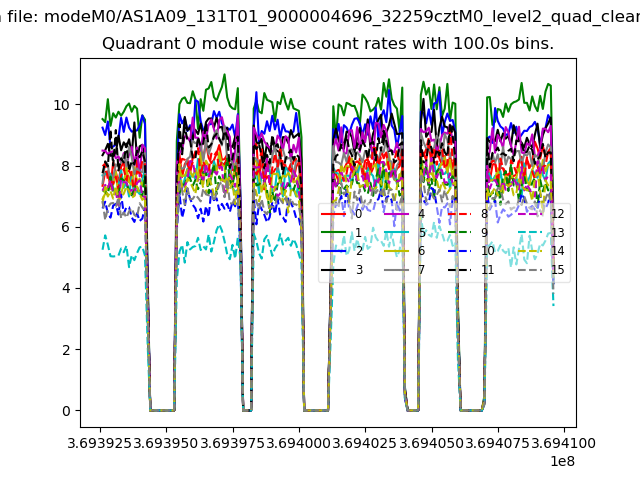

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

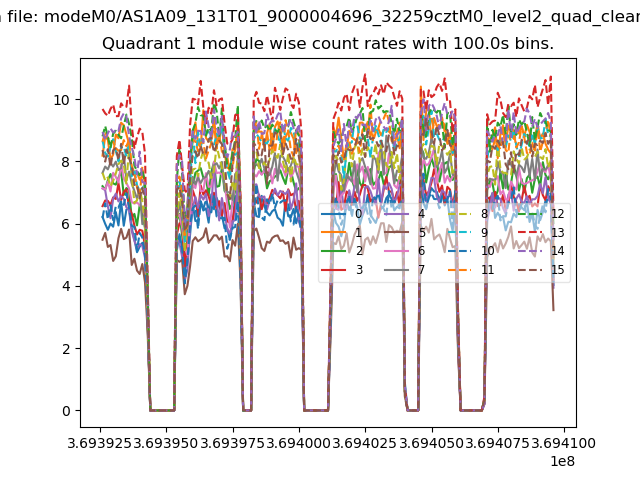

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

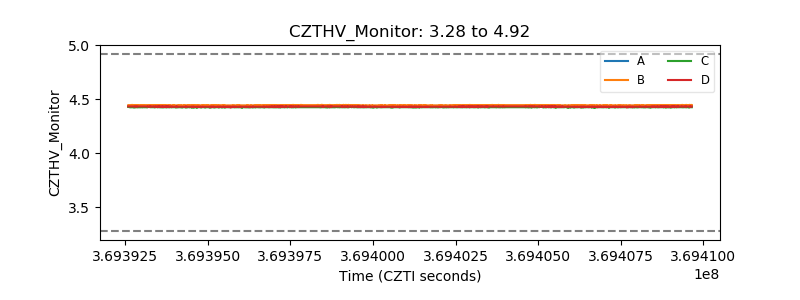

| CZT HV Monitor |  |

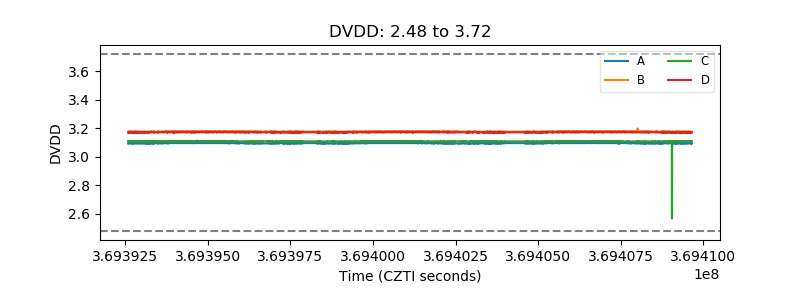

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

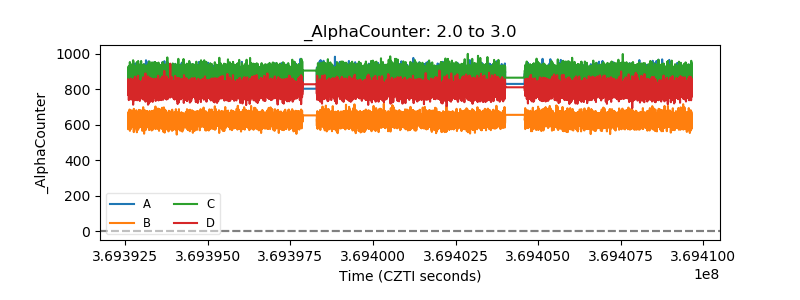

| Alpha Counter |  |

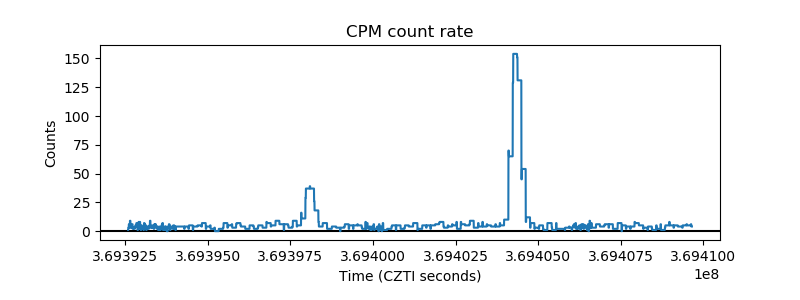

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
