| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_131T01_9000004696_32273cztM0_level2.evt | modeM0/AS1A09_131T01_9000004696_32273cztM0_level2_quad_clean.evt |
| Size (bytes) | 617,431,680 | 120,162,240 |
| Size | 588.8 MB | 114.6 MB |
| Events in quadrant A | 3,417,755 | 795,234 |
| Events in quadrant B | 5,769,867 | 795,250 |
| Events in quadrant C | 3,994,105 | 782,496 |
| Events in quadrant D | 5,024,267 | 758,938 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14937 | 3 |
| B | 0 | 22619 | 2 |
| C | 0 | 16314 | 2 |
| D | 0 | 19982 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7281 | 147 | 2.018953% |
| B | 7281 | 277 | 3.804422% |
| C | 7281 | 319 | 4.381266% |
| D | 7281 | 254 | 3.488532% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8136 | 7283 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8136 | 7283 | 53 | 53 | 0.65% | 0.73% |  |
| C | 8136 | 7283 | 93 | 93 | 1.14% | 1.28% |  |
| D | 8136 | 7283 | 97 | 97 | 1.19% | 1.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 23105 | 125.05 | 878 | 859 | 177.9 |
| A | 13 | 254 | 13300 | 69.93 | 878 | 859 | 177.9 |
| A | 3 | 137 | 9205 | 46.91 | 878 | 859 | 177.9 |
| B | 6 | 159 | 1988722 | 11998.25 | 864 | 842 | 165.7 |
| B | 5 | 172 | 175564 | 1054.57 | 864 | 842 | 165.7 |
| B | 4 | 80 | 48536 | 287.87 | 864 | 842 | 165.7 |
| C | 0 | 10 | 397794 | 2017.31 | 837 | 839 | 196.8 |
| C | 3 | 233 | 147230 | 743.95 | 837 | 839 | 196.8 |
| C | 14 | 238 | 140926 | 711.91 | 837 | 839 | 196.8 |
| D | 8 | 195 | 1136491 | 5706.12 | 839 | 813 | 199.0 |
| D | 12 | 218 | 313456 | 1570.85 | 839 | 813 | 199.0 |
| D | 1 | 52 | 165990 | 829.92 | 839 | 813 | 199.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

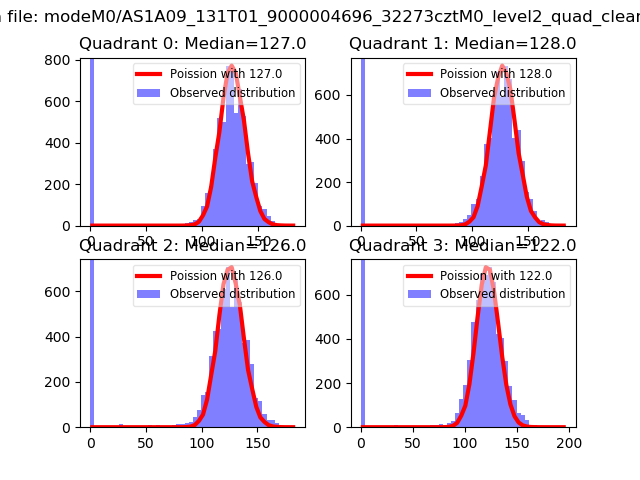

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

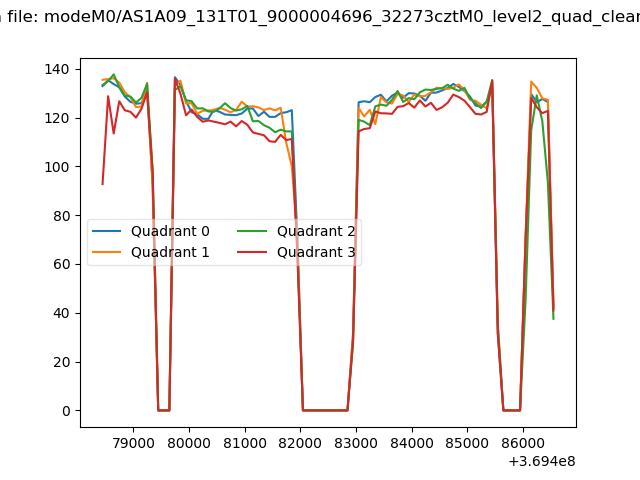

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

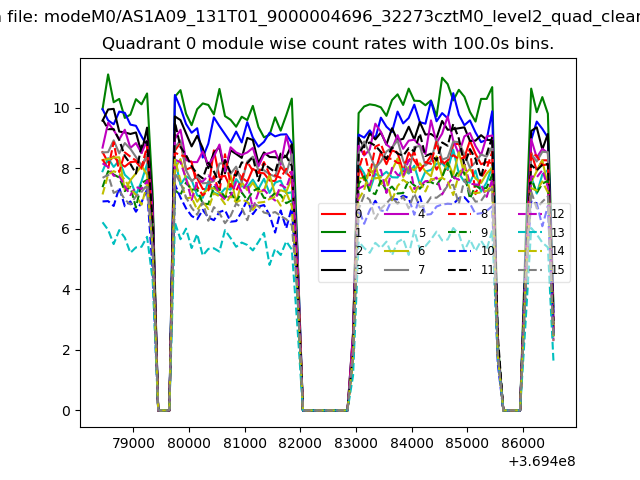

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

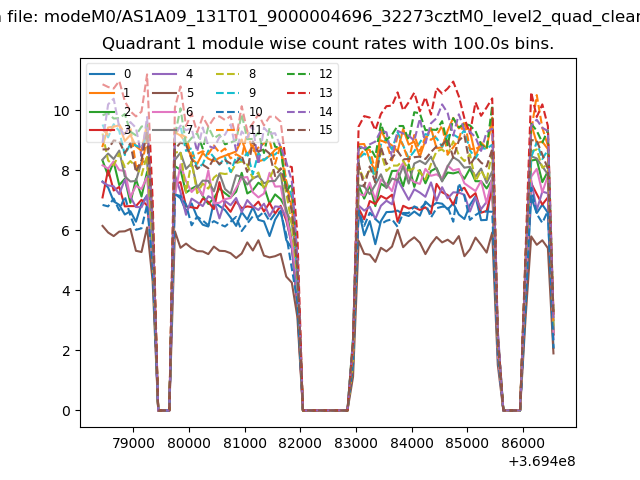

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

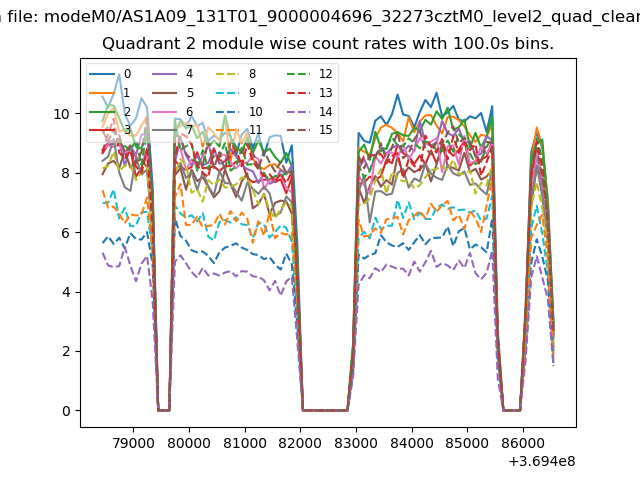

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

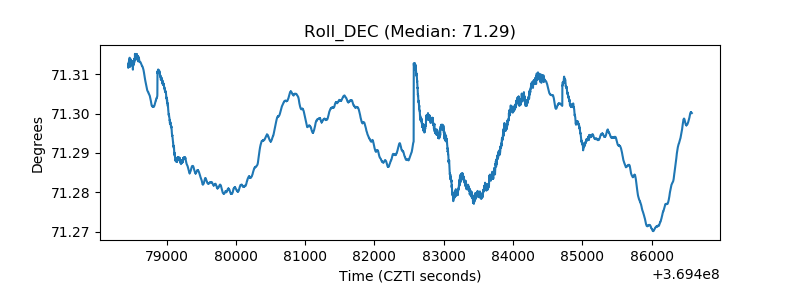

| _Roll_DEC |  |

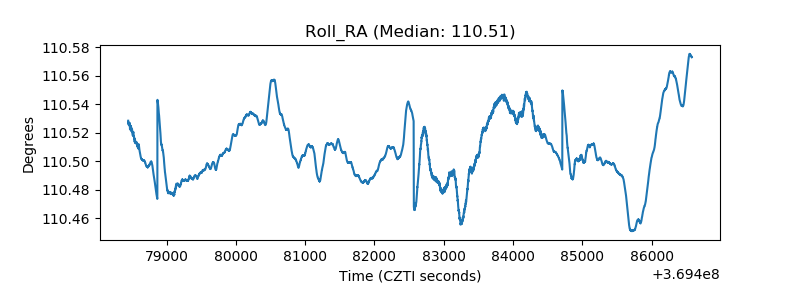

| _Roll_RA |  |

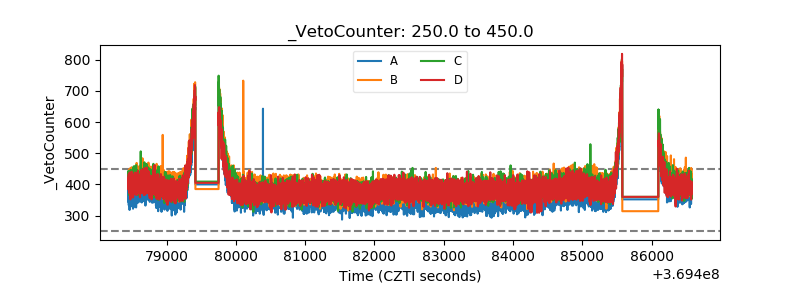

| Veto Counter |  |
