| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_131T01_9000004696_32277cztM0_level2.evt | modeM0/AS1A09_131T01_9000004696_32277cztM0_level2_quad_clean.evt |
| Size (bytes) | 643,599,360 | 92,684,160 |
| Size | 613.8 MB | 88.4 MB |
| Events in quadrant A | 3,196,134 | 600,141 |
| Events in quadrant B | 5,666,881 | 595,731 |
| Events in quadrant C | 3,682,167 | 601,331 |
| Events in quadrant D | 6,517,687 | 566,422 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13788 | 3 |
| B | 0 | 21454 | 2 |
| C | 0 | 15278 | 2 |
| D | 0 | 23626 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6343 | 63 | 0.993221% |
| B | 6343 | 238 | 3.752168% |
| C | 6343 | 297 | 4.682327% |
| D | 6343 | 658 | 10.373640% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7508 | 6344 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7508 | 6344 | 64 | 64 | 0.85% | 1.01% |  |
| C | 7508 | 6344 | 27 | 27 | 0.36% | 0.43% |  |
| D | 7508 | 6344 | 459 | 459 | 6.11% | 7.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 15460 | 89.62 | 819 | 804 | 163.5 |
| A | 0 | 6 | 12252 | 70.0 | 819 | 804 | 163.5 |
| A | 13 | 254 | 11997 | 68.45 | 819 | 804 | 163.5 |
| B | 6 | 159 | 1970622 | 13235.01 | 808 | 790 | 148.8 |
| B | 5 | 172 | 237131 | 1587.94 | 808 | 790 | 148.8 |
| B | 0 | 190 | 122725 | 819.26 | 808 | 790 | 148.8 |
| C | 3 | 233 | 185036 | 1010.98 | 793 | 797 | 182.2 |
| C | 14 | 238 | 162763 | 888.76 | 793 | 797 | 182.2 |
| C | 0 | 10 | 81946 | 445.29 | 793 | 797 | 182.2 |
| D | 8 | 195 | 1492247 | 8100.65 | 781 | 759 | 184.1 |
| D | 1 | 52 | 1086514 | 5897.01 | 781 | 759 | 184.1 |
| D | 12 | 6 | 365237 | 1979.57 | 781 | 759 | 184.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

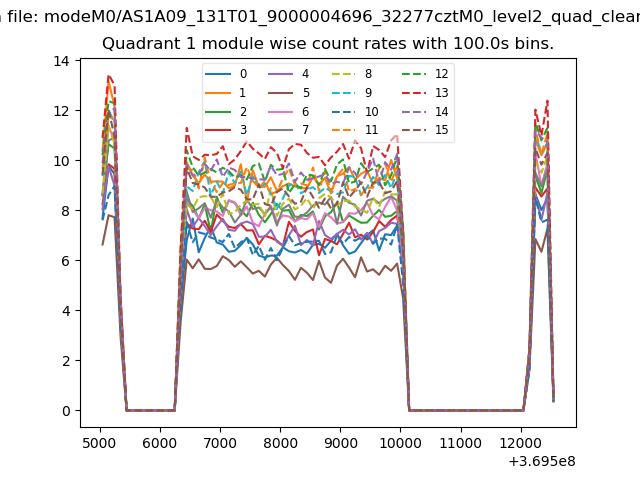

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

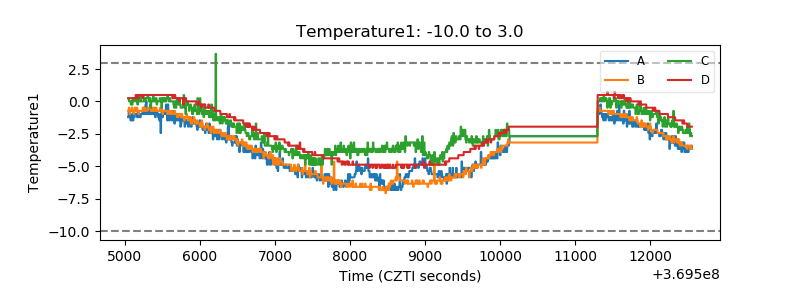

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

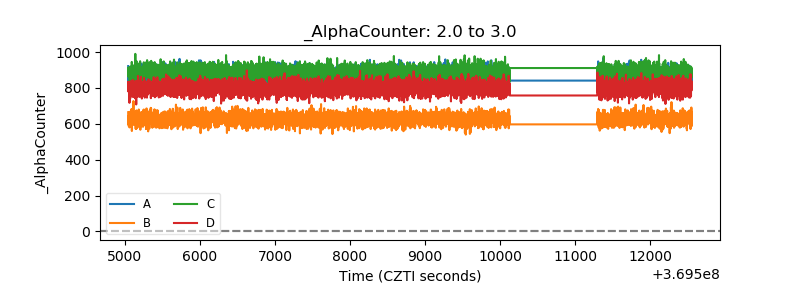

| Alpha Counter |  |

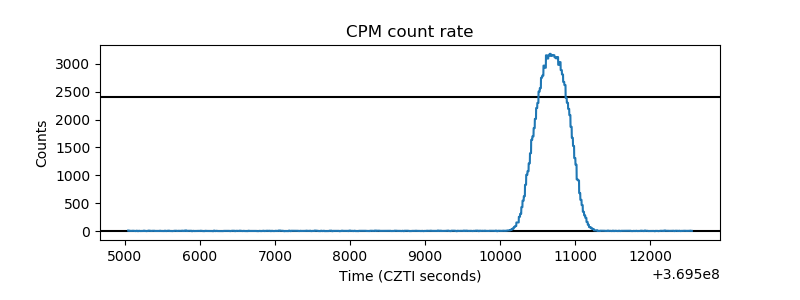

| _CPM_Rate |  |

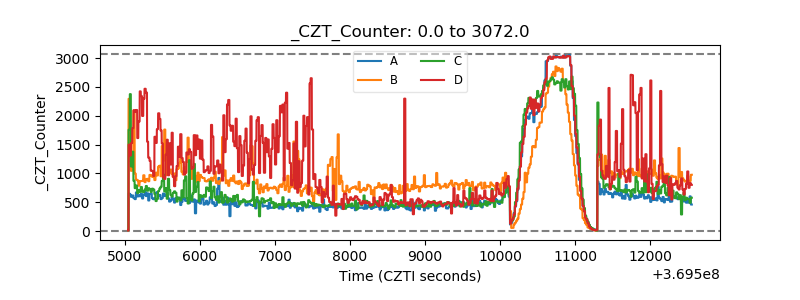

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

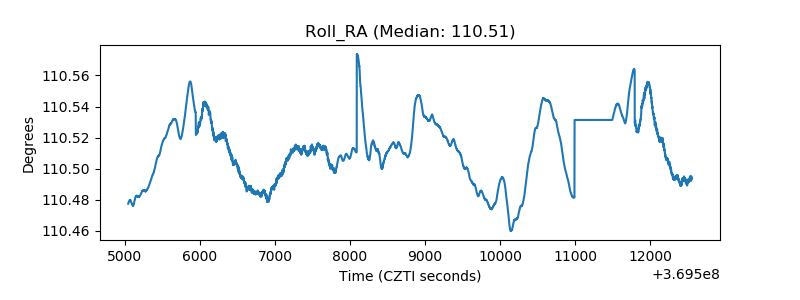

| _Roll_RA |  |

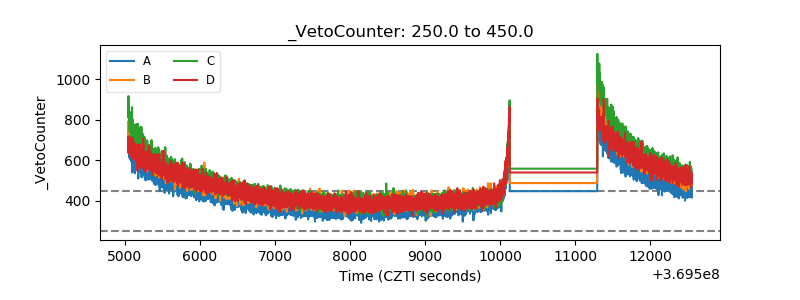

| Veto Counter |  |
