| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_131T01_9000004696_32283cztM0_level2.evt | modeM0/AS1A09_131T01_9000004696_32283cztM0_level2_quad_clean.evt |
| Size (bytes) | 635,137,920 | 110,638,080 |
| Size | 605.7 MB | 105.5 MB |
| Events in quadrant A | 3,142,236 | 742,650 |
| Events in quadrant B | 5,355,176 | 747,049 |
| Events in quadrant C | 3,525,130 | 692,460 |
| Events in quadrant D | 6,754,043 | 695,787 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14010 | 2 |
| B | 0 | 21083 | 1 |
| C | 0 | 14981 | 1 |
| D | 0 | 24730 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6777 | 95 | 1.401800% |
| B | 6777 | 212 | 3.128228% |
| C | 6777 | 629 | 9.281393% |
| D | 6777 | 586 | 8.646894% |

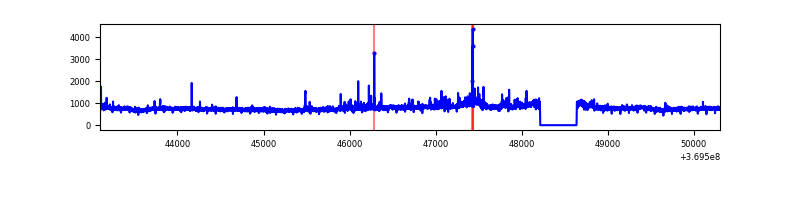

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7202 | 6778 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7202 | 6778 | 4 | 4 | 0.06% | 0.06% |  |
| C | 7202 | 6778 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7202 | 6778 | 314 | 314 | 4.36% | 4.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 6 | 16255 | 95.26 | 807 | 789 | 162.4 |
| A | 13 | 254 | 10924 | 62.43 | 807 | 789 | 162.4 |
| A | 3 | 137 | 8424 | 47.03 | 807 | 789 | 162.4 |
| B | 6 | 159 | 1955256 | 12722.35 | 802 | 783 | 153.6 |
| B | 0 | 190 | 71236 | 458.6 | 802 | 783 | 153.6 |
| B | 4 | 80 | 62104 | 399.16 | 802 | 783 | 153.6 |
| C | 14 | 238 | 244464 | 1418.26 | 734 | 738 | 171.8 |
| C | 14 | 254 | 183097 | 1061.16 | 734 | 738 | 171.8 |
| C | 3 | 233 | 141835 | 821.06 | 734 | 738 | 171.8 |
| D | 8 | 195 | 3053140 | 16836.86 | 758 | 735 | 181.3 |
| D | 13 | 249 | 296712 | 1632.59 | 758 | 735 | 181.3 |
| D | 7 | 38 | 261035 | 1435.79 | 758 | 735 | 181.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

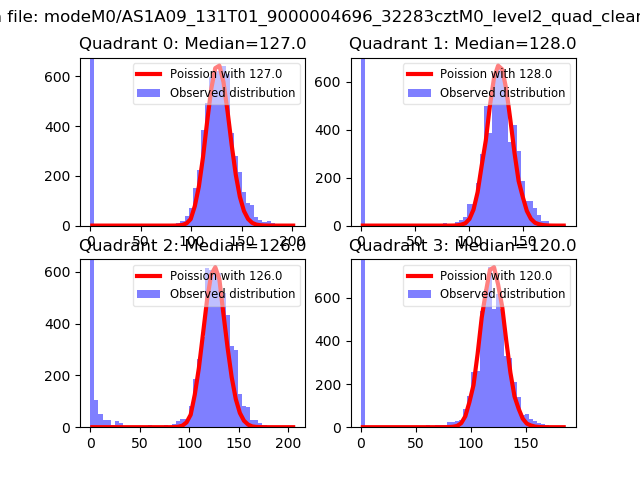

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

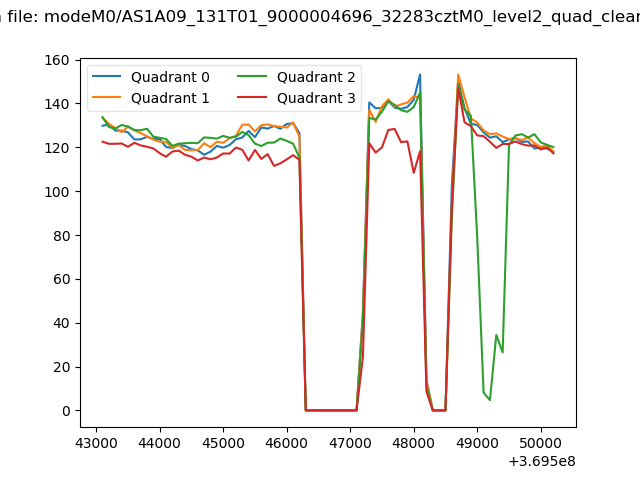

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

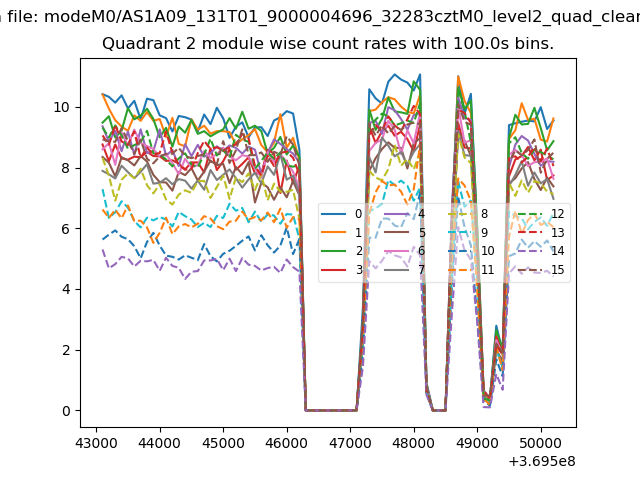

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

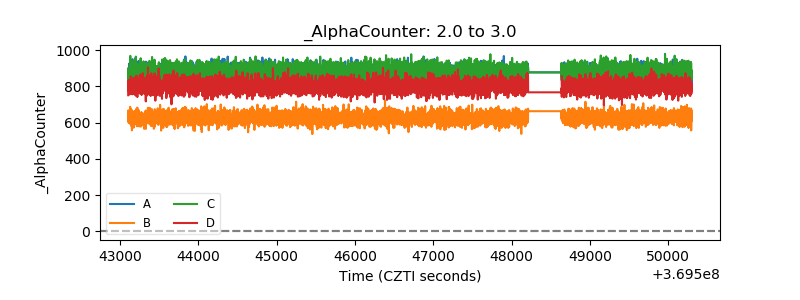

| Alpha Counter |  |

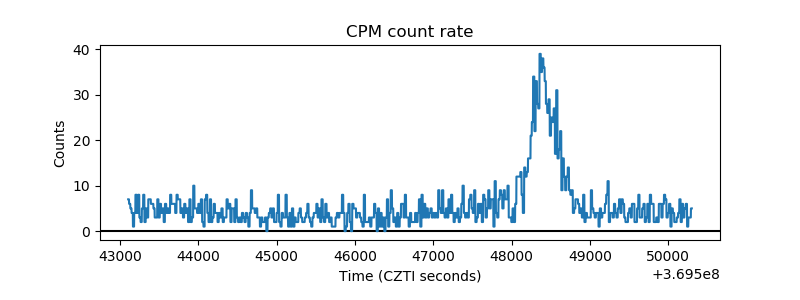

| _CPM_Rate |  |

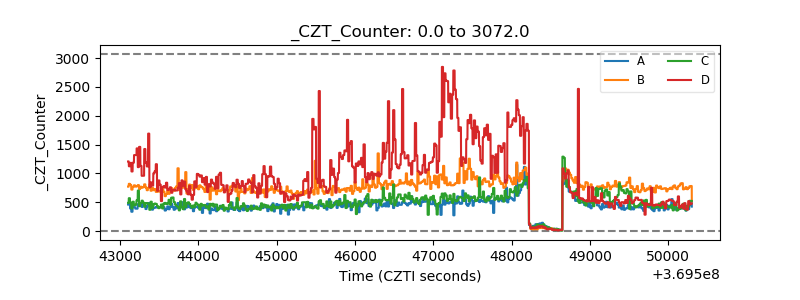

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

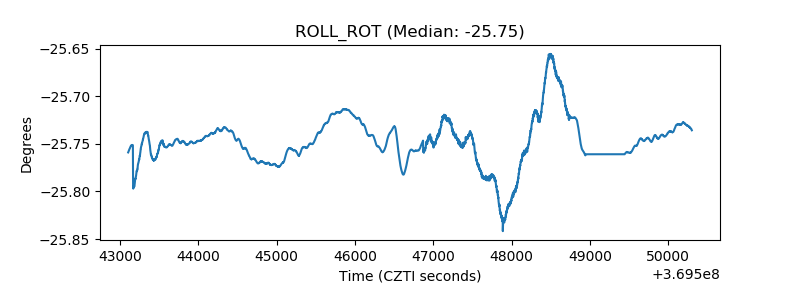

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
