| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_131T01_9000004696_32288cztM0_level2.evt | modeM0/AS1A09_131T01_9000004696_32288cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,671,157,440 | 291,836,160 |
| Size | 1.6 GB | 278.3 MB |
| Events in quadrant A | 8,776,584 | 1,939,561 |
| Events in quadrant B | 14,733,768 | 1,943,019 |
| Events in quadrant C | 9,178,008 | 1,916,749 |
| Events in quadrant D | 16,670,057 | 1,757,427 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 378 | 0 |
| B | 0 | 378 | 0 |
| C | 0 | 378 | 0 |
| D | 0 | 378 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38245 | 4 |
| B | 0 | 57481 | 3 |
| C | 0 | 38811 | 3 |
| D | 0 | 62033 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18611 | 213 | 1.144484% |
| B | 18611 | 343 | 1.842996% |
| C | 18611 | 354 | 1.902101% |
| D | 18611 | 1693 | 9.096771% |

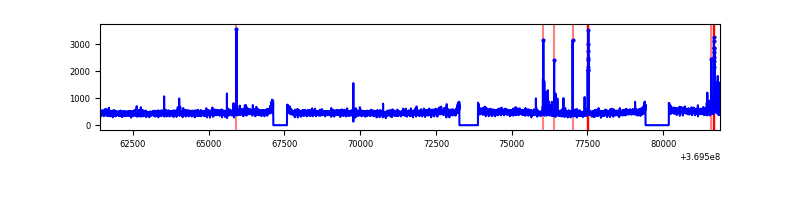

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20451 | 18614 | 21 | 21 | 0.10% | 0.11% |  |
| B | 20451 | 18614 | 39 | 39 | 0.19% | 0.21% |  |
| C | 20451 | 18614 | 11 | 11 | 0.05% | 0.06% |  |
| D | 20451 | 18613 | 1089 | 1089 | 5.32% | 5.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 6 | 160518 | 355.22 | 2221 | 2172 | 445.8 |
| A | 13 | 254 | 34657 | 72.87 | 2221 | 2172 | 445.8 |
| A | 13 | 6 | 30065 | 62.57 | 2221 | 2172 | 445.8 |
| B | 6 | 159 | 5141318 | 12360.03 | 2192 | 2137 | 415.8 |
| B | 0 | 190 | 361501 | 864.29 | 2192 | 2137 | 415.8 |
| B | 0 | 168 | 159250 | 377.87 | 2192 | 2137 | 415.8 |
| C | 14 | 238 | 375666 | 756.11 | 2127 | 2136 | 494.0 |
| C | 3 | 233 | 153969 | 307.35 | 2127 | 2136 | 494.0 |
| C | 0 | 10 | 92175 | 182.26 | 2127 | 2136 | 494.0 |
| D | 8 | 195 | 4626124 | 9536.59 | 2059 | 2002 | 484.9 |
| D | 7 | 38 | 1283892 | 2643.71 | 2059 | 2002 | 484.9 |
| D | 12 | 2 | 1110281 | 2285.67 | 2059 | 2002 | 484.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

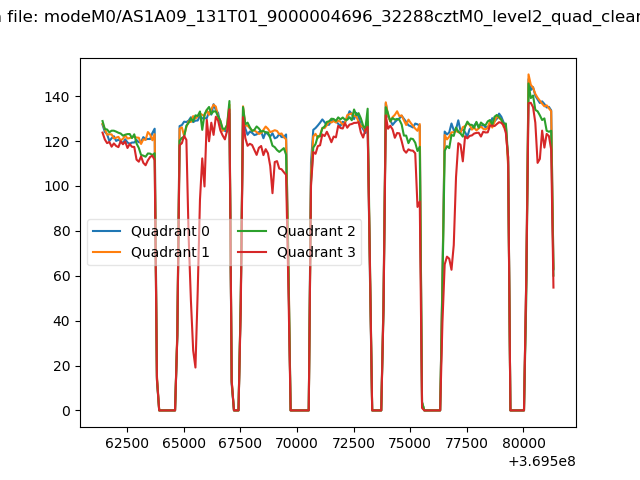

| Plot type | Count rate plots | Images |
|---|---|---|

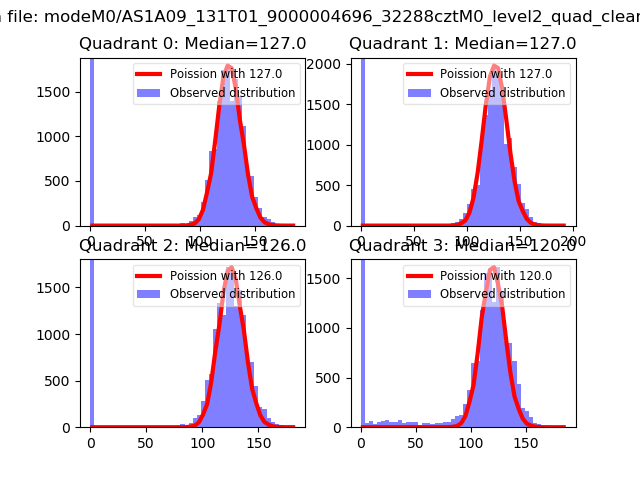

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

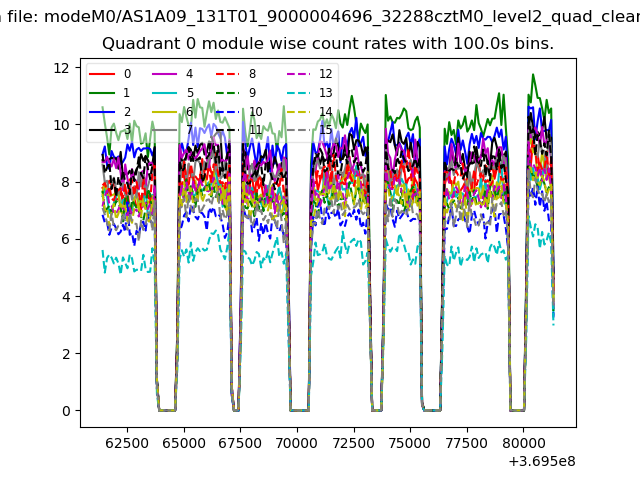

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

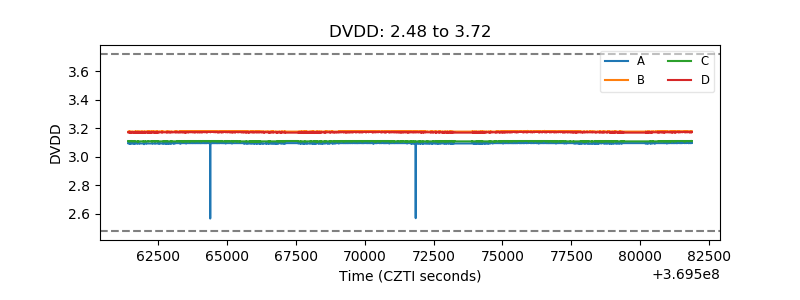

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

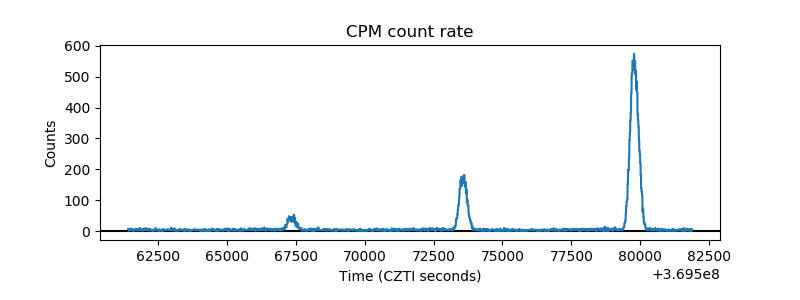

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

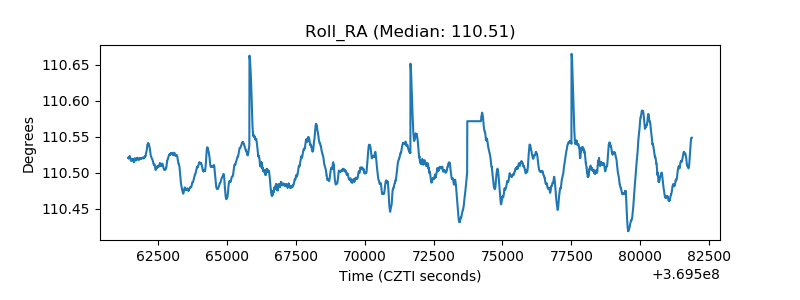

| _Roll_RA |  |

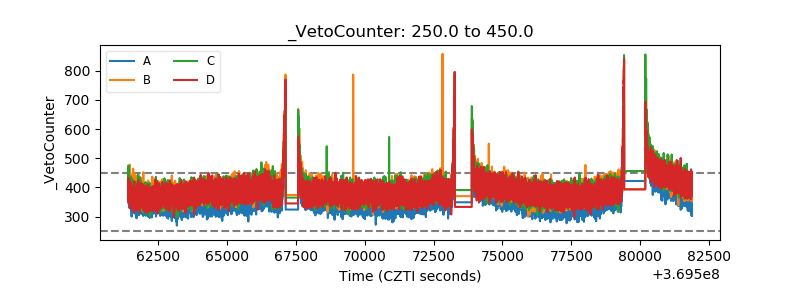

| Veto Counter |  |
