| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_005T01_9000004700_32296cztM0_level2.evt | modeM0/AS1A10_005T01_9000004700_32296cztM0_level2_quad_clean.evt |
| Size (bytes) | 618,840,000 | 81,944,640 |
| Size | 590.2 MB | 78.1 MB |
| Events in quadrant A | 3,423,315 | 539,839 |
| Events in quadrant B | 5,540,362 | 514,109 |
| Events in quadrant C | 3,769,499 | 473,788 |
| Events in quadrant D | 5,554,379 | 485,188 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14312 | 3 |
| B | 0 | 21138 | 2 |
| C | 0 | 15294 | 2 |
| D | 0 | 21133 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6713 | 76 | 1.132132% |
| B | 6713 | 159 | 2.368539% |
| C | 6713 | 184 | 2.740950% |
| D | 6713 | 175 | 2.606882% |

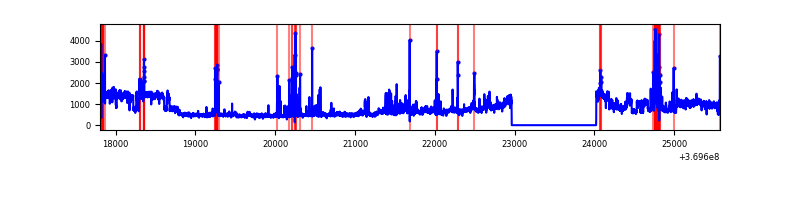

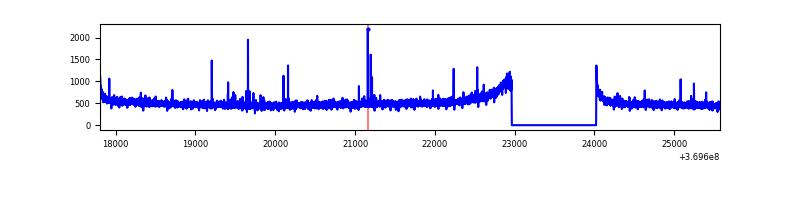

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7773 | 6714 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7773 | 6714 | 12 | 12 | 0.15% | 0.18% |  |
| C | 7773 | 6714 | 35 | 35 | 0.45% | 0.52% |  |
| D | 7773 | 6714 | 83 | 83 | 1.07% | 1.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 33002 | 184.45 | 870 | 855 | 174.3 |
| A | 13 | 6 | 22190 | 122.41 | 870 | 855 | 174.3 |
| A | 13 | 254 | 15357 | 83.21 | 870 | 855 | 174.3 |
| B | 6 | 159 | 1910165 | 11735.75 | 856 | 834 | 162.7 |
| B | 0 | 190 | 129966 | 793.71 | 856 | 834 | 162.7 |
| B | 5 | 172 | 49509 | 299.18 | 856 | 834 | 162.7 |
| C | 0 | 10 | 179144 | 935.28 | 816 | 824 | 190.7 |
| C | 3 | 233 | 171887 | 897.21 | 816 | 824 | 190.7 |
| C | 14 | 238 | 137495 | 716.83 | 816 | 824 | 190.7 |
| D | 8 | 195 | 1872704 | 9365.67 | 828 | 809 | 199.9 |
| D | 14 | 52 | 202337 | 1008.31 | 828 | 809 | 199.9 |
| D | 13 | 249 | 134985 | 671.32 | 828 | 809 | 199.9 |

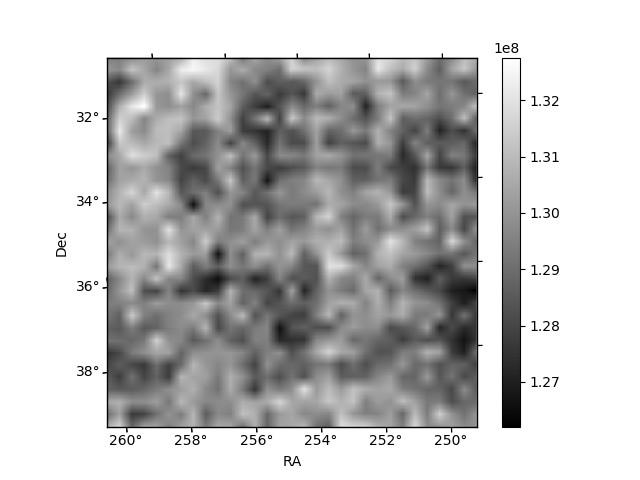

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

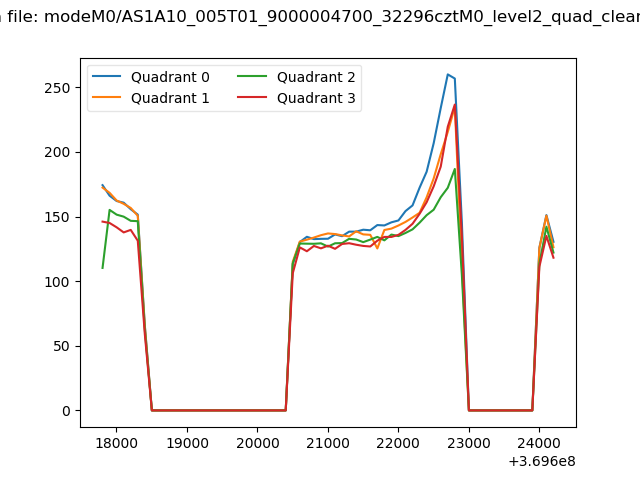

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

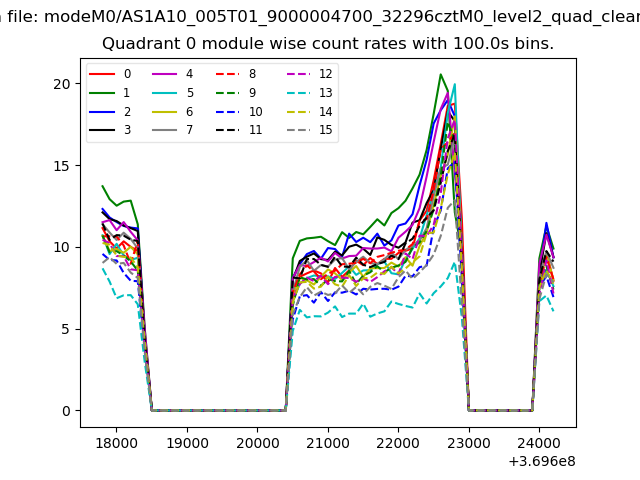

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

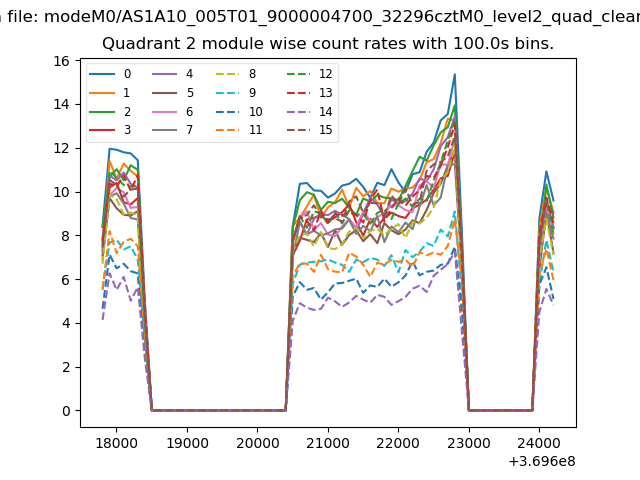

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

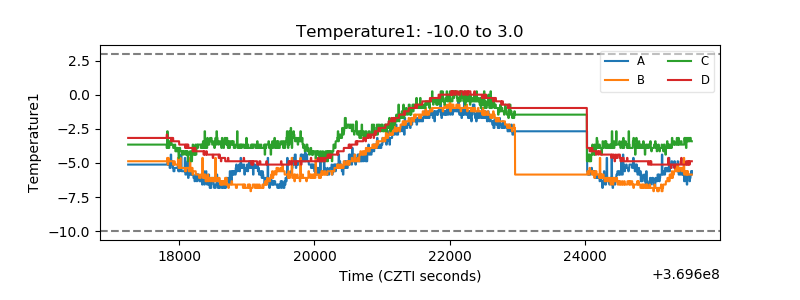

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

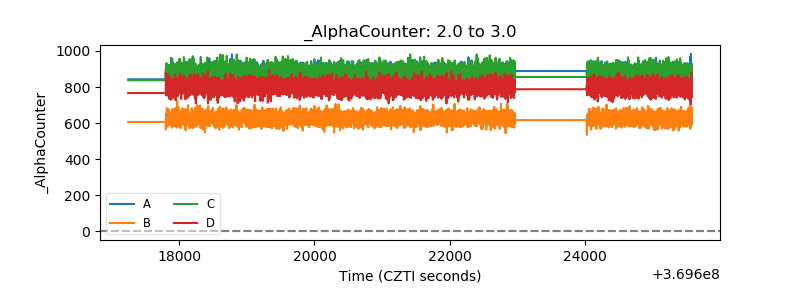

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
