| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_005T01_9000004700_32303cztM0_level2.evt | modeM0/AS1A10_005T01_9000004700_32303cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,691,896,320 | 248,382,720 |
| Size | 1.6 GB | 236.9 MB |
| Events in quadrant A | 8,998,351 | 1,639,323 |
| Events in quadrant B | 15,406,887 | 1,596,033 |
| Events in quadrant C | 11,079,485 | 1,516,493 |
| Events in quadrant D | 14,502,643 | 1,489,165 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38720 | 5 |
| B | 0 | 59286 | 4 |
| C | 0 | 44707 | 4 |
| D | 0 | 55516 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 380 | 0 |
| B | 0 | 380 | 0 |
| C | 0 | 380 | 0 |
| D | 0 | 380 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18604 | 300 | 1.612556% |
| B | 18604 | 577 | 3.101484% |
| C | 18604 | 914 | 4.912922% |
| D | 18604 | 805 | 4.327026% |

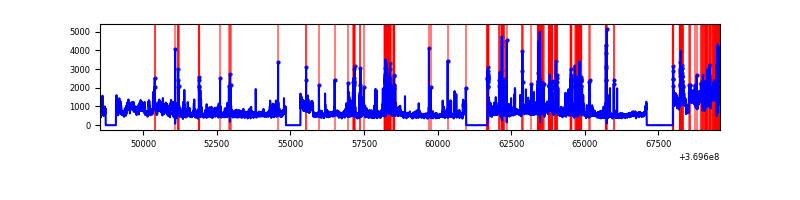

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21069 | 18608 | 9 | 9 | 0.04% | 0.05% |  |
| B | 21069 | 18608 | 86 | 86 | 0.41% | 0.46% |  |
| C | 21069 | 18608 | 108 | 108 | 0.51% | 0.58% |  |
| D | 21069 | 18608 | 441 | 441 | 2.09% | 2.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 6 | 159088 | 344.9 | 2269 | 2222 | 454.8 |
| A | 13 | 6 | 42287 | 88.09 | 2269 | 2222 | 454.8 |
| A | 13 | 254 | 36118 | 74.53 | 2269 | 2222 | 454.8 |
| B | 6 | 159 | 5283432 | 12544.17 | 2224 | 2171 | 421.0 |
| B | 0 | 190 | 758524 | 1796.51 | 2224 | 2171 | 421.0 |
| B | 5 | 172 | 265608 | 625.72 | 2224 | 2171 | 421.0 |
| C | 3 | 233 | 1313129 | 2615.73 | 2135 | 2145 | 501.2 |
| C | 14 | 238 | 448539 | 890.66 | 2135 | 2145 | 501.2 |
| C | 0 | 10 | 416272 | 826.28 | 2135 | 2145 | 501.2 |
| D | 8 | 195 | 4112562 | 7864.06 | 2177 | 2114 | 522.7 |
| D | 12 | 233 | 366171 | 696.51 | 2177 | 2114 | 522.7 |
| D | 12 | 6 | 307750 | 584.74 | 2177 | 2114 | 522.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

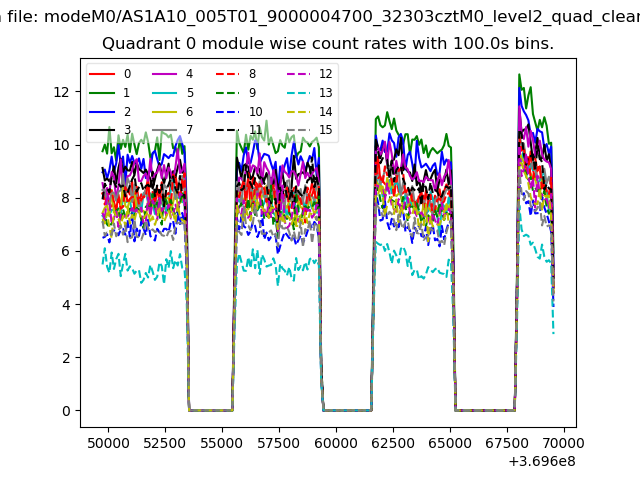

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

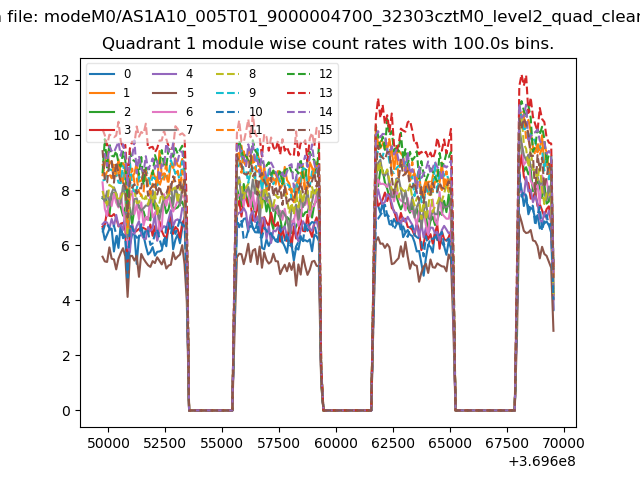

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

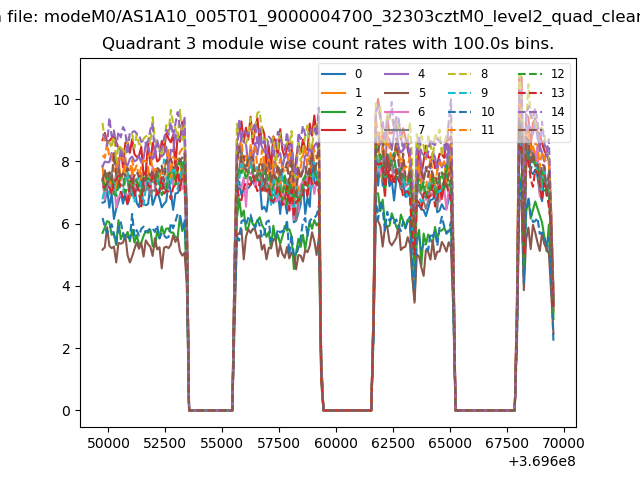

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

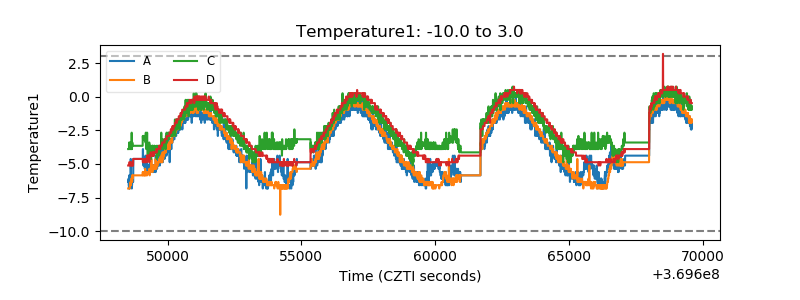

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

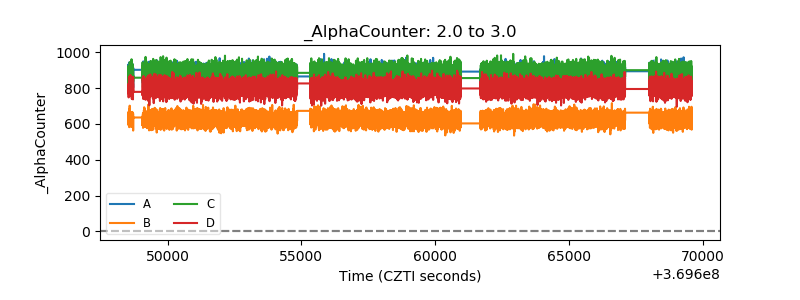

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

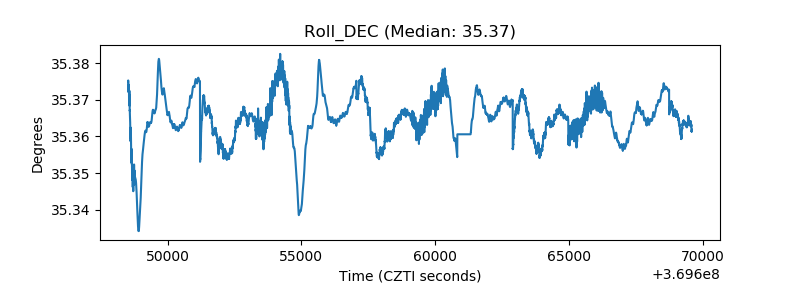

| _Roll_DEC |  |
| _Roll_RA |  |

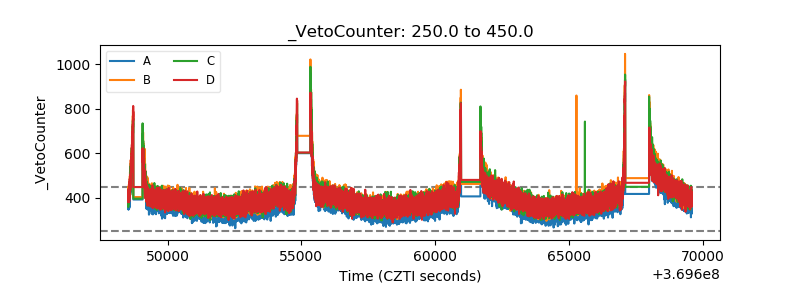

| Veto Counter |  |
