| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_005T01_9000004700_32309cztM0_level2.evt | modeM0/AS1A10_005T01_9000004700_32309cztM0_level2_quad_clean.evt |
| Size (bytes) | 651,309,120 | 89,853,120 |
| Size | 621.1 MB | 85.7 MB |
| Events in quadrant A | 3,283,965 | 599,019 |
| Events in quadrant B | 5,586,516 | 594,809 |
| Events in quadrant C | 4,130,098 | 557,053 |
| Events in quadrant D | 6,302,070 | 533,199 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13527 | 3 |
| B | 0 | 21171 | 2 |
| C | 0 | 16149 | 2 |
| D | 0 | 23207 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6255 | 34 | 0.543565% |
| B | 6255 | 174 | 2.781775% |
| C | 6255 | 342 | 5.467626% |
| D | 6255 | 350 | 5.595524% |

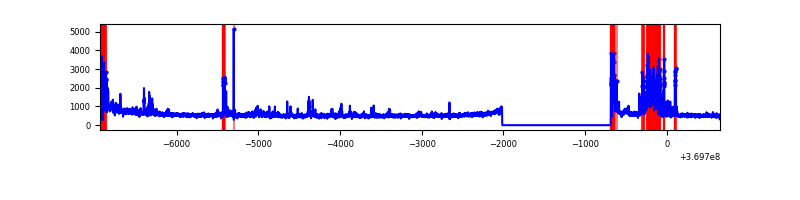

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7585 | 6256 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7585 | 6256 | 27 | 27 | 0.36% | 0.43% |  |
| C | 7585 | 6256 | 159 | 159 | 2.10% | 2.54% |  |
| D | 7585 | 6256 | 276 | 276 | 3.64% | 4.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 6 | 61665 | 375.43 | 813 | 797 | 162.1 |
| A | 12 | 189 | 41213 | 249.28 | 813 | 797 | 162.1 |
| A | 12 | 96 | 20732 | 122.95 | 813 | 797 | 162.1 |
| B | 6 | 159 | 1806419 | 11939.98 | 811 | 793 | 151.2 |
| B | 0 | 168 | 389669 | 2571.5 | 811 | 793 | 151.2 |
| B | 5 | 172 | 113792 | 747.22 | 811 | 793 | 151.2 |
| C | 0 | 10 | 377789 | 2096.33 | 774 | 780 | 179.8 |
| C | 15 | 208 | 352986 | 1958.41 | 774 | 780 | 179.8 |
| C | 3 | 233 | 162170 | 897.4 | 774 | 780 | 179.8 |
| D | 8 | 195 | 2555079 | 13981.14 | 771 | 753 | 182.7 |
| D | 13 | 249 | 359085 | 1961.34 | 771 | 753 | 182.7 |
| D | 14 | 52 | 253221 | 1381.89 | 771 | 753 | 182.7 |

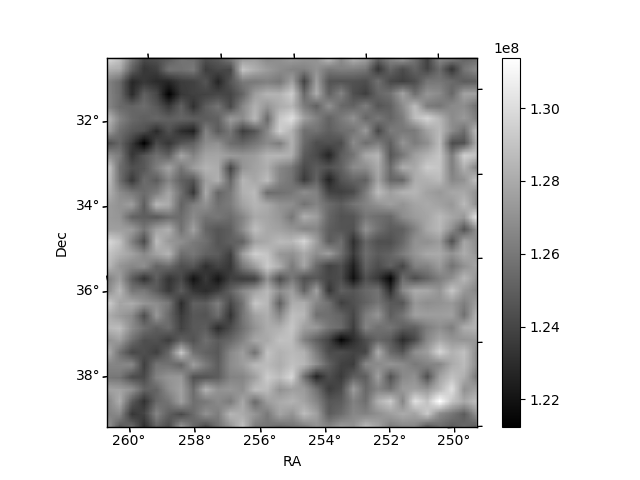

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

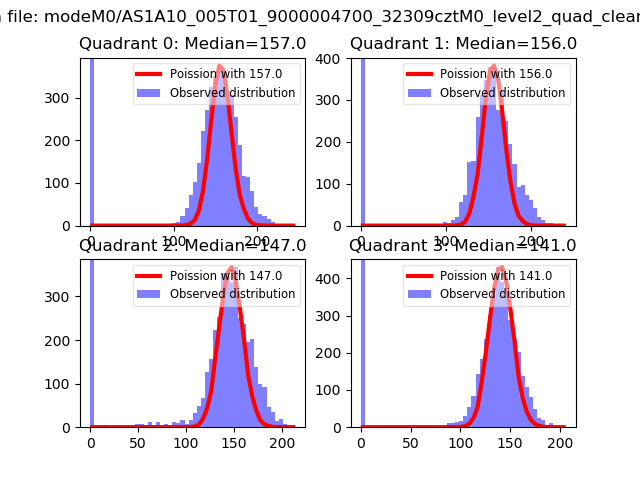

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

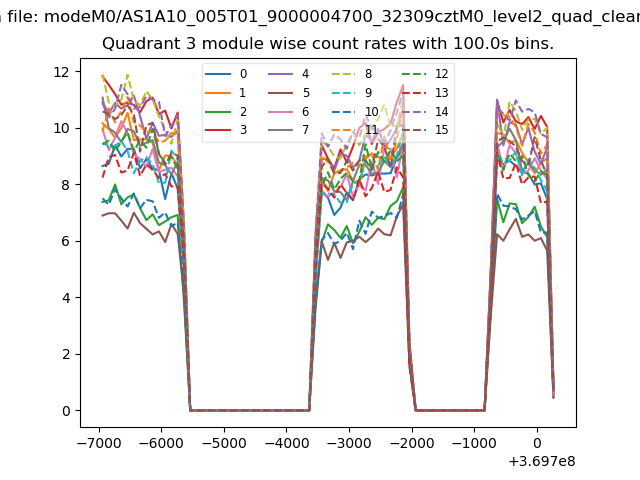

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

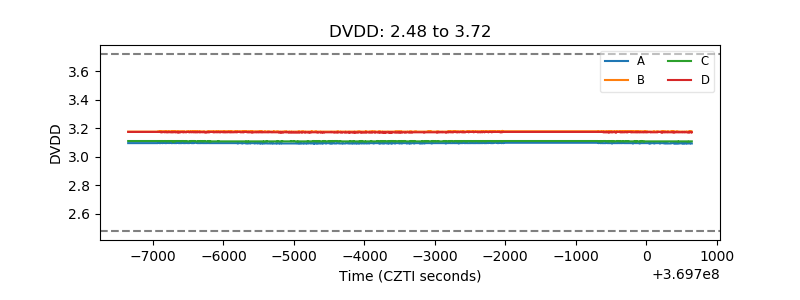

| D_VDD |  |

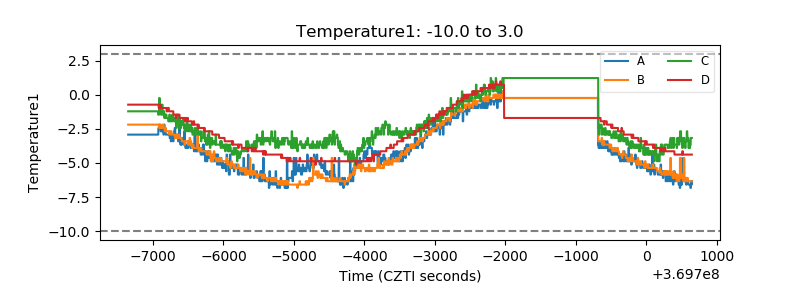

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

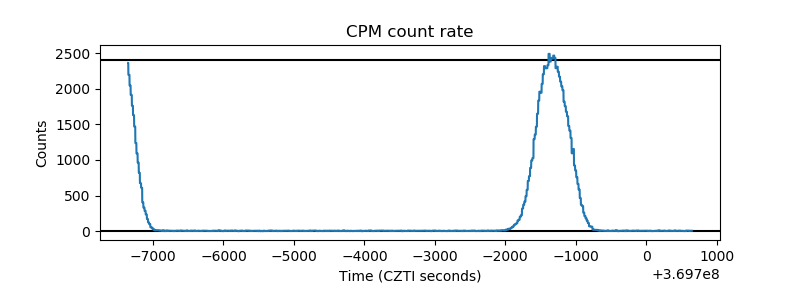

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

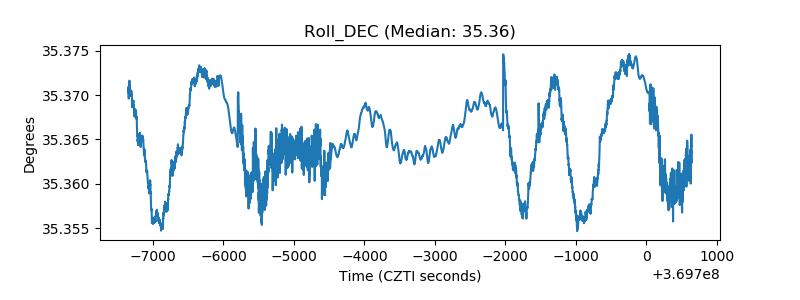

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
