| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_005T01_9000004700_32314cztM0_level2.evt | modeM0/AS1A10_005T01_9000004700_32314cztM0_level2_quad_clean.evt |
| Size (bytes) | 658,100,160 | 88,312,320 |
| Size | 627.6 MB | 84.2 MB |
| Events in quadrant A | 3,612,698 | 559,059 |
| Events in quadrant B | 5,812,169 | 549,999 |
| Events in quadrant C | 5,026,805 | 517,797 |
| Events in quadrant D | 4,967,033 | 520,763 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15554 | 2 |
| B | 0 | 22910 | 1 |
| C | 0 | 19918 | 1 |
| D | 0 | 20092 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7566 | 170 | 2.246894% |
| B | 7566 | 271 | 3.581813% |
| C | 7566 | 603 | 7.969865% |
| D | 7566 | 227 | 3.000264% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7786 | 7567 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7786 | 7567 | 4 | 4 | 0.05% | 0.05% |  |
| C | 7786 | 7567 | 57 | 57 | 0.73% | 0.75% |  |
| D | 7786 | 7567 | 66 | 66 | 0.85% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 35167 | 185.3 | 913 | 893 | 185.0 |
| A | 13 | 254 | 14617 | 74.2 | 913 | 893 | 185.0 |
| A | 13 | 6 | 14084 | 71.32 | 913 | 893 | 185.0 |
| B | 6 | 159 | 2123536 | 12167.36 | 904 | 878 | 174.5 |
| B | 5 | 172 | 47147 | 265.22 | 904 | 878 | 174.5 |
| B | 0 | 190 | 34038 | 190.08 | 904 | 878 | 174.5 |
| C | 3 | 233 | 1243797 | 6123.91 | 859 | 866 | 203.0 |
| C | 14 | 238 | 223040 | 1094.65 | 859 | 866 | 203.0 |
| C | 14 | 254 | 117380 | 574.06 | 859 | 866 | 203.0 |
| D | 8 | 195 | 1100371 | 5192.82 | 883 | 858 | 211.7 |
| D | 14 | 52 | 161287 | 757.68 | 883 | 858 | 211.7 |
| D | 13 | 249 | 142229 | 667.67 | 883 | 858 | 211.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

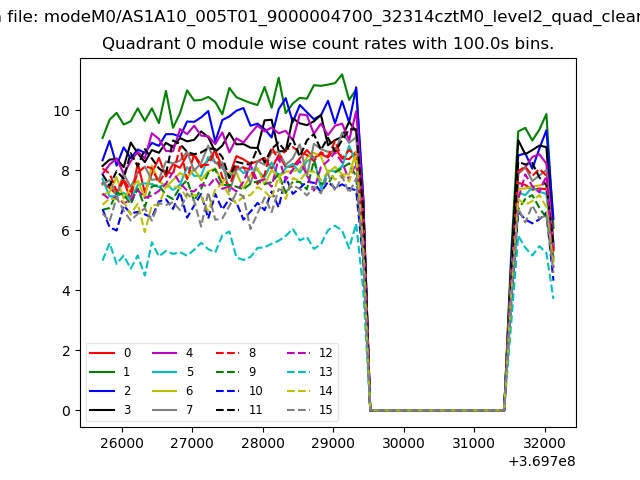

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

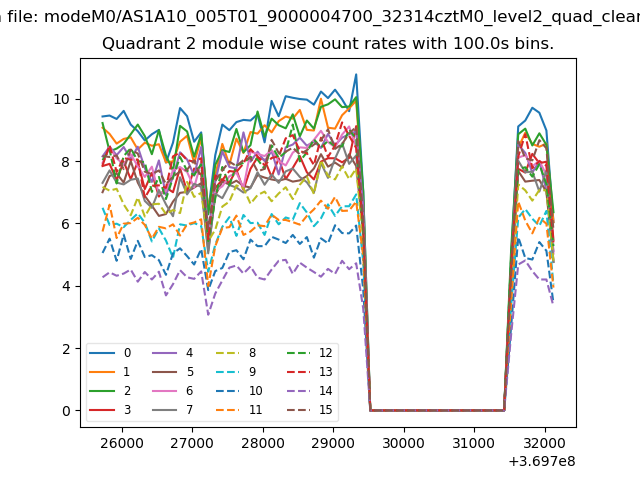

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

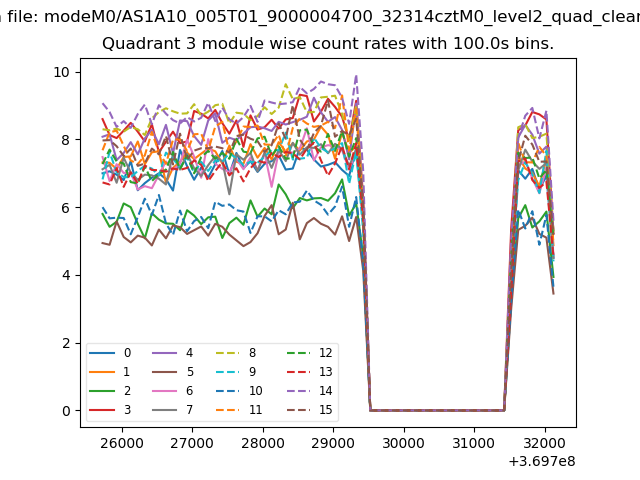

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

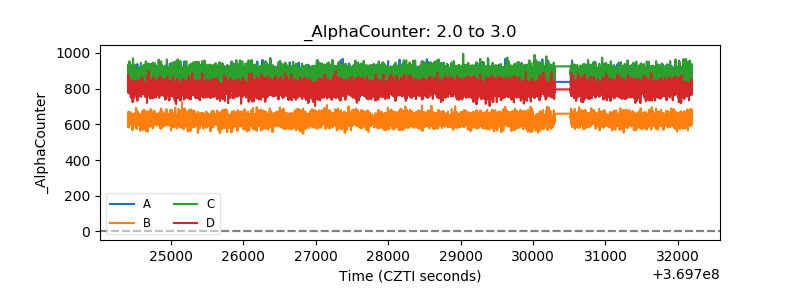

| Alpha Counter |  |

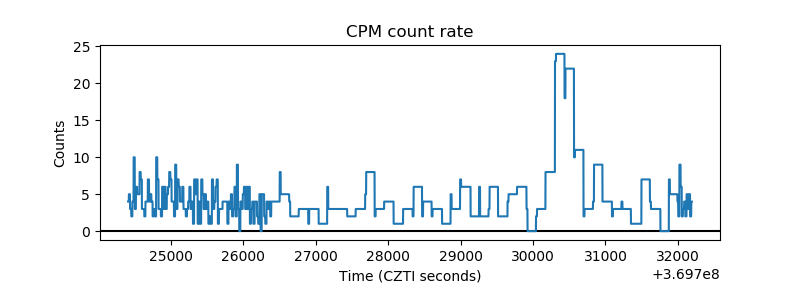

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

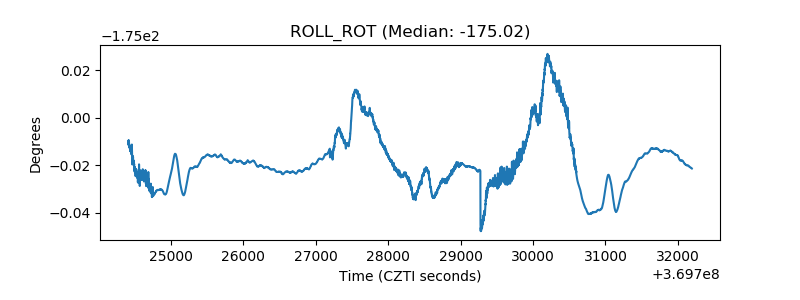

| _ROLL_ROT |  |
| _Roll_DEC |  |

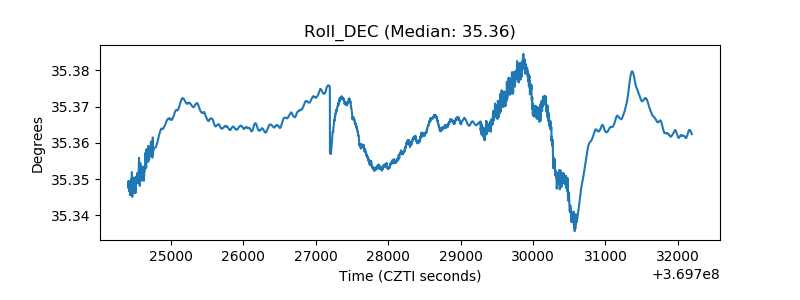

| _Roll_RA |  |

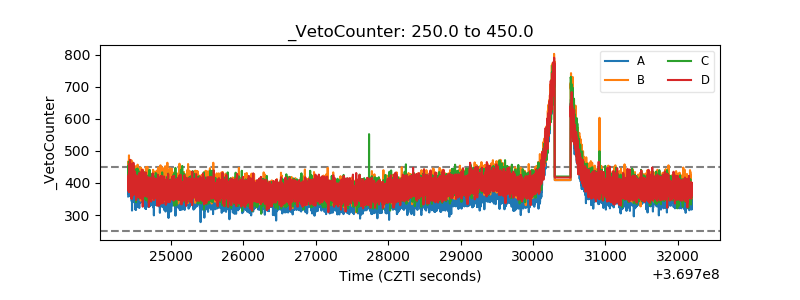

| Veto Counter |  |
